Chapter 7 Optional AccessoriesCP2000

7-115

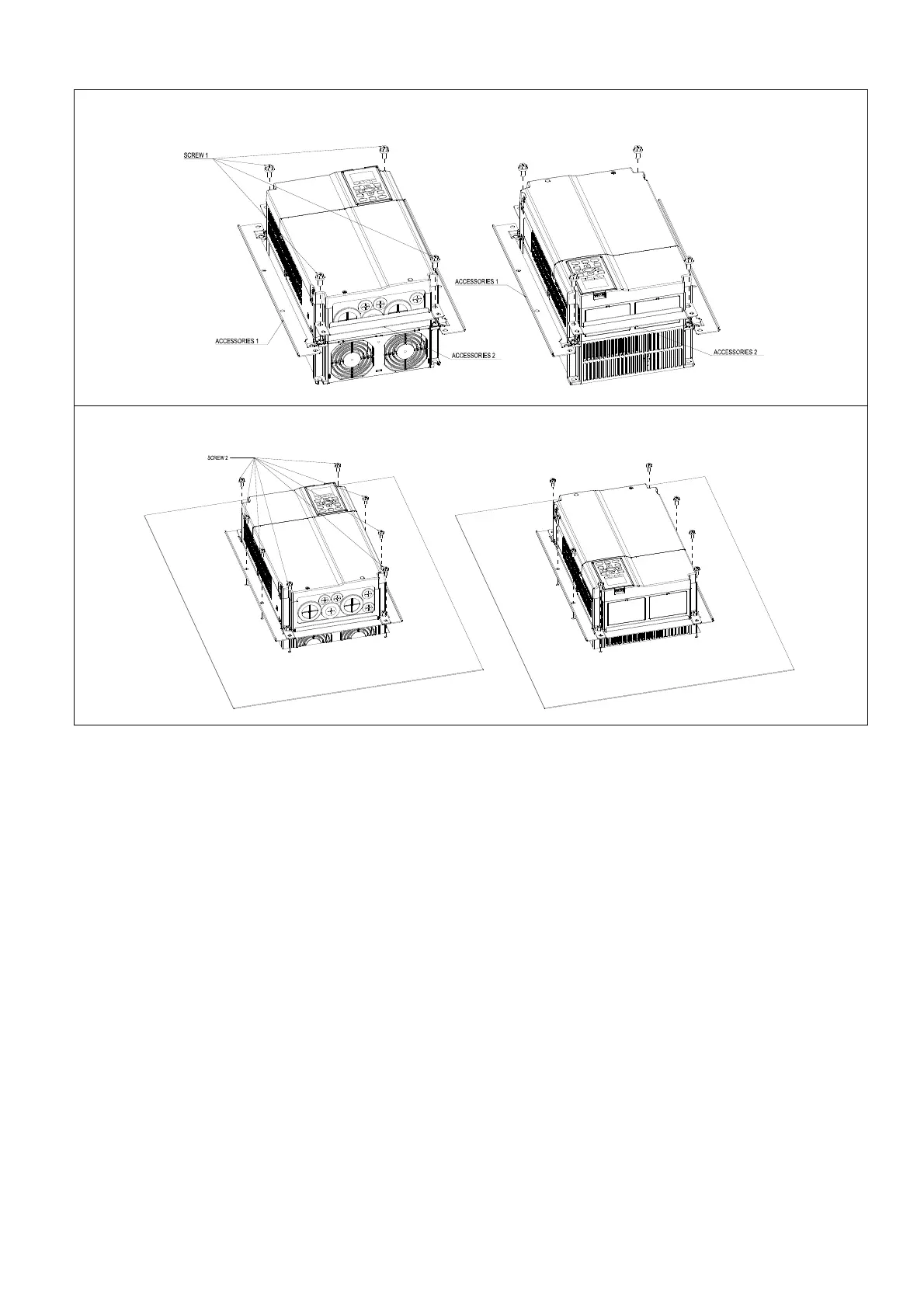

『MKC-CFM』Installation

1. Install accessory 1 & 2 by fastening 4 of the screw 1 (M8). Screw torque: 50–55 kg-cm / [43.4–47.7 Ib-in.] /

[4.9–5.4 Nm] (As shown in the following figure)

2. Plate installation, place 8 of the screw 2 (M6) through Accessory 1&2 and the plate, then fasten the screws.

Screw torque: 25–30 kg-cm / [21.7–26 Ib-in.] / [2.5–2.9 Nm] (As shown in the following figure)
