Chapter 3 Unpacking
CP2000
3-16

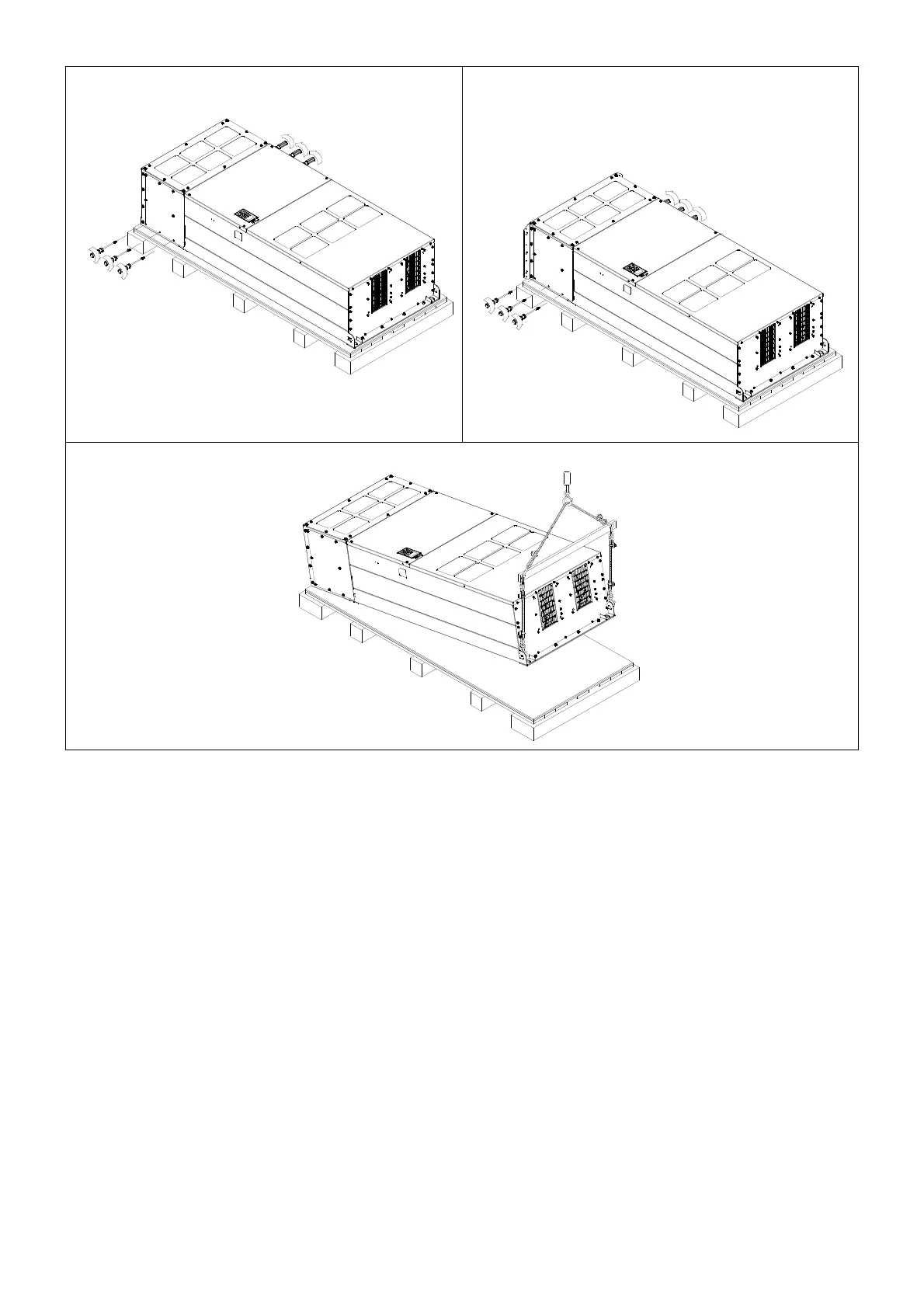

Fasten
the
six
M6
screws
back,
see
the
figure
below
.
Fasten
the
six
M6
screws
back,
see
the
figure
below
.
T
orque: 35–45 kg-cm / [30.8–39.06 lb-in] /
[3.4–4.4 Nm]
Lift the drive by hooking the lif
ting hole. It is now ready for
installation.
Figure 3-55
Figure 3-57
Figure 3-58
56
58
