Delta VFD110ED43S User Manual

12 Descriptions of Parameter Settings | VFD-ED
12-06-3

Over-torque Detection Level (OT1)
Control Mode VF VFPG SVC FOCPG FOCPM Default: 150
Settings 10–250% (rated current of the motor drive)

Over-torque Detection Time (OT1)
Control Mode VF VFPG SVC FOCPG FOCPM Default: 0.1
Settings 0.1–60.0 sec.

Over-torque Detection (OT2)
Control Mode VF VFPG SVC FOCPG FOCPM Default: 0
Settings 0: Over-torque detection disabled
1: Over-torque detection during constant speed operation, continue to operate after
detection
2: Over-torque detection during constant speed operation, stop operating after
detection
3: Over-torque detection during operation, continue to operate after detection
4: Over-torque detection during operation, stop operating after detection

Over-torque Detection Level (OT2)
Control Mode VF VFPG SVC FOCPG FOCPM Default: 150
Settings 10–250% (rated current of the motor drive)

Over-torque Detection Time (OT2)
Control Mode VF VFPG SVC FOCPG FOCPM Default: 0.1
Settings 0.1–60.0 sec.

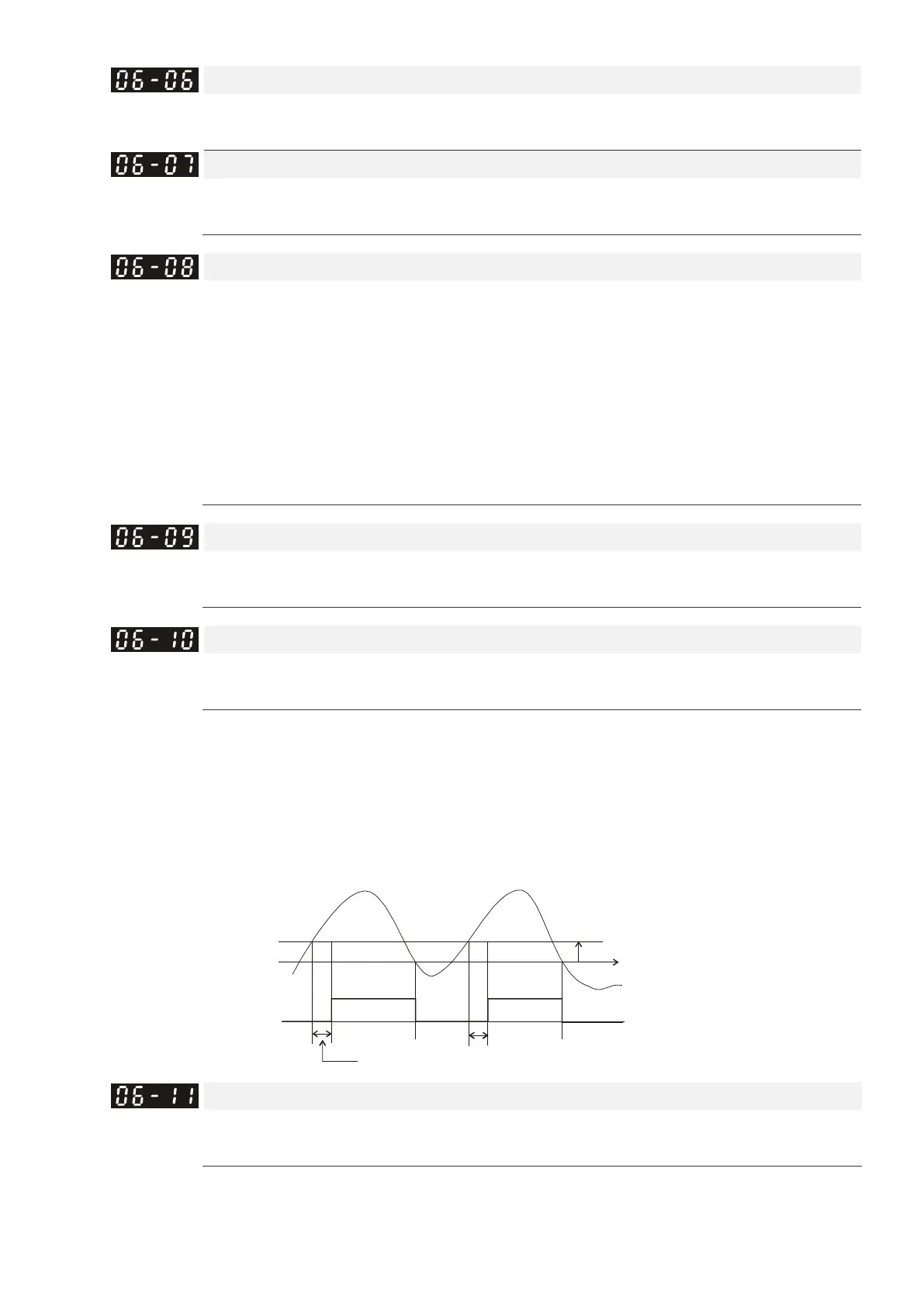

 Pr.06-05 and Pr.06-08 determine the drive’s operating mode after over-torque is detected.
 Over-torque is detected according to the following method: if the output current exceeds the over-torque
detection level (Pr.06-06, default is 150%) and also exceeds the over-torque detection time (Pr.06-07,
default is 0.1 second), the keypad displays the fault code “OT1/OT2”. If using a multi-function output
terminal for over-torque detection, the output is ON. Refer to Pr.02-11–02-22 for details.
5%
Pr.06-06,
Pr.06-09
Pr.06-07, 06-10
current

Current Limit
Control Mode FOCPG FOCPM Default: 200
Settings 0–250% (rated current of the motor drive)
 Sets the drive’s maximum output current.
