Delta VFD110ED43S User Manual

Chapter 6 Optional Accessories | VFD-ED
6-23

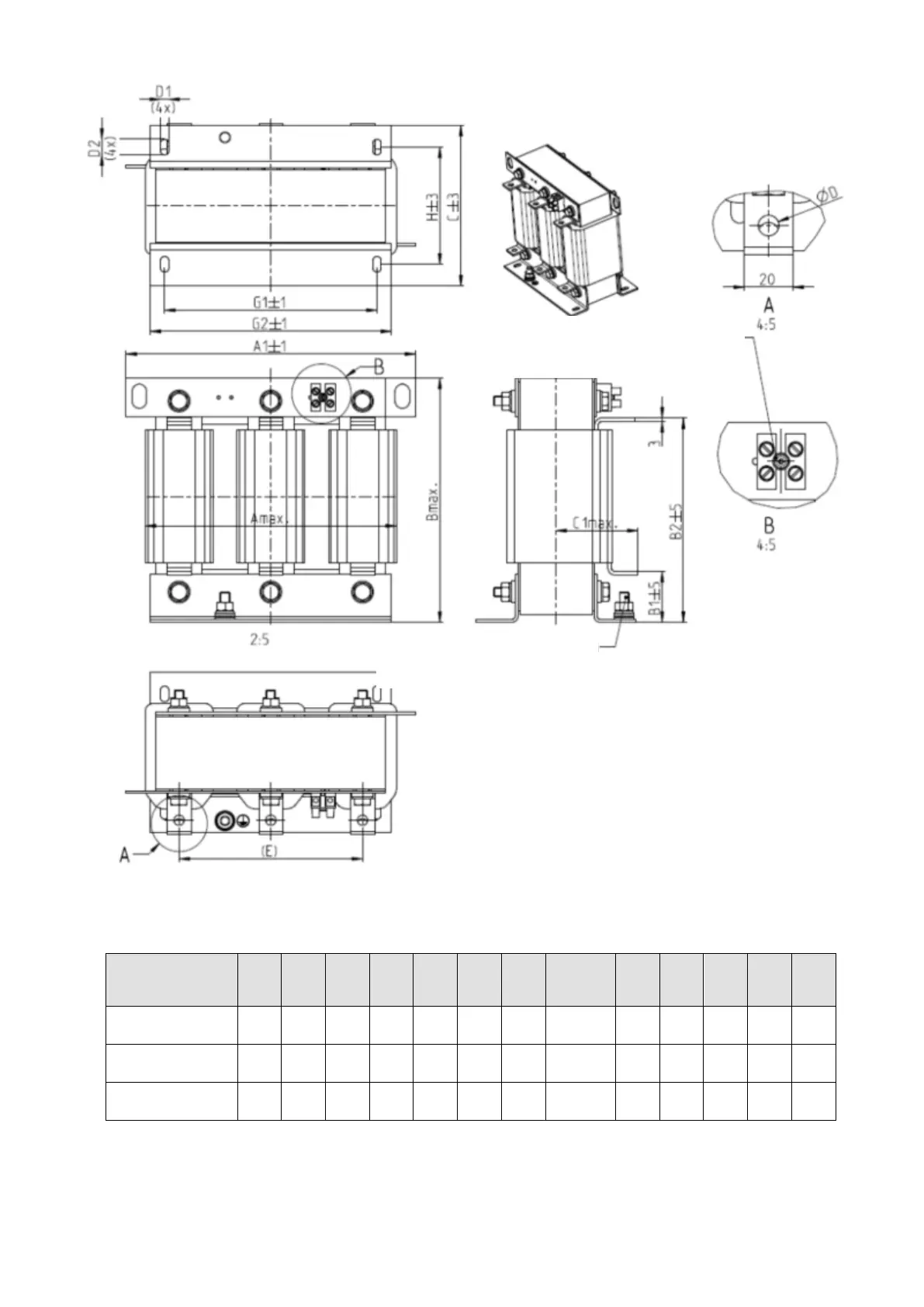

Figure 6-18
Unit: mm
Input Reactors
Delta Part #
A A1 B B1 B2 C D D1*D2 E C1 G1 G2 H
DR073AP334 228 240 215 40 170 133 8.5 7*13 152 75 176 200 97
DR091AP267 228 240 245 40 195 133 8.8 7*13 152 90 176 200 97
DR110AP221 228 240 245 40 195 138 8.5 7*13 152 75 176 200 102
Table 6-22
1:5 Terminal gauge: 4 mm
2
Tightening torque: 0.8–1.0 Nm
PE M8 x 23
Tightening torque: 6±0.3 Nm
