Delta VFD185B43A User Manual

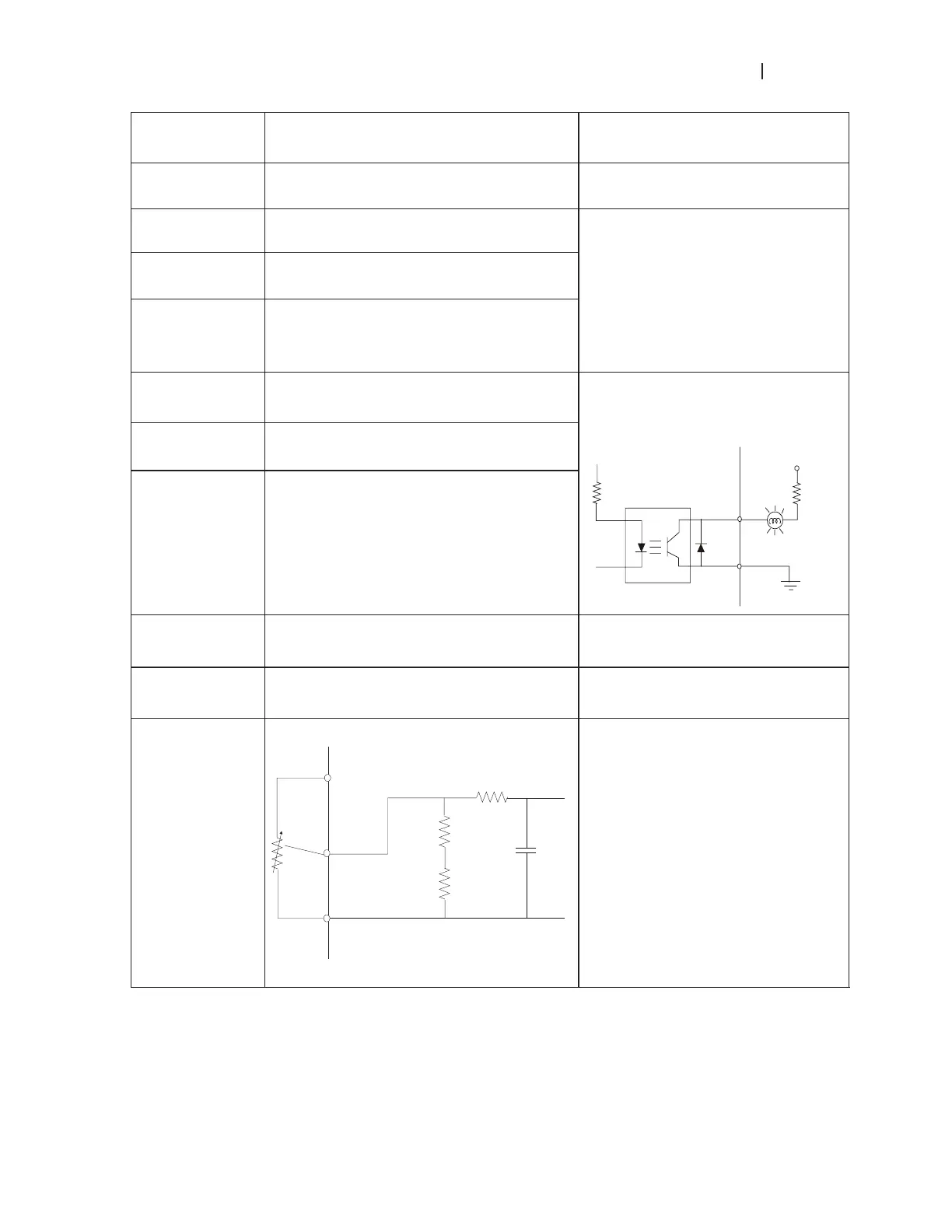

Chapter 2 Installation and Wiring_VFD-B Series
Revision 10/2005, BE13, SW V4.08 2-23
Terminal Symbol Terminal Function
Factory Settings (SINK)
ON: Connect to DCM
DCM Digital Signal Common
Common for digital inputs and used
for SINK mode.
RA Multi-function Relay output (N.O.) a
RB Multi-function Relay output (N.C.) b
RC Multi-function Relay common
Resistive Load:
5A(N.O.)/3A(N.C.) 240VAC
5A(N.O.)/3A(N.C.) 24VDC
Inductive Load:
1.5A(N.O.)/0.5A(N.C.) 240VAC
1.5A(N.O.)/0.5A(N.C.) 24VDC
Refer to Pr.03-00 for programming
MO1 Multi-function Output 1 (Photocoupler)
MO2 Multi-function Output 2 (Photocoupler)
MO3 Multi-function Output 3 (Photocoupler)
Maximum 48VDC, 50mA
Refer to Pr.03-01 to Pr.03-03 for
programming
MO1~MO3-DCM
MO1~MO3
MCM
Internal Circuit
Max: 48Vdc
50mA
MCM Multi-function output common Common for Multi-function Outputs
+10V Potentiometer power supply +10VDC 20mA
AVI
Analog voltage Input
ACM
AVI
+10V
Internal Circuit
AVI circuit
Impedance: 47kȍ
Resolution: 10 bits
Range: 0 ~ 10VDC =
0 ~ Max. Output
Frequency (Pr.01-
00)
Selection: Pr.02-00, Pr.02-13,
Pr.10-00
Set-up: Pr.04-00 ~ Pr.04-03

Delta VFD185B43A Specifications

General

Brand	Delta
Model	VFD185B43A
Category	DC Drives
Language	English
