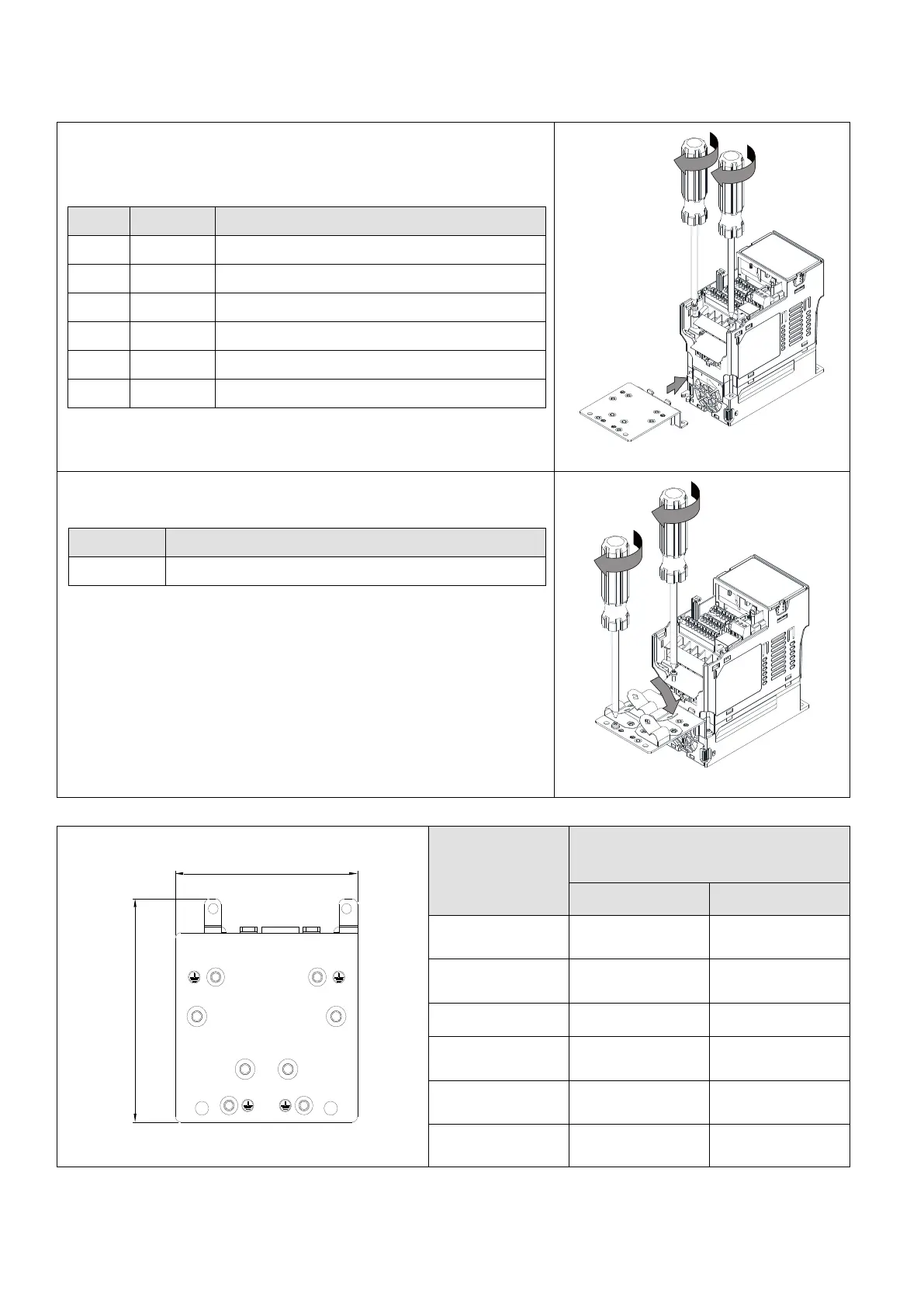

Installation
(This example uses Frame A model)
1. As shown in the right figure, fix the shield plate on the AC
motor drive.
Torque value:
Frame
Screw
Torque
A
M3.5
6–8 kg-cm / (5.2–6.9 lb-in.) / (0.59–0.78 Nm)
B
M4
6–8 kg-cm / (5.2–6.9 lb-in.) / (0.59–0.78 Nm)
C
M4
6–8 kg-cm / (5.2–6.9 lb-in.) / (0.59–0.78 Nm)
D
M3
4–6 kg-cm / (3.5–5.2 lb-in.) / (0.39–0.59 Nm)
E
M3
4–6 kg-cm / (3.5–5.2 lb-in.) / (0.39–0.59 Nm)
F
M4
6–8 kg-cm / (5.2–6.9 lb-in.) / (0.59–0.78 Nm)
Table 7-50
Figure 7-37
2. Select a suitable R-clip according to the wire gauge used,
and then fix the R-clip on the shield plate.
Screw
Torque
M4
6–8 kg-cm / (5.2–6.9 lb-in.) / (0.59–0.78 Nm)
Table 7-51
Figure 7-38
Dimensions of EMC Shield Plate
Figure 7-39
Model
Dimensions of Shield Plate
Unit: mm (inch)
a
b
MKM-EPA
69.3 (2.73)
80.0 (3.15)
MKM-EPB
67.7 (2.67)
79.7 (3.14)
MKM-EPC
78.0 (3.07)
91.0 (3.58)
MKM-EPD
103.4 (4.07)
97.0 (3.82)
MKM-EPE
124.3 (4.89)
77.4 (3.05)
MKM-EPF
168.0 (6.61)
80.0 (3.15)
Table 7-52
