Chapter 2 DimensionsMS300
15
2-6 Frame F
F1: VFD65AMS23ANSAA; VFD65AMS23ENSAA; VFD38AMS43ANSAA; VFD38AMS43ENSAA;
VFD45AMS43ANSAA; VFD45AMS43ENSAA
F2: VFD38AMS43AFSAA; VFD45AMS43AFSAA

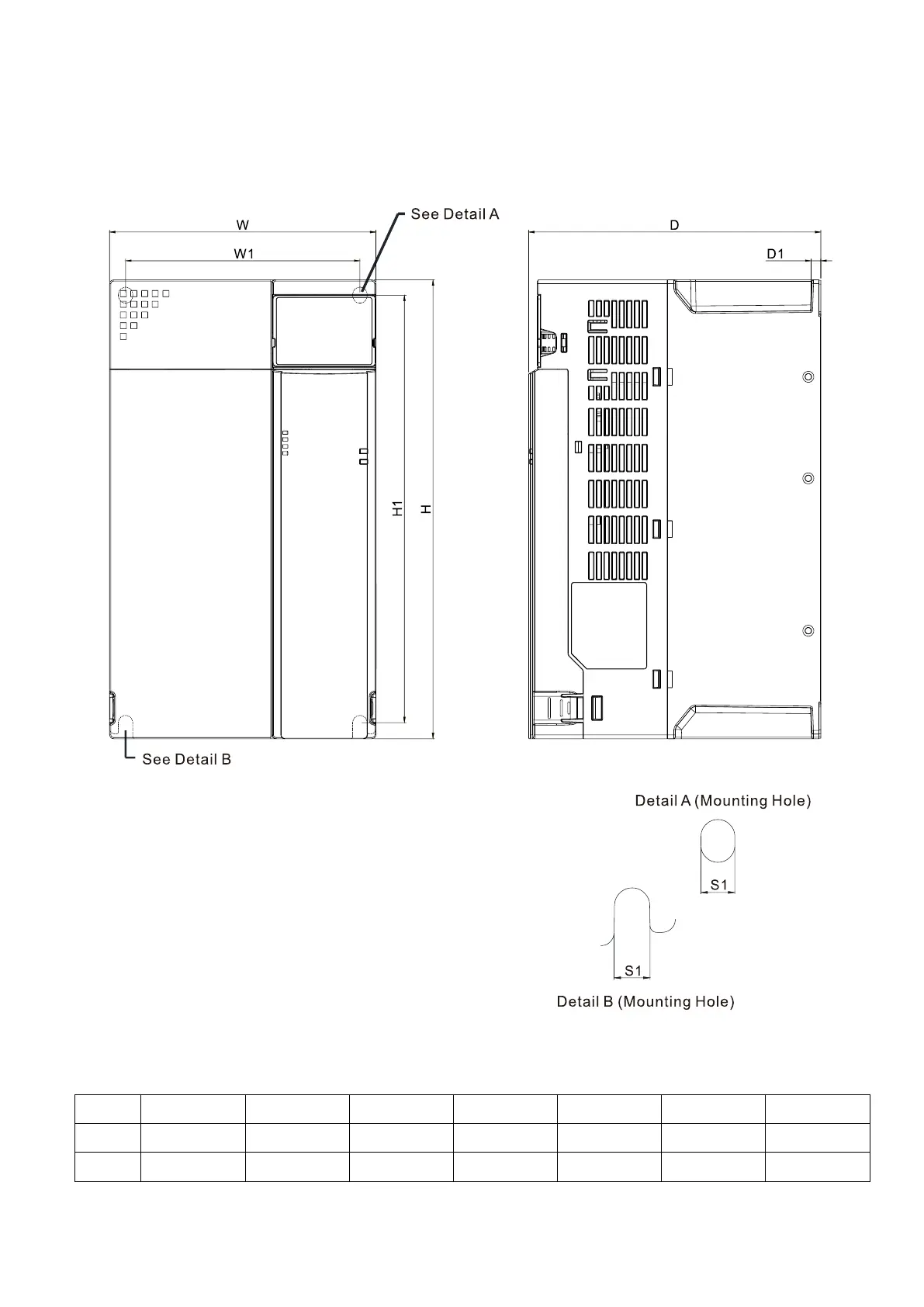

Figure 2-6
Unit: mm (inch)
Frame
W
H
D
W1
H1
D1
S1
F1
175.0 (6.89)
300.0 (11.81)
192.0 (7.56)
154.0 (6.06)
279.5 (11.00)
6.5 (0.26)
8.4 (0.33)
F2
175.0 (6.89)
300.0 (11.81)
244.0 (9.61)
154.0 (6.06)
279.5 (11.00)
6.5 (0.26)
8.4 (0.33)
Table 2-6
