Delta VFD2A7MS43ANSAA User Manual

Chapter 7 Optional AccessoriesMS300
118

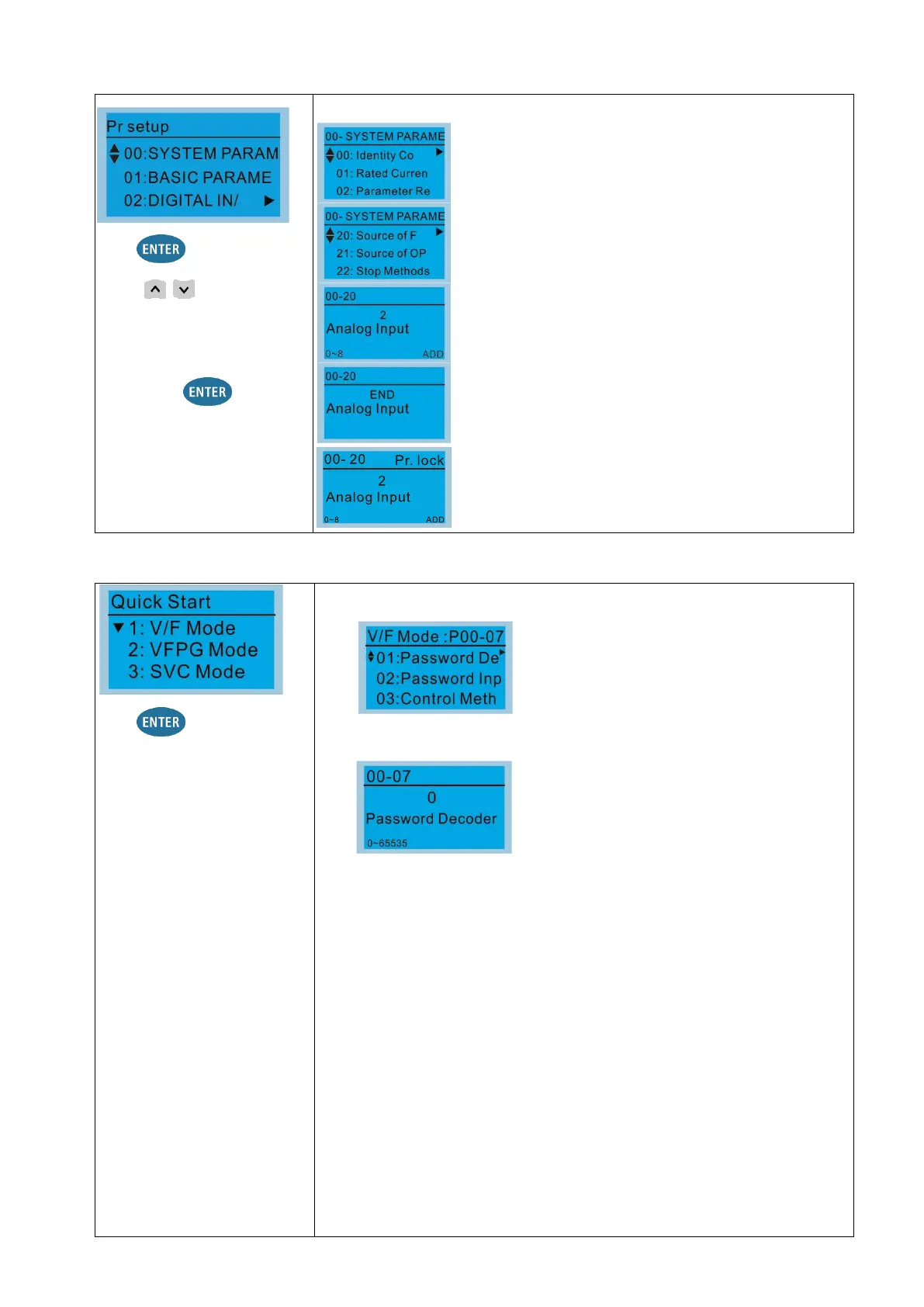

1. Parameter Setup
Press to select.
Press to select the
parameter group.
Once you select a parameter
group, press to go into
that group.
Example: Setup source for the master frequency command.
In the Group 00 Motor Drive Parameter, use the Up/Down
keys to select parameter 20: Auto Frequency Command.
Press ENTER to go to this parameter’s setting menu.
Use the Up/Down keys to choose a setting.
For example: choose 2 Analog Input, and then press
ENTER key.
After you press ENTER, END is displayed which means
that the parameter setting is done.
NOTE: When parameter lock / password protection
function is enabled, it displays “Pr. lock” on the upper
right corner of the keypad. The parameter cannot be
written or is protected by the password under this
circumstances.
2. Quick Start
Press to select.
Quick Start:
1. V/F Mode
2. SVC Mode
3. My Mode
1. VF Mode
01:Password Decoder
Items
1. Parameter protection password input
(Pr.00-07)
2. Parameter protection password setting
(Pr.00-08)
3. Control mode (Pr.00-10)
4. Speed control mode (Pr.00-11)
5. Load selection (Pr.00-16)
6. Carrier frequency (Pr.00-17)
7. Master frequency command (AUTO) source
(Pr.00-20)
8. Operation command (AUTO) source
(Pr.00-21)
9. Stop method (Pr.00-22)
10. Digital keypad STOP function (Pr.00-32)
11. Max. operation frequency (Pr.01-00)
12. Output frequency of motor 1 (Pr.01-01)
13. Output voltage of motor 1 (Pr.01-02)
14. Mid-point frequency 1 of motor 1 (Pr.01-03)
15. Mid-point voltage 1 of motor 1 (Pr.01-04)
16. Mid-point frequency 2 of motor 1 (Pr.01-05)
17. Mid-point voltage 2 of motor 1 (Pr.01-06)
18. Min. output frequency of motor 1 (Pr.01-07)
19. Min. output voltage of motor 1 (Pr.01-08)
20. Output frequency upper limit (Pr.01-10)
21. Output frequency lower limit (Pr.01-11)
22. Acceleration time 1 (Pr.01-12)
23. Deceleration time 1 (Pr.01-13)
24. Over-voltage stall prevention (Pr.06-01)
25. Derating protection (Pr.06-55)
26. Software brake level (Pr.07-00)
27. Speed tracking during start-up (Pr.07-12)
28. Emergency stop (EF) & force to stop
selection (Pr.07-20)
29. Torque command filter time (Pr.07-24)
