Chapter 7 Optional AccessoriesMS300
129
TPEditor
Download TPEditor software at Delta website. Select TPEditor version 1.60
or later. Refer to the installation instruction for TPEditor in Section 7-14-3.

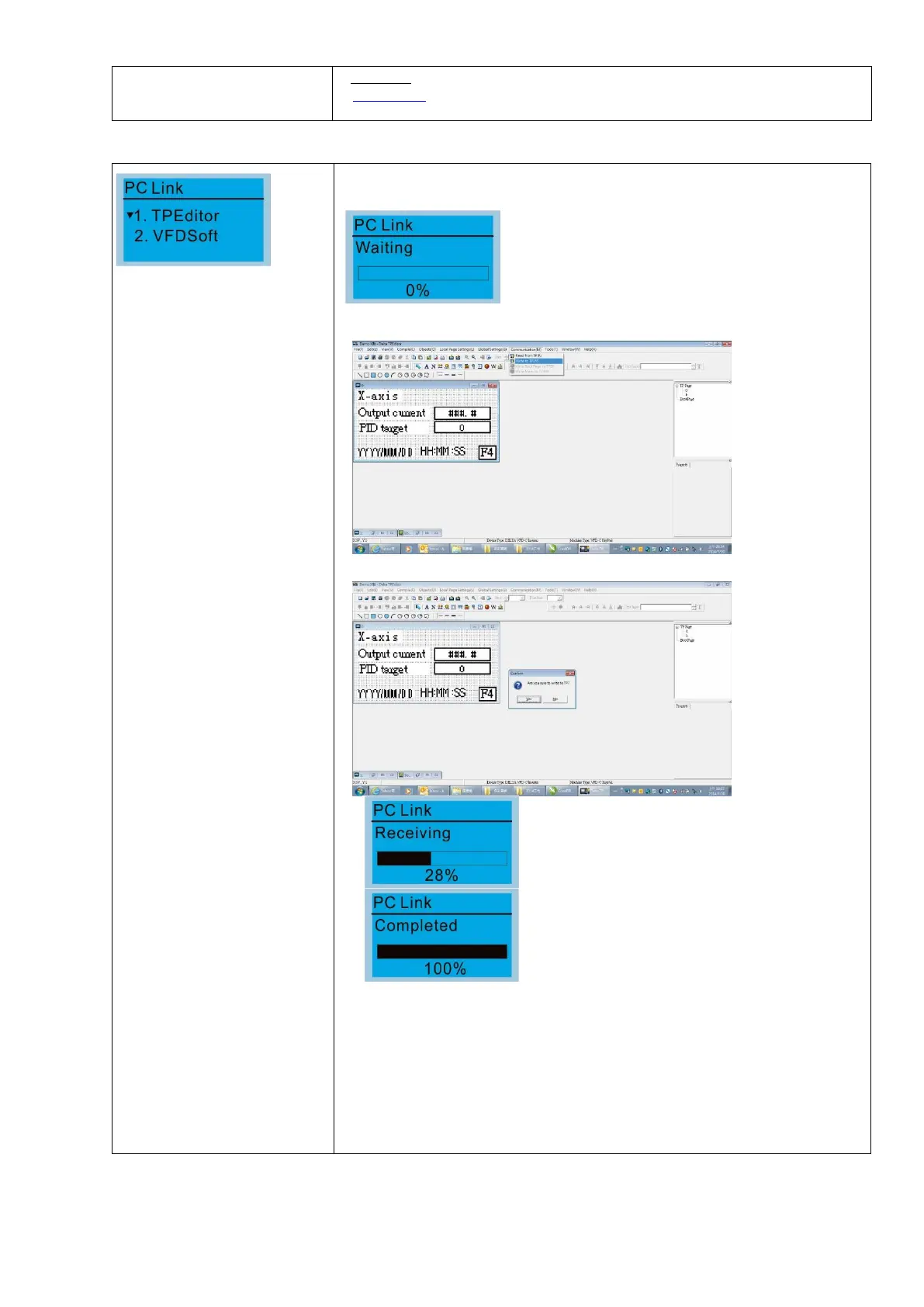

1. TPEditor: This function enables you to connect the keypad to a computer
then download and edit user-defined screens.
Press ENTER to go to Waiting to connect to PC
screen.
In TPEditor, from the Communication menu, choose Write to HMI.
In the Confirm message box, click YES.
The software starts downloading screens to
edit to the KPC-CC01.
2. VFDSoft: This function enables you to link to the VFDSoft then upload
the parameters 1–4 you have saved in the KPC-CC01.
NOTE:
If the Operation System (OS) of your computer is Windows 10, right -
click the VFDSoft icon to enter the Property. Then, click the
Compatibility tab and select the Run the program as an
administrator checkbox. (as shown in the red frames in the figure
below)
