Chapter 7 Optional AccessoriesMS300
70

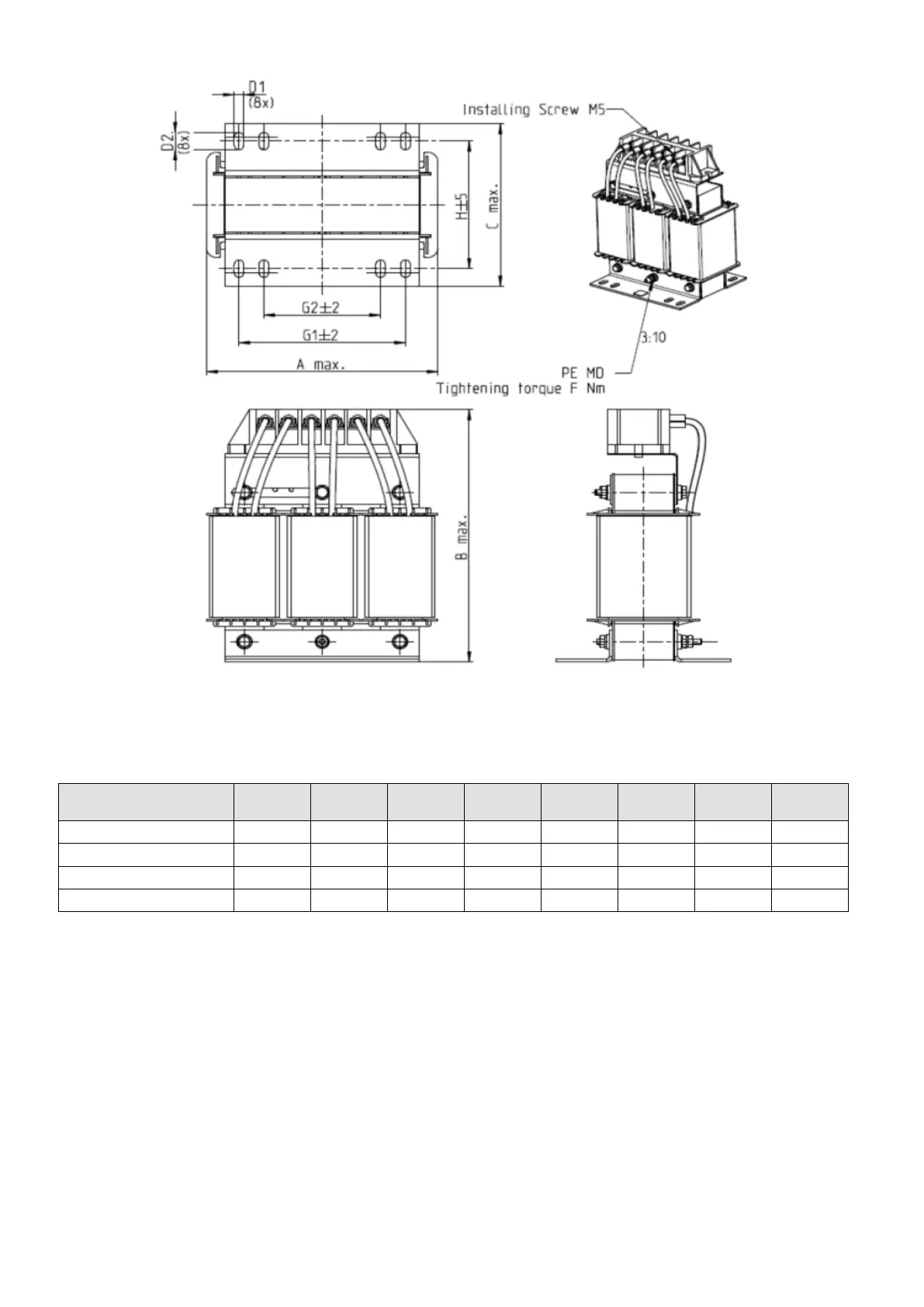

Figure 7-12
Unit: mm
AC Input Reactors
Delta Part #
A
B
C
D1*D2
H
G1
G2
PE D
DR024AP881
160
175
115
6*12
90
107
75
M4
DR032AP660
195
200
145
6*12
115
122
85
M6
DR038AP639
190
200
145
6*12
115
122
85
M6
DR045AP541
190
200
145
6*12
115
122
85
M6
Table 7-28
