VIVOTEK
User's Manual - 13

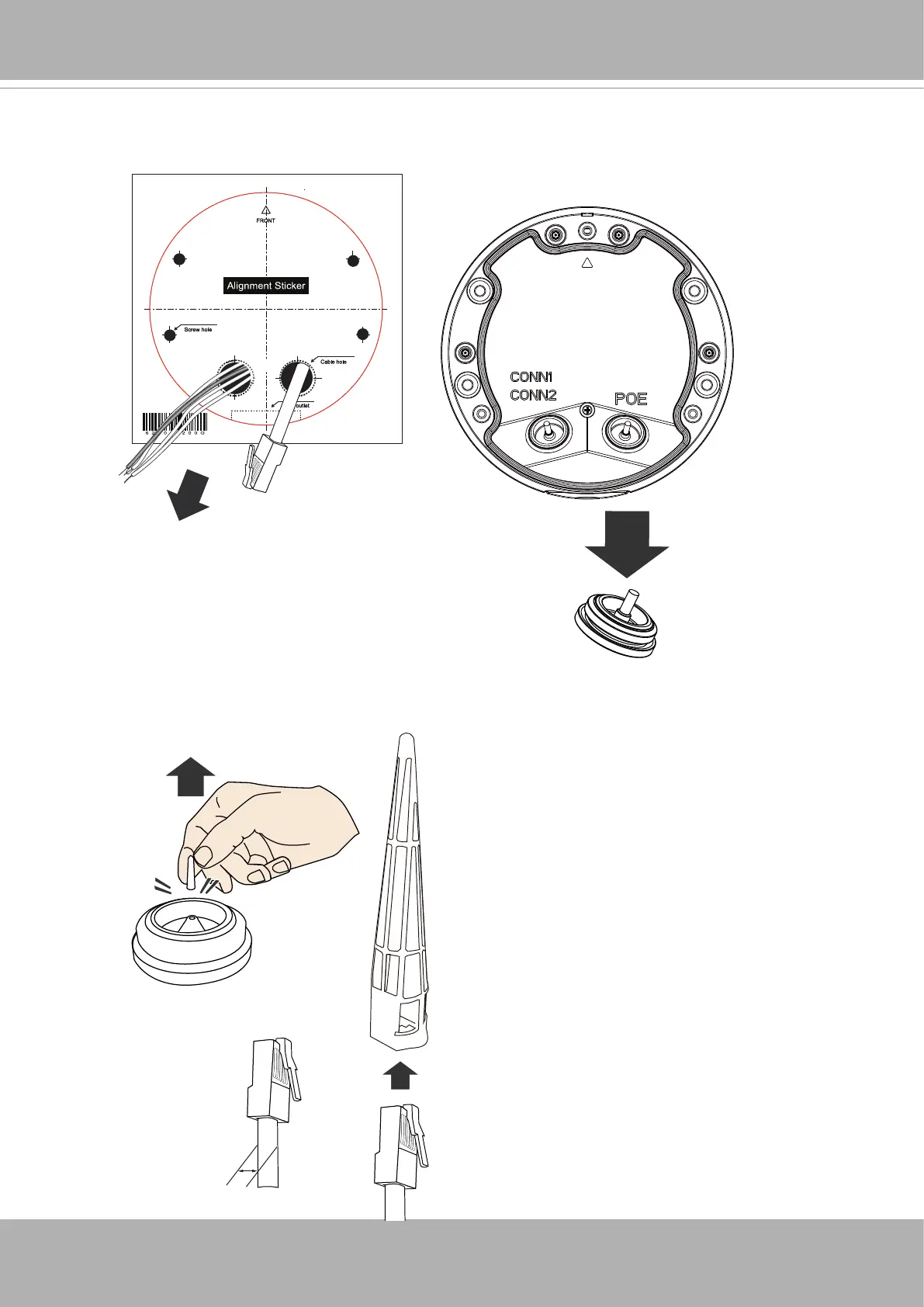

3. Route cables through the wall or ceiling, and remove the grommet on the base plate.
4. Remove the tip of the silicon grommet. Insert the RJ45 connector of your Ethernet cable
into the penetration cap.
5 ~ 8mm
