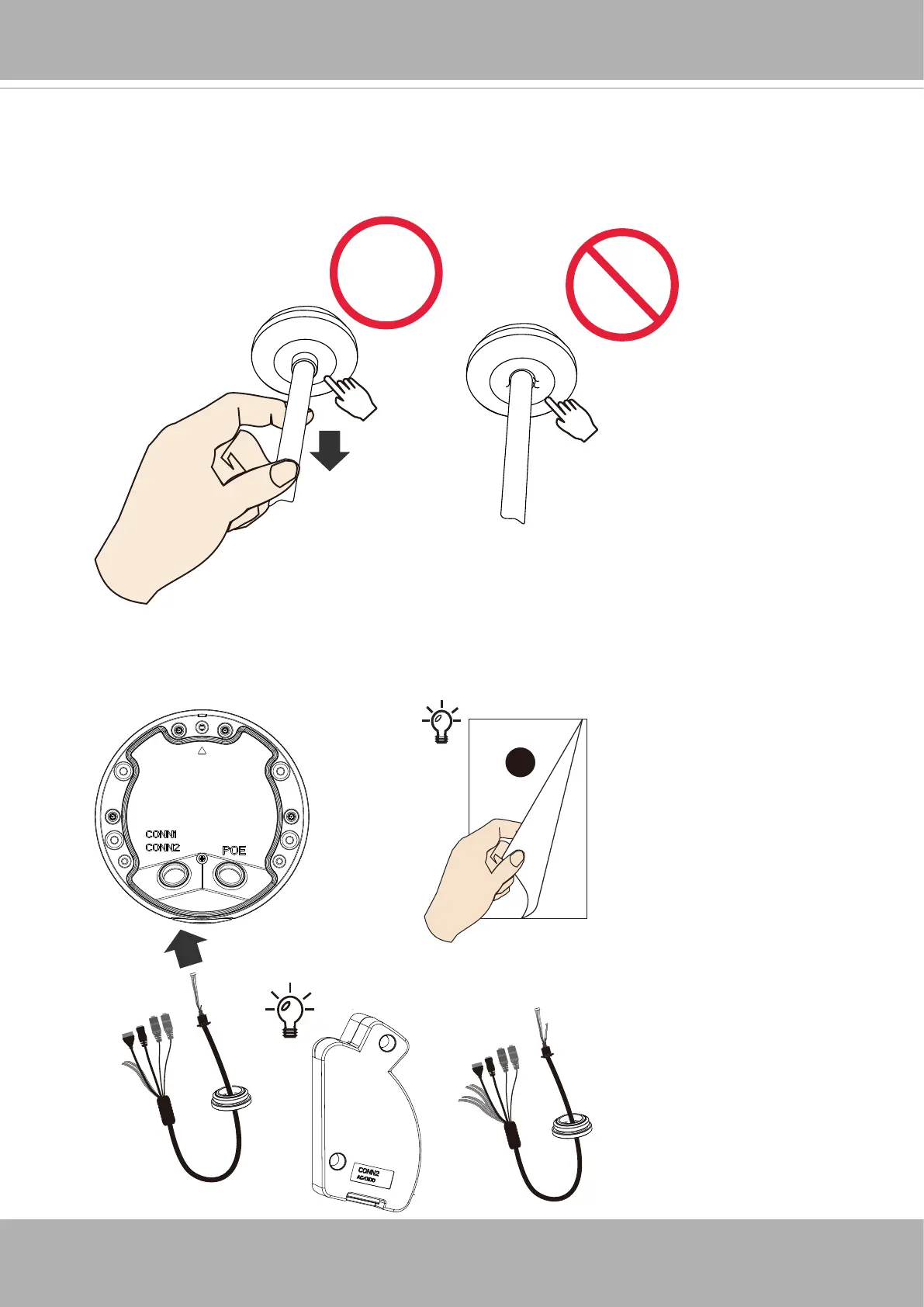

7. When installing the silicon grommet, make sure the cable is slightly pulled back to the
outside. Do not leave the rim of the seal jammed in the inside of the seal.
Extension I/O kit
+
Separately purchased
B
8. The I/O combo cable comes with a pre-installed grommet. Install the cable to the
opening and place I/O wires in the cable clip. Note the orientation of the I/O pin headers.
Connect the I/O pin headers and the Ethernet connector to the camera.
If you want to use the
extension I/O kit, refer to
Installation option B.
