Demco DA66B - Disc Brake Actuator Parts; Disc Brake Actuator Parts List

Page 15
5482 Master Cylinder Repair Kit
(gasket 09153 included)
25
5696
Coupler Repair Kit
for
6000 lb.
coupler
not included
1. 12190-95 1 6000# 2" Lever Lock Coupler
2. SB23278 2 Roller
3. 12151 2 Front Roller Spacer
4. 02166 1 3/8”-16UNC X 2-3/7” Hex Head Bolt (gr.5)
5. 07176 1 3/8”-16UNC Stover Lock Nut
6. 05684 2 1/2"-13UNC x 4-7/16" Hex Head Bolt (gr.5)
7. 02178 2 1/2"-13UNC Nylon Insert Lock Nut
8. 12193 1 Push Rod Assembly
9. 05692 1 Damper/ Shock
10. 12103 2 Rear Roller Spacer
11. *05951 1 Emergency Lever
12. 12201-95 1 Front Cover
13. *12200 1 28” Cable with S-Hook & J-Hook
14. SB10555 2 Replacement S-Hook ONLY
15. 05960 2 5/16"-18UNC x 1/2" Self-Tapping Screw
16. 05424 2 5/16" External Tooth Lock Washer
17. *05693-95 1 Emergency Lever Spring
18. 03876 1 Master Cylinder Cap w/ Diaphragm & O-ring
19. **00618 4 1/4-20UNC x 2.00" Hex Head Bolt
20. **00057 4 1/4” Spring Lock Washer
21. 12191-95 1 Outer Case
22. **09153 1 Replacement Master Cyl. Gasket ONLY
23. **11190 1 Master Cylinder (Not sold separately)
- 5672 - Master Cylinder Disc Kit (incl. items w/
**)
24. 11993 1 Inline Blocking Solenoid
25. 05687 1 Master Cylinder Protective Boot
26. BH21004 1 Safety Decal (See Page 7)
27. **00062 4 1/4-20UNC Nut
28. 11674-95 1 Solenoid Cover
29. BD21001 2 Disc Brakes Decal (See Page 7)
30. 02384 2 1/2” X 14 Gage Machine Washer
31. 07283 1 10mm Flat washer
REF.
NO. PART NO. QTY. DESCRIPTION
- 5400- Emergency Lever Replacement Kit (incl. items w/*)
- 5482 - Master Cylinder Repair Kit w/ gasket
- 5696 - Coupler Repair Kit (lever lock)
Please order replacement parts by PART NO. and DESCRIPTION.

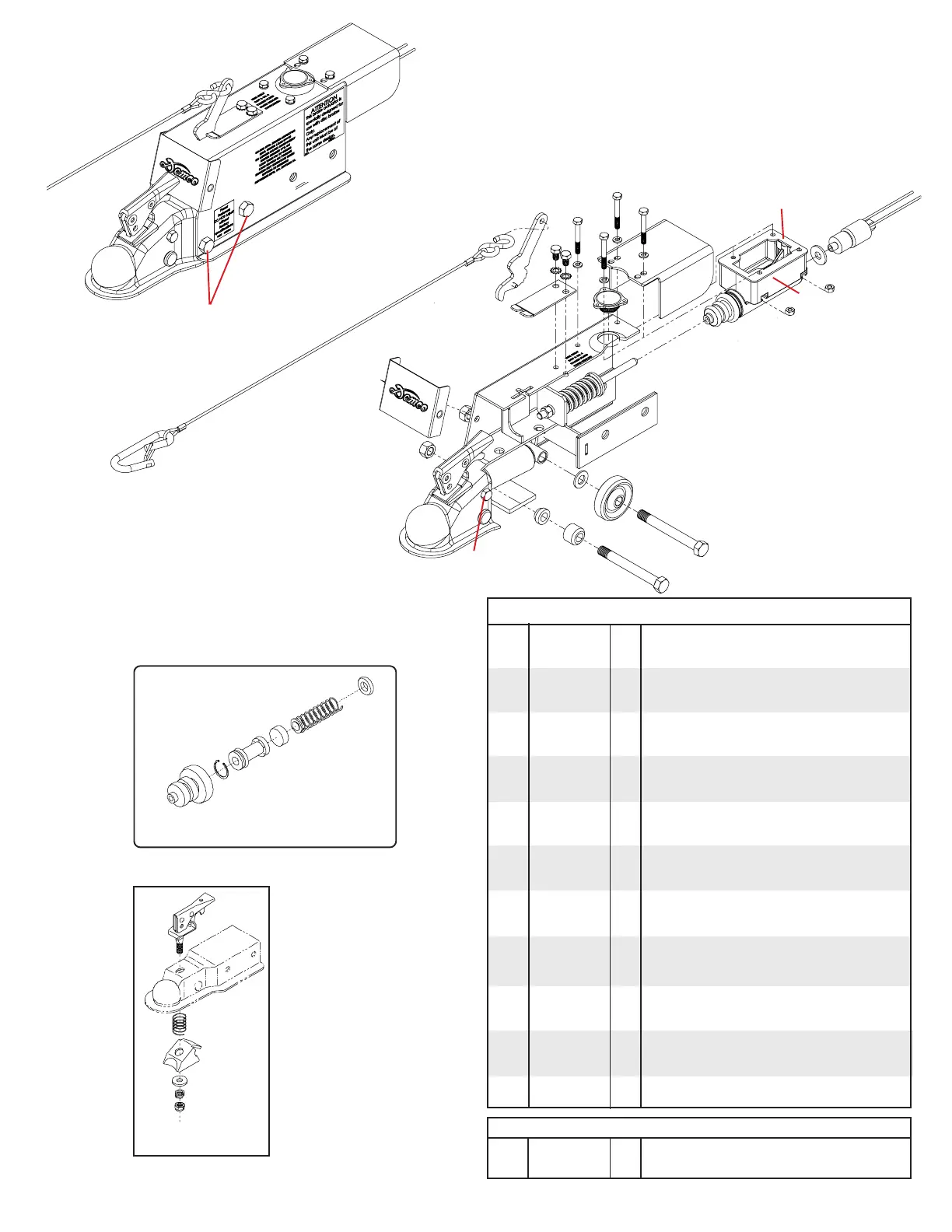

8605101 DISC BRAKE
ACTUATOR PARTS
25
12
1
2
3
2830
10
6
6
8
24
27
27
22
18
20
19
19
15
16
17
11
14
13
7
9
7
21
23
4
Do not tighten these bolts. They are
factory torqued and must remain loose
enough to allow free coupler movement.
26
28
31
29
ACTUATOR PARTS LIST
