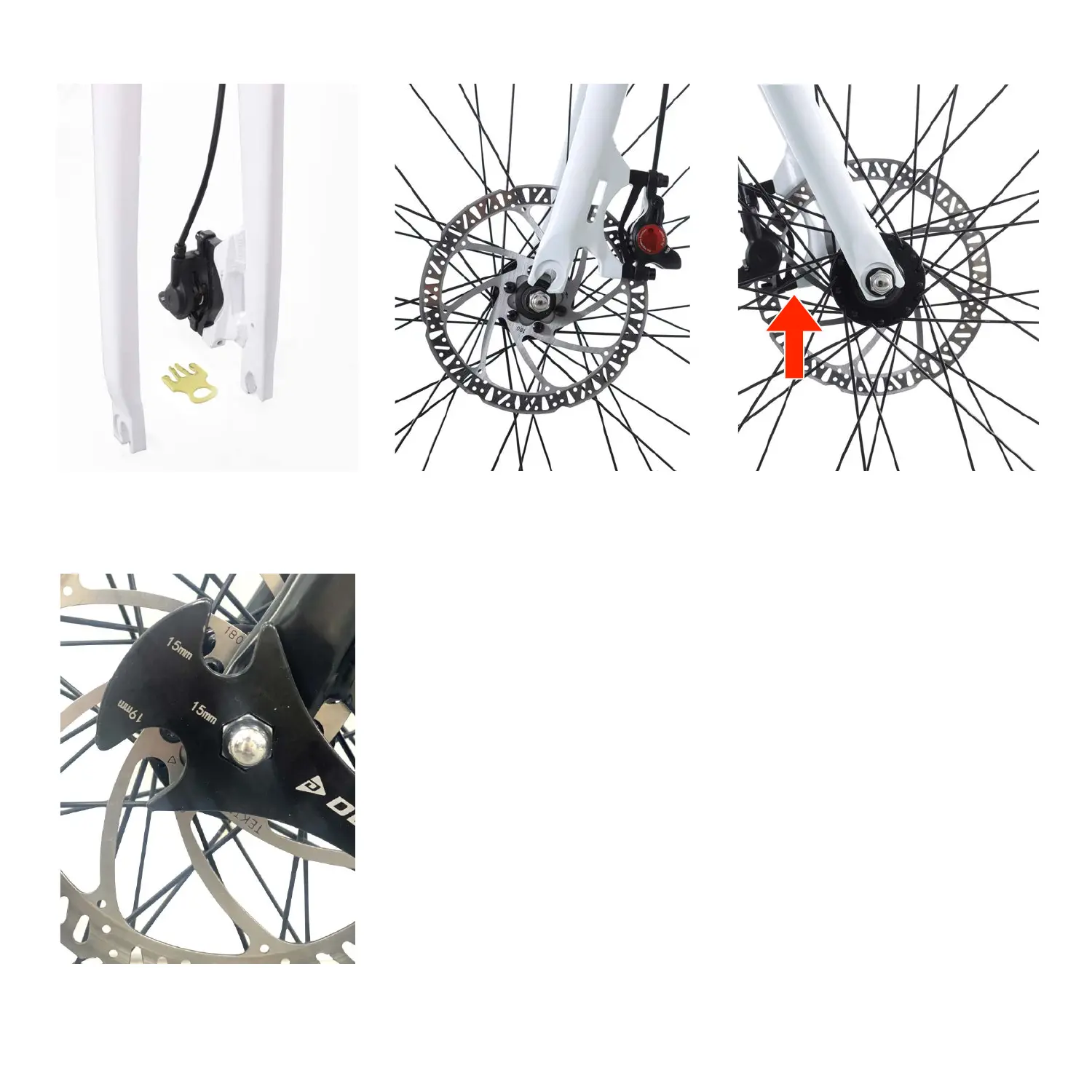

1. Remove Packing Block from disc
brake caliper – Do Not Throw Away
– Re-install Packing Block whenever
you remove your front wheel.
Your bike has a BOLT ON mechanism
2. Position the front wheel so it’s
centered between the front fork legs
with the axle resting inside the fork
drop outs
3. Align the disc brake rotor so it is
centered in the slot of the brake
caliper
4. Tighten one axle nut part way
then tighten the other nut, repeat
until both sides are tightened
securely.!Be sure that the wheel is
centered between the fork legs
CAUTION
Tighten nuts securely to the
fork dropouts
