1. Accessory Power Activation
1.1 - Installing The Relay
To activate the factory accessory power, the relay must be installed into its socket on
the KLR650’s factory wiring harness.
Note: If your KLR650 is already equipped with the factory LED auxiliary light set, grip
heater set, or USB socket kit then a relay will be pre-installed from the factory. If your
KLR has the factory relay installed, skip to Section Two.

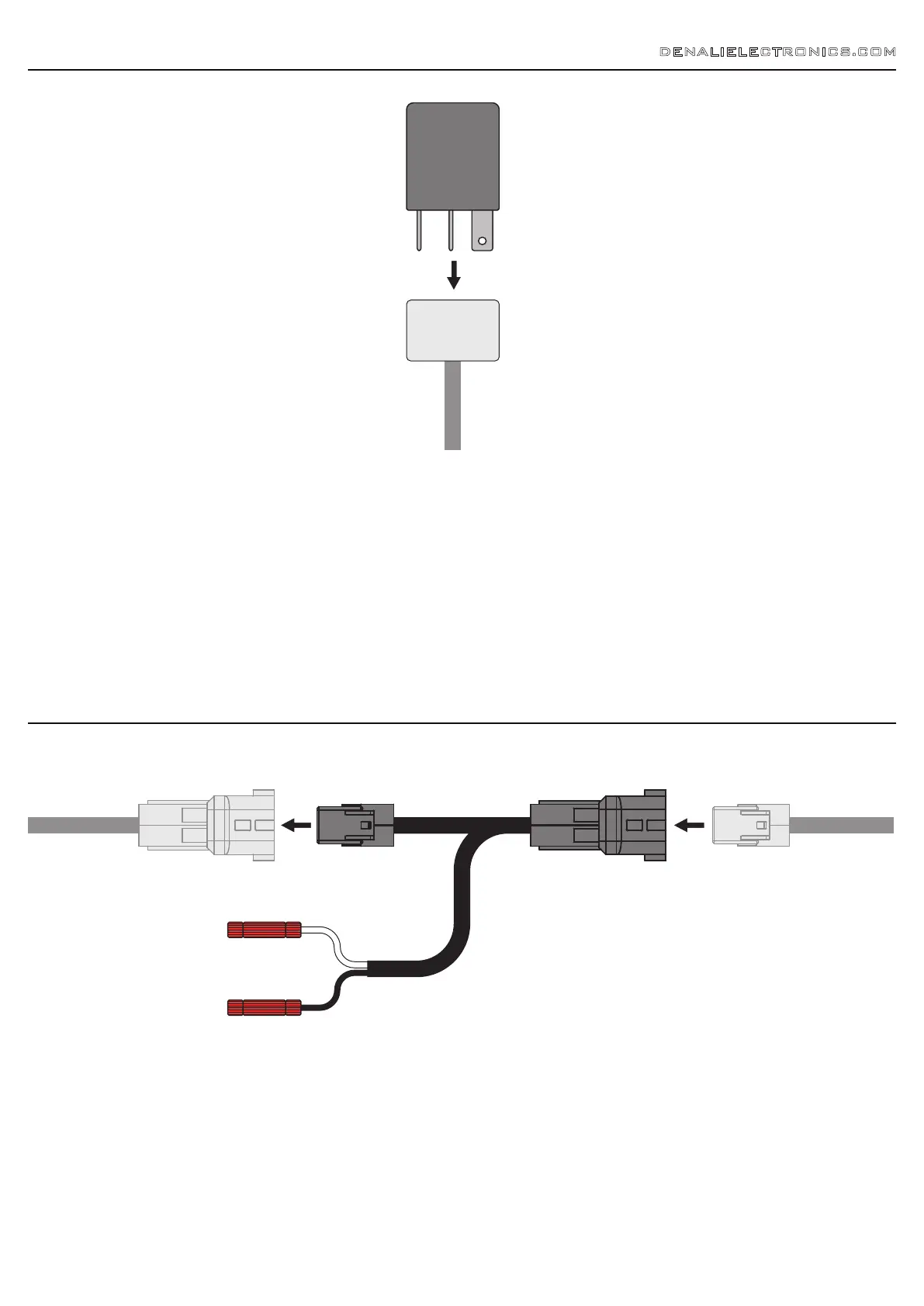

Step One: Remove the right side fairing to gain access to the relay socket. The relay
socket is mounted on the vertical fairing brace.
Step Two: Install the relay into the socket.
DENALIELECTRONICS.COM
2.1 - Connecting The Wiring Adapter
Step One: Remove the left side fairing to gain access to the USB socket connector.
Note: If your KLR has a USB port, it will be connected to the port. If your KLR does not
have a USB port, you will find the connector attached to the vertical fairing brace.
Step Two: Plug the wiring adapter into the USB connector. If your KLR has a USB port,
plug the other end of the adapter back into the USB port. If your KLR does not have a
USB port, re-attached the connector to the fairing brace.
1. Installing The Wiring Adapter
2.2 - Connecting Accessories
This switched power adapter is intended to send a 12V trigger signal to relayed wiring
harnesses and low power (<2A) accessories only. High power (>2A) accessories
should NOT be connected directly to the adapter. Powering high power accessories
directly from this adapter could overload the circuit and blow the factory fuse.
Step One: Connect the positive lead of your harness or accessory to the white 12V
positive wire using the pre-installed posi-lock connector.
Step Two: If applicable, connect the negative lead of your harness or accessory to
the black 12V negatived wire using the pre-installed posi-lock connector.
12V Positive (+)
From Main Harness Wiring Adapter
Relay
Relay Socket
To USB Port
12V Negative (-)
