3. SPECIFICATIONS
3.1 Electric impulse of the device have following output parameters :
3.1.1 Without load = 20 KOhm
Capacity (in standard units)
Minimum*
Maximum**
1
99
Amplitude of phase 1, B
≤ 40
≤ 40
Duration of phase 1, ms
6,0 ± 1,5
400 ± 100
Amplitude of phase 2, B
9,0 ± 2,5
450 ± 113
*The above stated parameters apply to treatment mode impulses and do not apply to test impulses. Parameters should be measured when Therapy
without Contact Control Function is enabled.
**Parameters should be measured when Children’s Doctor Function is disabled.

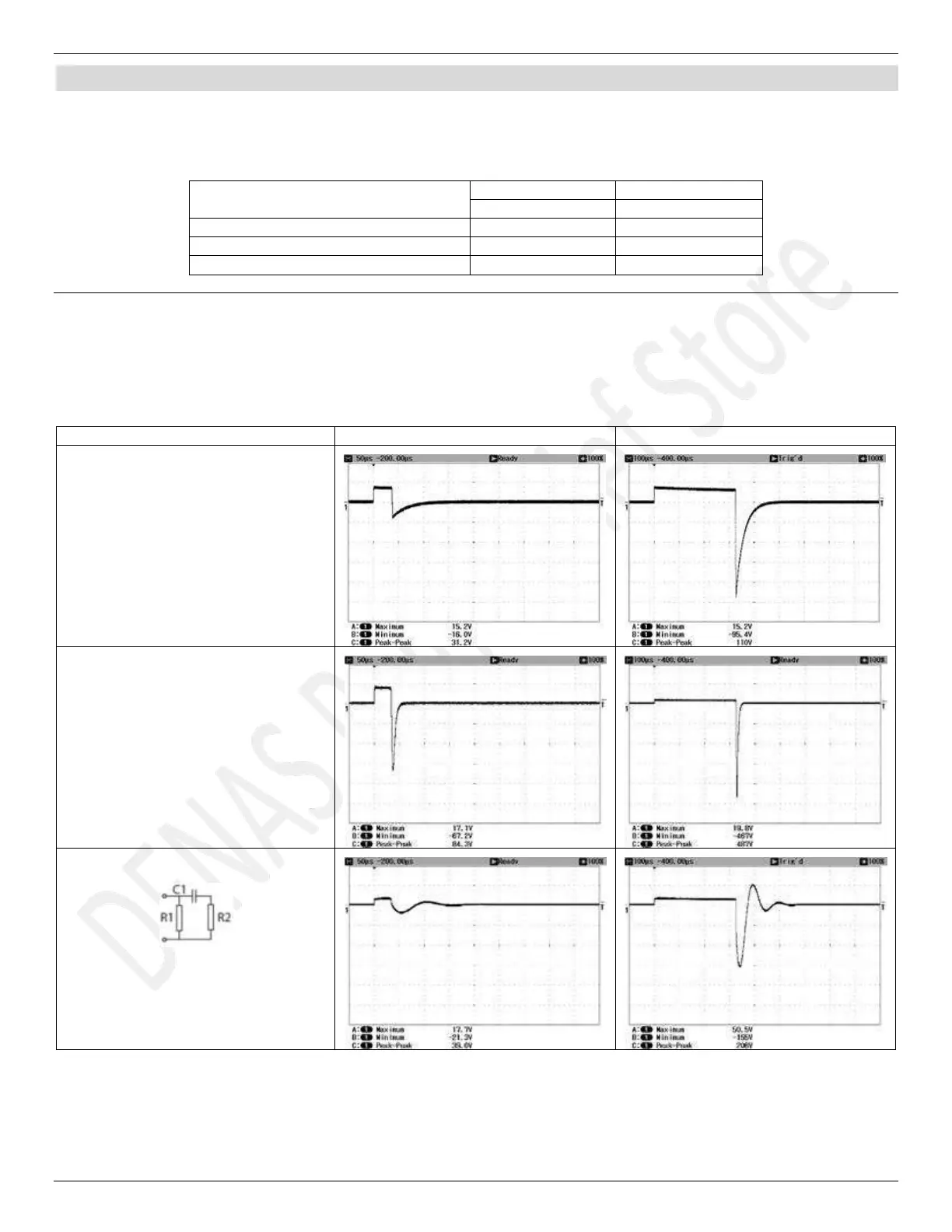

3.1.2 Relation of the impulse shape to load resistance with medium and maximal capacity level.
3.1.3 Dependence of impulse form from load resistance at average and maximum power levels.
10 units
99 units
2 kOhm
20 kOhm
Z1
R1 82±5% kOhm
R2 2±5% kOhm
C1 3300±20% pF
