Controls and Functions

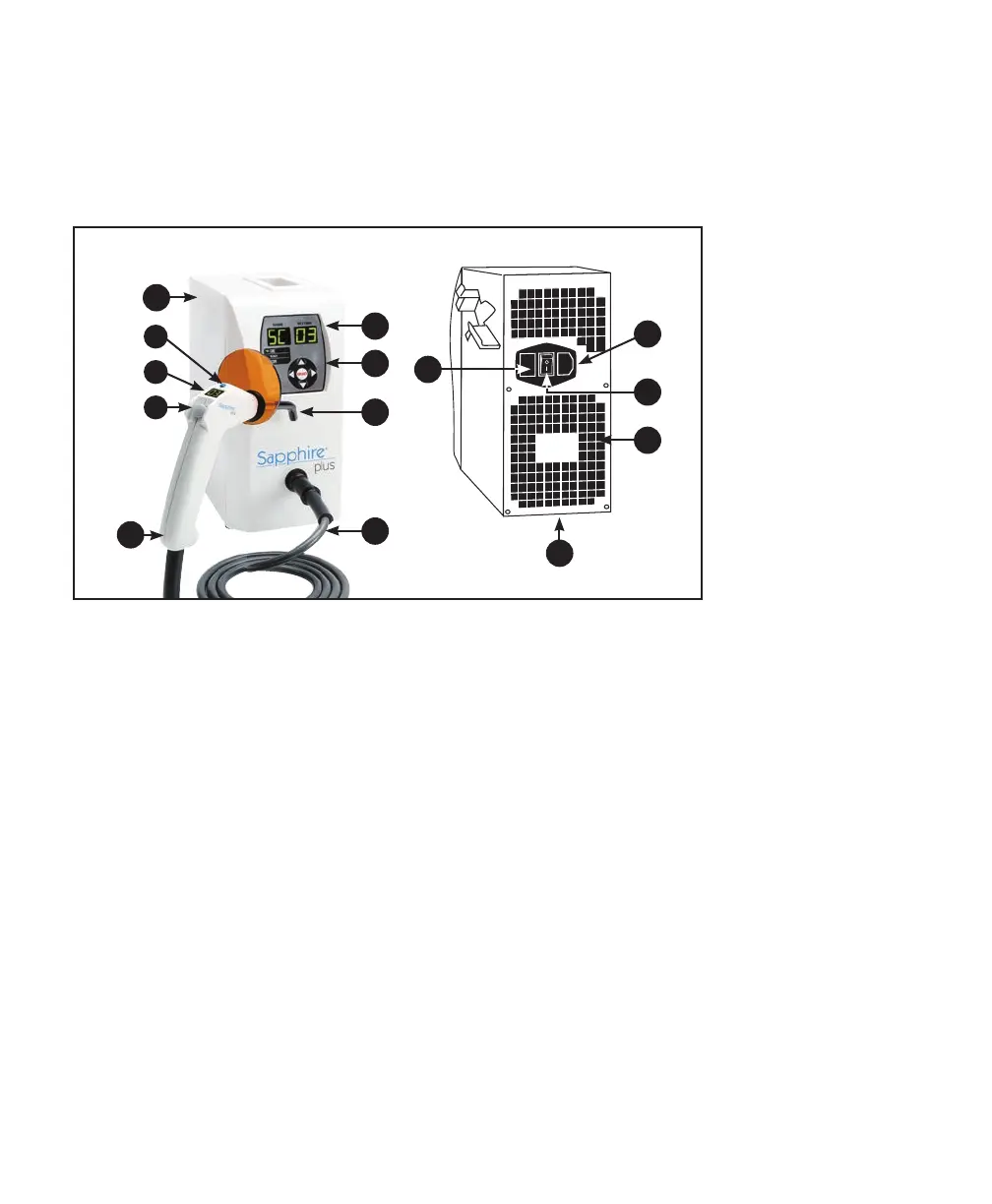

1. Sapphire

Plus Light Source

2. Sapphire Plus Control Panel: Includes control wheel and select button, mode indicator, display windows,

and start/stop button.

3. Sapphire Plus Display Windows: Digital display of the pre-set time, program mode, and light meter.

4. Fiber Optic Light Guide: Flexible optical device for delivery of light. Make sure the light guide is pushed all

the way in until it stops.

5. Sapphire Plus Curing Handpiece:

A. Timer select button

B. Timer display

C. Activator button (Each handpiece has an activator button to activate the lamp.)

6. Removable Autoclavable Tip: Optical device for exact placement of light.

7. Lamp Access Plate: Access area on the bottom of the light source where the lamp is removed

and replaced.

8. Cooling Fan: Provides cooling to the light source.

9. Power Module: Accepts AC power cord.

10. Fuse Holders: Contains the main fuses. (see fuse replacement section)

11. Power Switch: Turns power ON ( I ) and OFF (O).
