Dennis FT - Engine & Drive Kit - Centrifugal Clutch 06;2013 >

28
FT & Super Six SP20001_REV_6

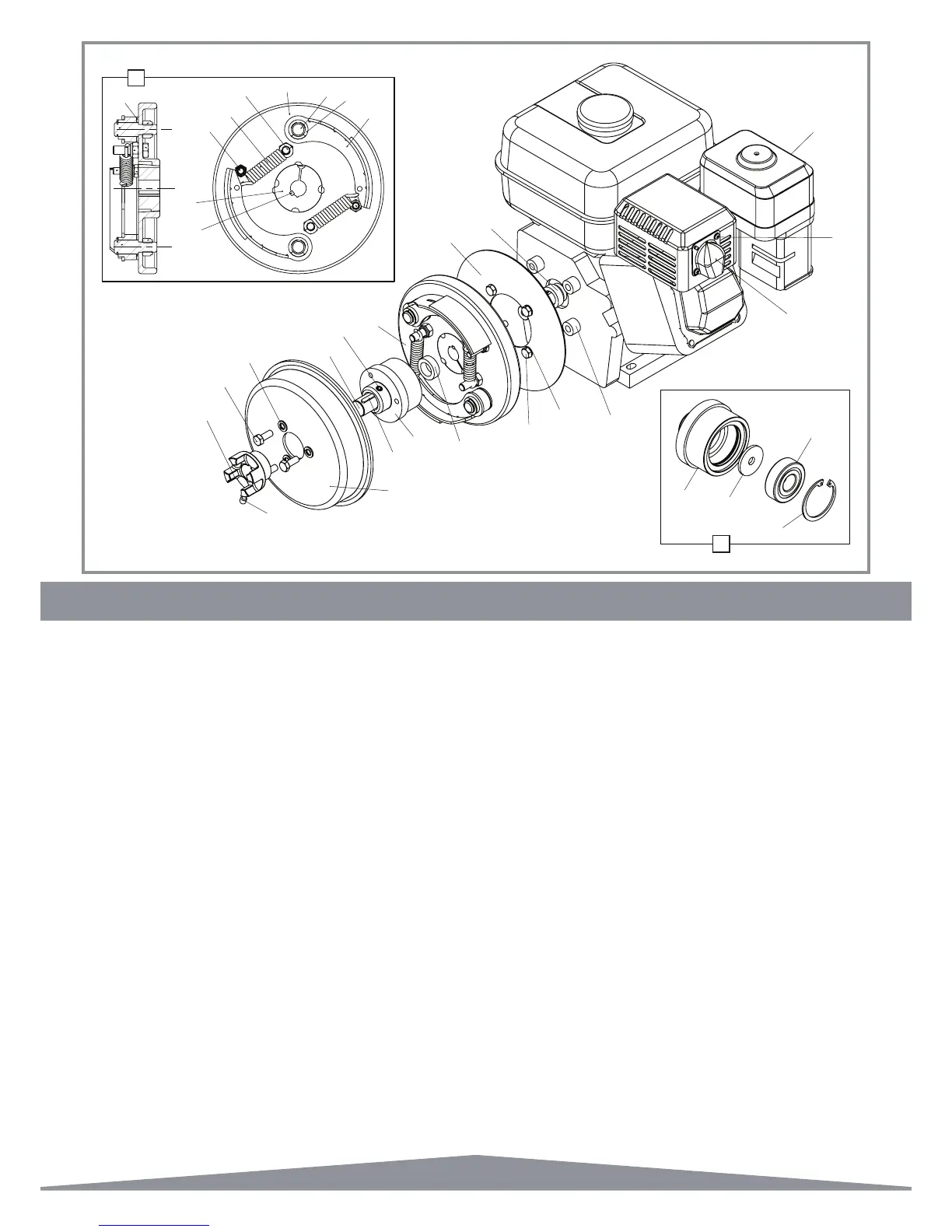

7.02 Engine & Drive Kit - Centrifugal Clutch 06/2013 >
Item No. Part No. Description Quantity
1 228102 Coupling Half (7/8”) 1
2 229901 Engine 5.5 Hp Honda Gx160 Q9 1
3 230530 Backing Plate Flywheel 1
4 230531 Spacer Back Plate 4
5 230535 Shaft Spacer 2
6 800026 Clutch Hub Assembly 1
7 800027 Fly Wheel Assembly 1
8 J20367 ExhaustDeector 1
9 J20368 ScrewM4ExhaustDeector 2
10 J20369 E Clip 5Mm 1
11 J20376 Throttle Clamp 1
12 J20467 Grub Screw M8 X 8 2
13 J209007 Cap Head 5/16” X 3/4” 1
14 J209017 Clutch Drum Machined 1
15 J209025 Key 3/16” X 3/16” X 1 3/4” Rd End 1
16 J209233 Stub Shaft 1
17 Sp01009 Hex Set Screw M8 X 20 3
18 Sp01093 Hex Set Screw 5/16” Unf X 1” 4
19 Sp03004 Washer M8 Toothed 4
20 Sp03029 Washer M8 Spring Lock 3
21 228001 Tapered Bush 1610 - 3/4” 1
22 230532 Flywheel 1
23 230533 Clutch Shoe Pivot 2
24 E1-1119 Hex Set Screw M10 X 35 2
25 J20457 Key 3/16” X 3/16” X 1” Rd End 1
26 J209011 Tension Spring 2
27 J209012 Washer M16 Form B 2
28 J209013 Clutch Shoe Assy 2
29 J209106 E Clip 16Mm 2
30 Sp01036 Hex Set Screw M8 X 35 2
31 Sp02006 Nut M8 Nyloc (T) 2
32 Sp02008 Nut M10 Nyloc (T) 2
33 Sp02010 Nut M12 Nyloc (T) 2
Item No. Part No. Description Quantity
34 230534 Bearing Hub Clutch 1
35 J209006 Circlip 47 M1308-0470 1
36 J209249 Washer 9 X 35 X 3 1
37 Sp06020 Bearing Rms6-2Rs 1
Note
For Throttle Cable, See Section 6.01
12
4
3
19
18
5
6
14
7
12
15
16
20
17
1
5
9
2
8
7
21
25
28
29
23
22
24 & 32
26
30 & 31
27
6
34
36
37
35
