Dennis FT430 - Page 23

23
FT & Super Six SP20001_REV_4

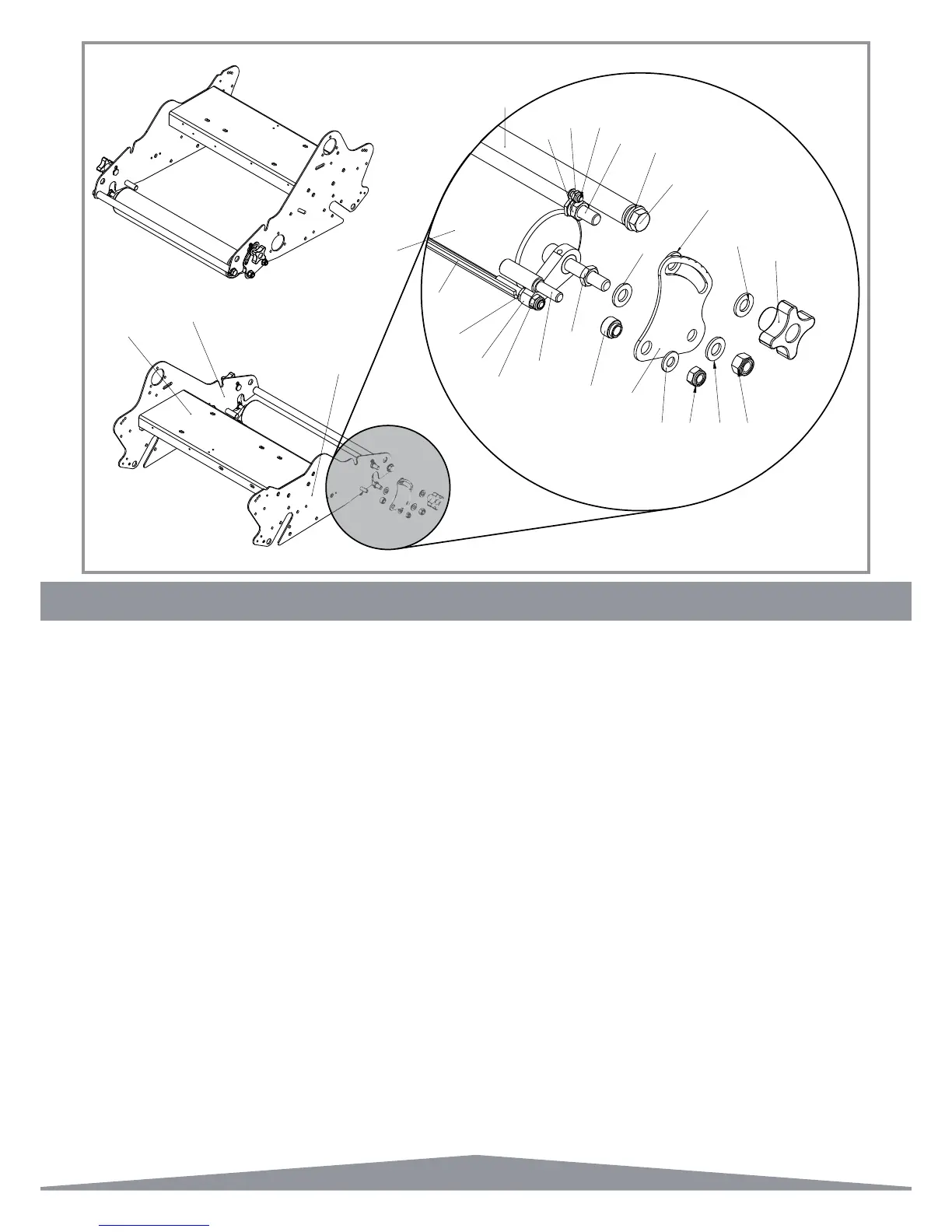

  6XSHU6L[)URQW5ROOHU0DLQ$VVHPEO\
,WHP1R 3DUW1R 'HVFULSWLRQ 4XDQWLW\
1 J20235 20” Front Cross Bar 1
1 J24235 24” Front Cross Bar 1
2
J20292 Collar Front Tie Bar 2
3 J20550 20” Front Roller 1
3 J24550 24” Front Roller 1
4 J20551 Scraper Bar Ear 2
5 J20552 20” SS Scraper Bar 1
5
J24552 24” SS Scraper Bar 1
6 J209110 Unit Bearing Stud 2
7 J209111 Bush Quadrant 2
8 J209112 Knob Plastic 2
9 J209215 Engine Bed 20” 1
10
J209218 Side Plate L.H. S.S. 1
11 J209219 Side Plate R.H. S.S. 1
12 J209225 Roller Quadrant S.S. 2
13 J209252 Lock Screw 2
14 SP01016 Button Head M6 x 12 2
15 SP01053 Hex Set Screw 1/2” UNF x 1” 2
16 SP02004 Nut M6 Nyloc 2
17 SP02006 Nut M8 Nyloc (T) 2
18 SP02008 Nut M10 Nyloc (T) 2
19 SP02010 Nut M12 Nyloc (T) 2
20 SP02012 M10 Thin Lock Nut 2
21 SP02014 Nut M12 Lock (Thin) 4
22 SP03011 Washer M10 Form A 2
23 SP03012 Washer M12 Form A 8
