AVR-4306/AVC-4320
1U-3698 DIGITAL UNIT

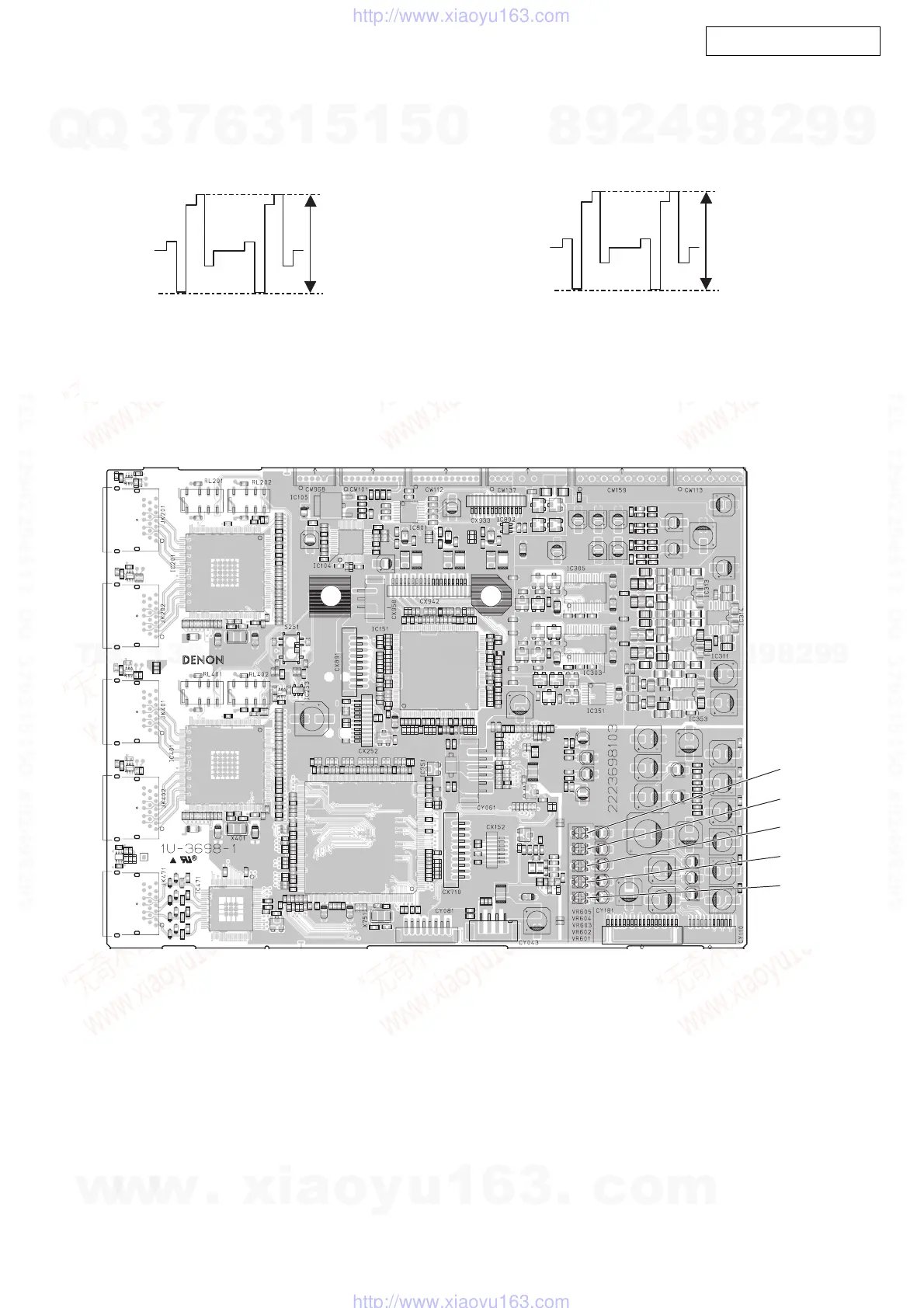

(c) PR/CR 信号レベル
調整個所 ： 1U-3698VR605
調整値 ： 525 ± 10ｍV
波形
PR/CR
COMPONENTOUT の PR/CR 信号レベル
(c) Target, P
R/CR-signal
Point : 1U-3698 VR605
Adjustment Value : *525 ± 10mV
Waveform
* : 486 ± 10mV for U.S.A. & Canada model
PR/CR-signal COMPONENT OUT
PR/CR
VR605 PR/CR
VR604 PB/CB
VR603 Y
VR602 S-C
VR601 S-Y
