A

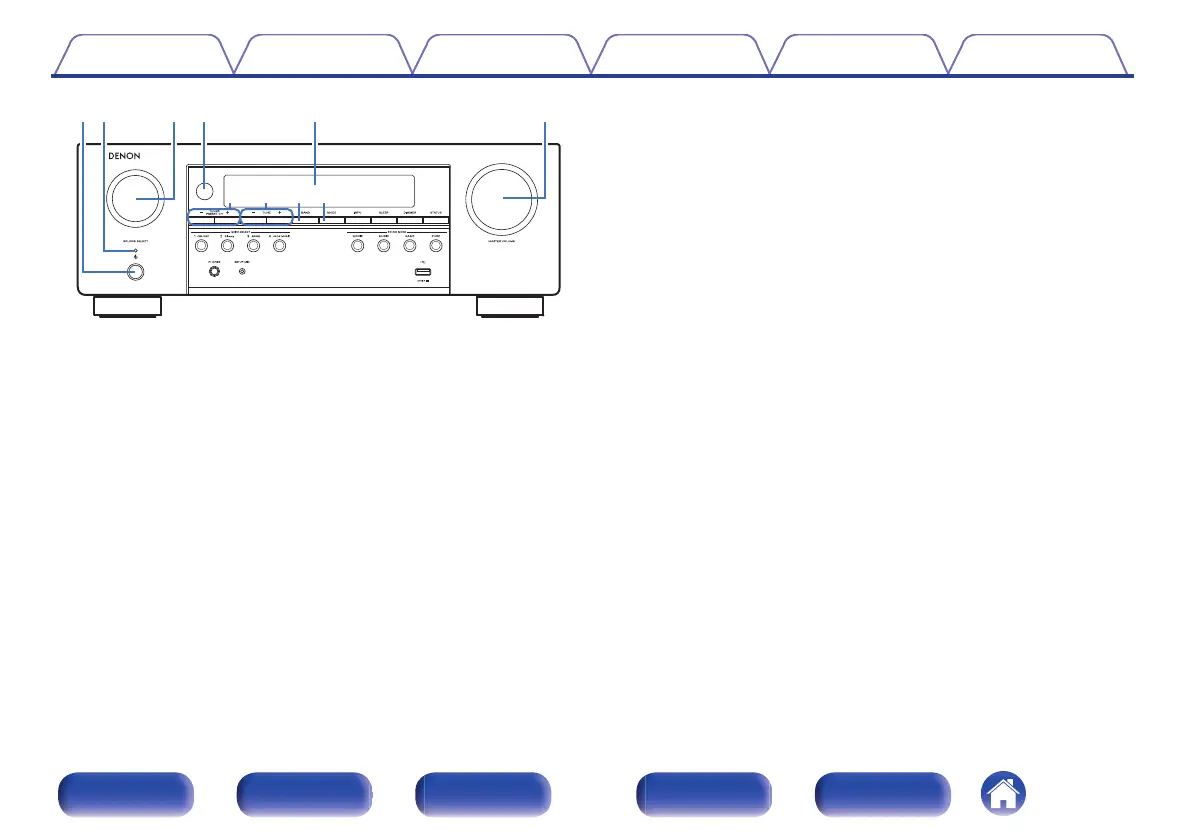

Power operation button (X)
Used to turn the power on/off (standby). (v p. 50)
B
Power indicator
This is lit as follows according to the power status:
0
Green: Power on
0
Off: Normal standby
0
Red:
0
When “HDMI Pass Through” is set to “On” (v p. 137)
0
When “HDMI Control” is set to “On” (v p. 139)
0
When “Network Control” is set to “Always On” (v p. 169)
C
SOURCE SELECT knob
This selects the input source. (v p. 50)
D
Remote control sensor
This receives signals from the remote control unit. (v p. 9)
E
Display
This displays various pieces of information. (v p. 18)
F
MASTER VOLUME knob
This adjusts the volume level. (v p. 51)
G
Tuner preset channel buttons
(TUNER PRESET CH +, –)
These select preset broadcast stations. (v p. 68)
H
Tuning up / Tuning down buttons (TUNE +, –)
Select either FM broadcast or AM broadcast. (v p. 65)
I
Reception band select button (BAND)
This switches the reception band. (v p. 65)
J
Tune mode select button (MODE)
This switches the tuning mode. (v p. 67)
