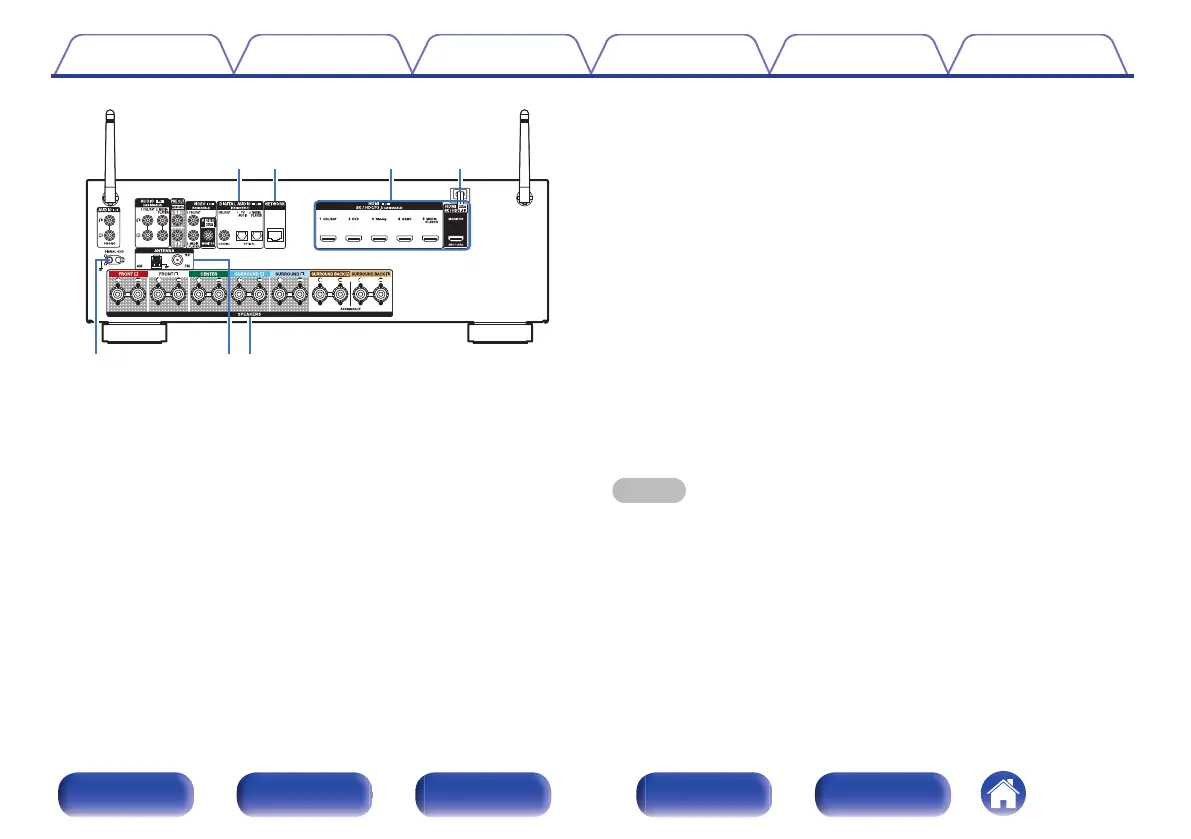

Digital audio connectors (DIGITAL AUDIO)
Used to connect devices equipped with digital audio connectors.
0
“Connection 2 : TV equipped with an HDMI connector and
incompatible with the ARC (Audio Return Channel) / eARC
(Enhanced Audio Return Channel)” (v p. 50)
0
“Connection 3 : TV equipped without an HDMI
connector” (v p. 51)
0
“Connecting a set-top box (Satellite tuner/cable TV)” (v p. 53)
F
NETWORK connector
Used to connect to a LAN cable when connecting to a wired LAN
network. (v p. 60)
G
HDMI connectors
Used to connect devices equipped with HDMI connectors.
0
“Connection 1 : TV equipped with an HDMI connector and
compatible with the ARC (Audio Return Channel) / eARC (Enhanced
Audio Return Channel)” (v p. 48)
0
“Connection 2 : TV equipped with an HDMI connector and
incompatible with the ARC (Audio Return Channel) / eARC
(Enhanced Audio Return Channel)” (v p. 50)
0
“Connecting a set-top box (Satellite tuner/cable TV)” (v p. 53)
0
“Connecting a DVD player or Blu-ray Disc player” (v p. 54)
H
Power cord (v p. 62)
I
SIGNAL GND terminal
Used to connect a ground wire for the turntable. (v p. 56)
J
FM/AM antenna terminals (ANTENNA)
Used to connect FM antennas and AM loop antennas. (v p. 58)
K
Speaker terminals (SPEAKERS)
Used to connect speakers. (v p. 34)
NOTE
0
Do not touch the inner pins of the connectors on the rear panel. Electrostatic
discharge may cause permanent damage to the unit.
Contents Connections Playback Settings Tips Appendix
22
Front panel Display Rear panel Remote Index

Denon AVR-S750H Specifications

General

Receiver type	stereo
Frequency range	10 - 100000 Hz
Input sensitivity	200 mV
Audio output channels	7.2 channels
Signal-to-Noise Ratio (SNR)	98 dB
Total Harmonic Distortion (THD)	10 %
Power output per channel (1KHz@6 Ohm)	165 W
Power output per channel (20-20KHz@8 Ohm)	75 W
AirPlay	Yes
Display	VFL
HDCP version	2.3
Apple docking	No
Product color	Black
Audio decoders	DTS-HD Master Audio, Dolby TrueHD
Volume control	Rotary
HDMI in	6
Composite video in	2
Digital audio optical in	1
Package depth	432 mm
Package width	523 mm
Package height	229 mm
Package weight	10614 g
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	400 W
AM band range	520 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Audio formats supported	AAC, ALAC, DSD, FLAC, MP3, WAV, WMA
Image formats supported	JPEG
Speakers connectivity type	RCA

Weight and Dimensions

Depth	330 mm
Height	152 mm
Weight	8618 g
