Inputs
Perform settings related to input source playback.
You do not have to change the settings to use the unit. Make settings when needed.

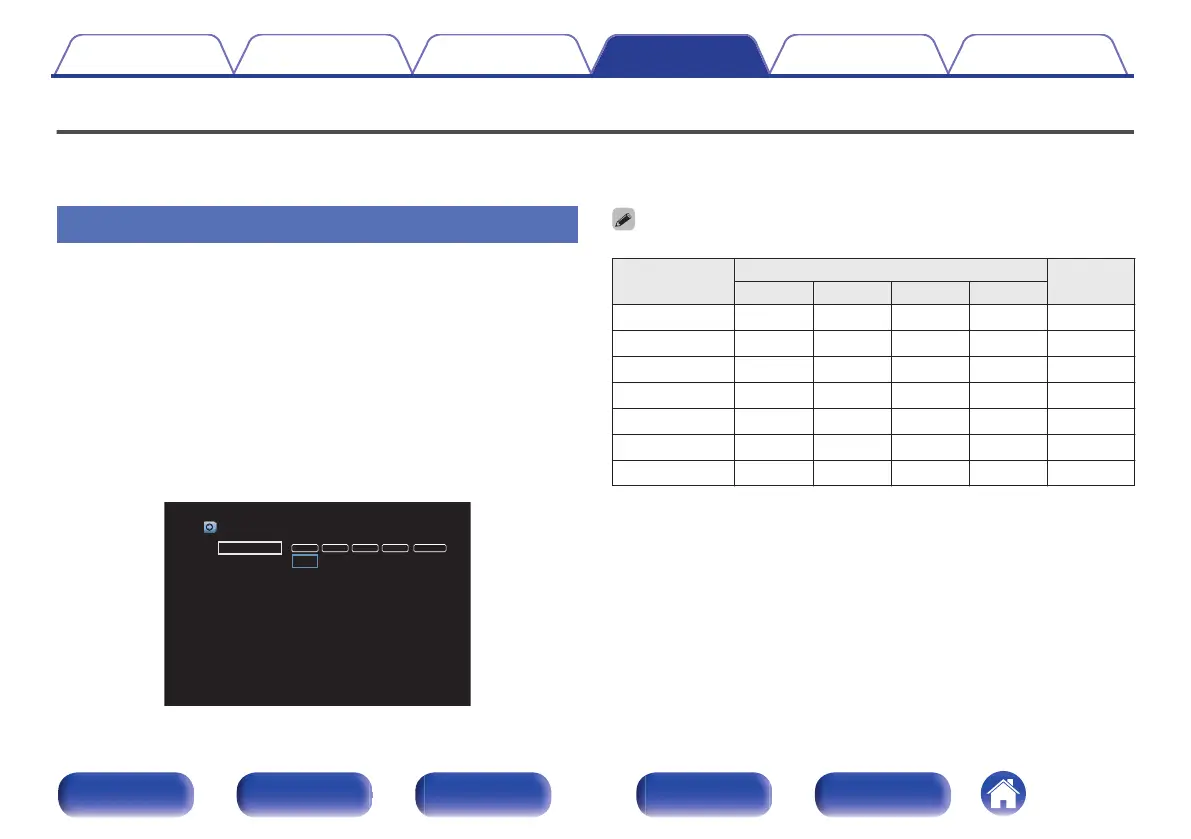

Input Assign
By making connections as indicated by the input sources printed on the
audio/video input connectors of this unit, you can just press one of the
input source select buttons to easily play back audio or video from a
connected device.
Please change the assignment of the HDMI input connector, digital audio
input connector, analog audio input connector and video input connector
when connecting an input source that differs from that printed to the audio/
video input connectors of this unit.
Sets the audio input mode for each “INPUT MODE” source. “AUTO” is
normally recommended for this setting. This automatically detects and
plays signal input to this unit prioritized in the following order: HDMI >
DIGITAL > ANALOG.
.
DIGITAL ANALOGHDMI VIDEO INPUT MODE
Set Defaults
Input Assign
CBL/SAT
DVD
Blu-ray
Game
CBL/SAT
DVD
Media Player
TV Audio
AUX
1
2
3
4
5
−
FRONT
OPT2
−
−
−
−
OPT1
−
1
−
−
−
2
−
−
1
−
−
−
2
−
−
AUTO
-HDMI-
-HDMI-
-HDMI-
AUTO
-DIGITAL-
-HDMI-
0
By default, each item is set as follows.
Input source
Input connector
INPUT
MODE
HDMI DIGITAL ANALOG VIDEO
CBL/SAT 1 OPT2 1 1 AUTO
DVD 2 – – – - HDMI -
Blu-ray 3 – – – - HDMI -
Game 4 – – – - HDMI -
Media Player 5 – 2 2 AUTO
TV Audio – OPT1 – – -DIGITAL-
AUX FRONT – – – - HDMI -
Contents Connections Playback Settings Tips Appendix
184
Front panel Display Rear panel Remote Index

Denon AVR-X1600H Specifications

General

Receiver type	Surround
Frequency range	10 - 100000 Hz
Output impedance	4 - 16 Ω
Input sensitivity	200 mV
Audio output channels	7.1 channels
Signal-to-Noise Ratio (SNR)	98 dB
Power output per channel (1KHz@6 Ohm)	145 W
Power output per channel (20-20KHz@8 Ohm)	80 W
HDMI in	6
AC (power) in	Yes
Composite video in	2
Digital audio coaxial in	0
Ethernet LAN (RJ-45) ports	1
Connectivity technology	Wired & Wireless
Speakers connectivity type	Clamp terminals
Display	-
HDCP version	2.2
Apple docking	No
Product color	Black
Audio decoders	DTS:X, Dolby Atmos, Dolby Surround, Dolby TrueHD
Audio formats supported	AAC, ALAC, DSD, FLAC, MP3, WAV, WMA
Bluetooth version	4.1
Bluetooth profiles	A2DP, AVRCP
AM band range	520 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Internet radio services supported	Amazon Music, Deezer, Pandora, Spotify, Tidal, TuneIn
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	440 W
Operating temperature (T-T)	5 - 35 °C
Package weight	10600 g
Certification	CE
Package depth	435 mm
Package width	523 mm
Package height	232 mm

Weight and Dimensions

Depth	339 mm
Width	434 mm
Height	215 mm
Weight	8600 g
