Connecting ZONE2
o

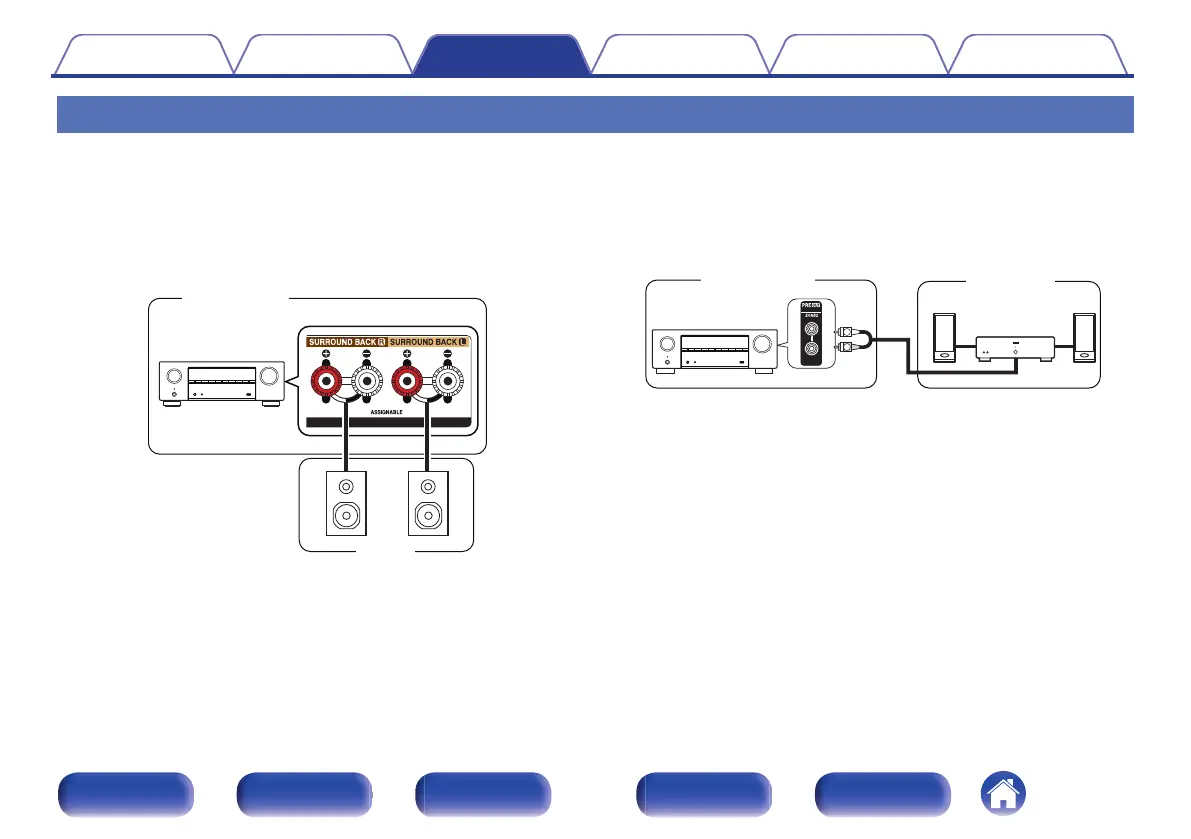

Connection 1: Connecting using a speaker
output terminal
When “Amp Assign” is set to “5.1ch + ZONE2” in the menu, ZONE2
audio is output from the SURROUND BACK speaker terminal.
(v p. 189)
(L)
ZONE2
(R)
MAIN ZONE
This unit
o
Connection 2 : Connection using an external
amplifier (ZONE2)
The audio signals of this unit’s ZONE2 audio output connectors are
output to the ZONE2 amplifiers and played on these amplifiers.
R
L
AUX IN
ZONE2
MAIN ZONE
This unit
Power amplifier
