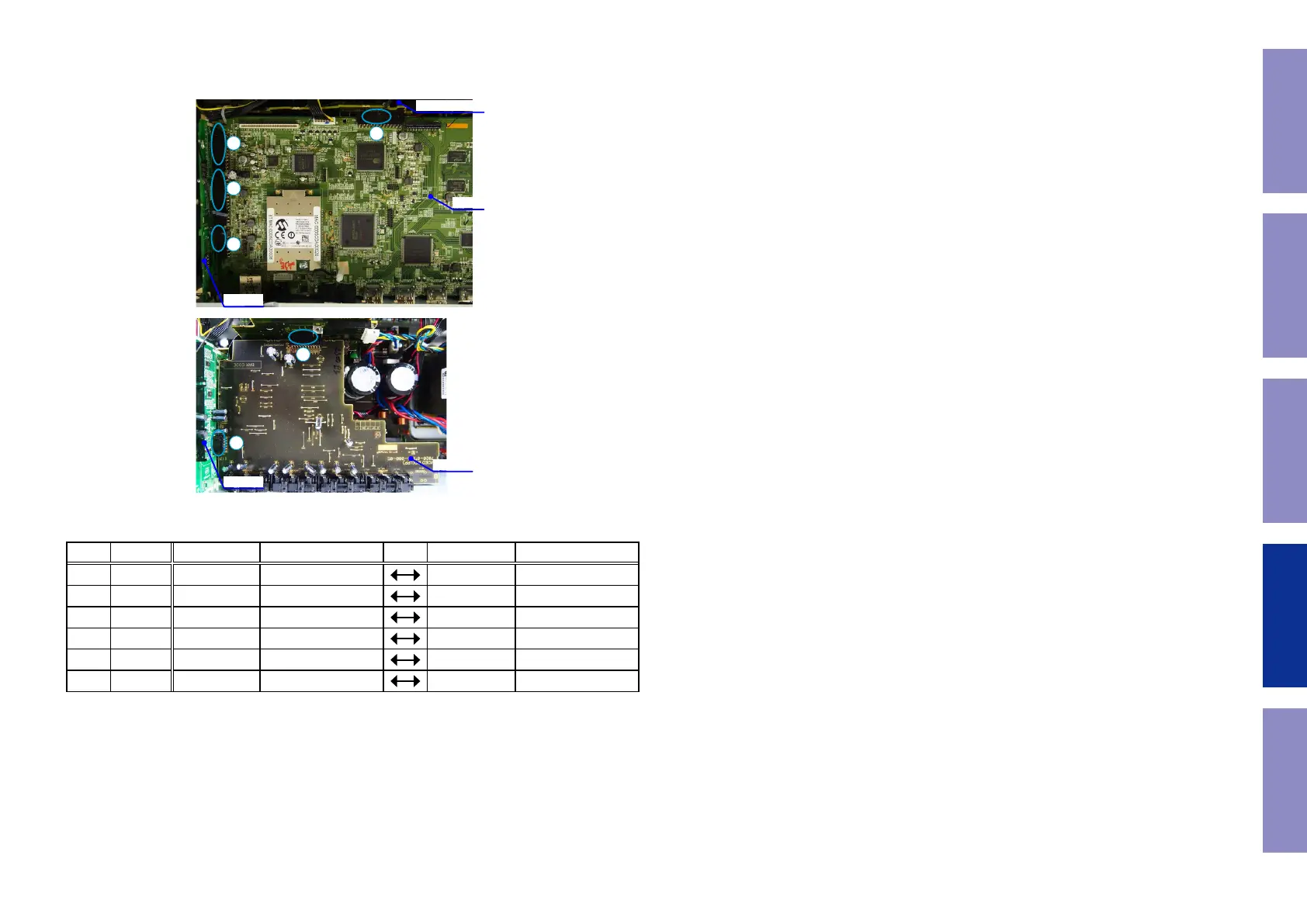

(4) Connect the expansion cables.
Board-to-Board Connections
No. Pin Ref. No. PCB Ref. No. PCB
q
15pin CP4200 INPUT
N1020 HDMI
w
27pin CP4205 INPUT
N1016 HDMI
e
23pin CP4201 INPUT
N1014 HDMI
r
25pin CP3401 FRONT CNT
N1039 HDMI
t
11pin CP4204 INPUT
CN5003 VIDEO
y
21pin CP5000 FRONT CNT
CN5000 VIDEO
FRONT CNT
HDMI
VIDEO
INPUT
INPUT
1
2
3
4
6
5
143
Caution in
servicing
Electrical Mechanical Repair Information Updating

Table of Contents
