Denon AVR-X2300W Service Manual

CENTER ch
+20dB
+10dB
0dB
-20dB
-30dB
-40dB
-10dB
+20dB
+10dB
0dB
-20dB
-30dB
-40dB
-10dB
AVR-S920W/X2300W
SR5011,NR1607

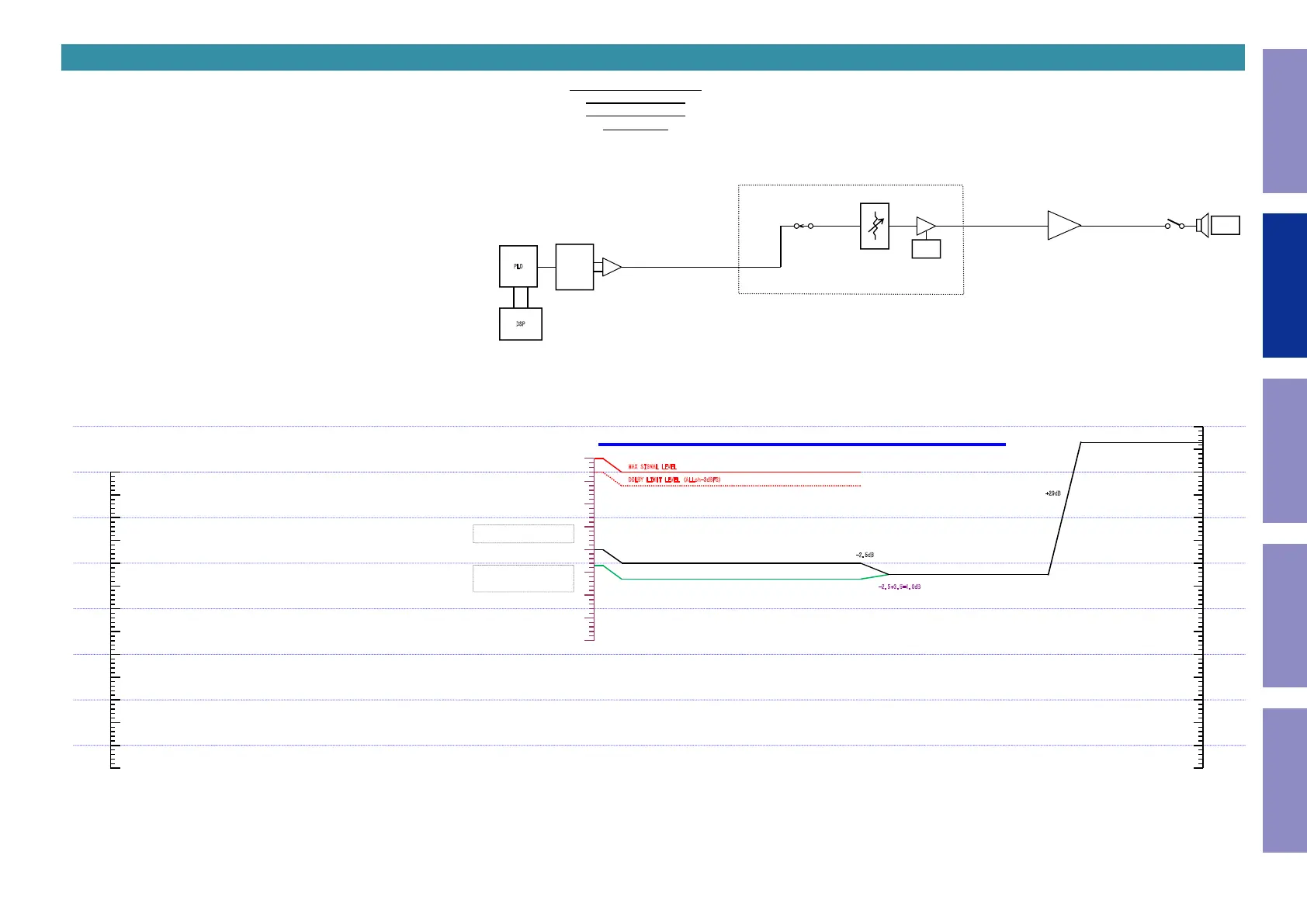

LEVEL DIAGRAM
CENTER ch
-2.5dB
DD INPUT:-20dBFS 1kHz
DSP OUTPUT:-20dBFS
200mV
+30dB
SP OUT
4.23Vrms/8Ω
+
29dB
MAX SIGNAL LEVEL
DOLBY LIMIT LEVEL (ALLch-3dBFS)
-3dB
ANALOG INPUT:200mVrms L+R 1kHz
(MODE:MULTI CH STEREO)
DSP OUTPUT:-23.5dBFS
-
2.5+3.5=1.0dB
＋
＋
SPEAKER
OUT
DSP
BD34704
GAIN
ADJ.
PCM1690
D/A
－
－
＋
PLD
0dBFS
-10dBFS
-20dBFS
-30dBFS
-40dBFS
PCM1690
Differential Out
0dBFS = +/-4.0Vpp=2.83Vrms
-3dB
BD34704 MAX.OUTPUT4.2Vrms
41
Caution in
servicing
Electrical Mechanical Repair Information Updating

Denon AVR-X2300W Specifications

General

Receiver type	-
Audio output channels	7.2 channels
Power output per channel (20-20KHz@8 Ohm)	95 W
HDMI in	7
Number of HDMI outputs	2
Wi-Fi	Yes
