Denon AVR-X2500H User Guide

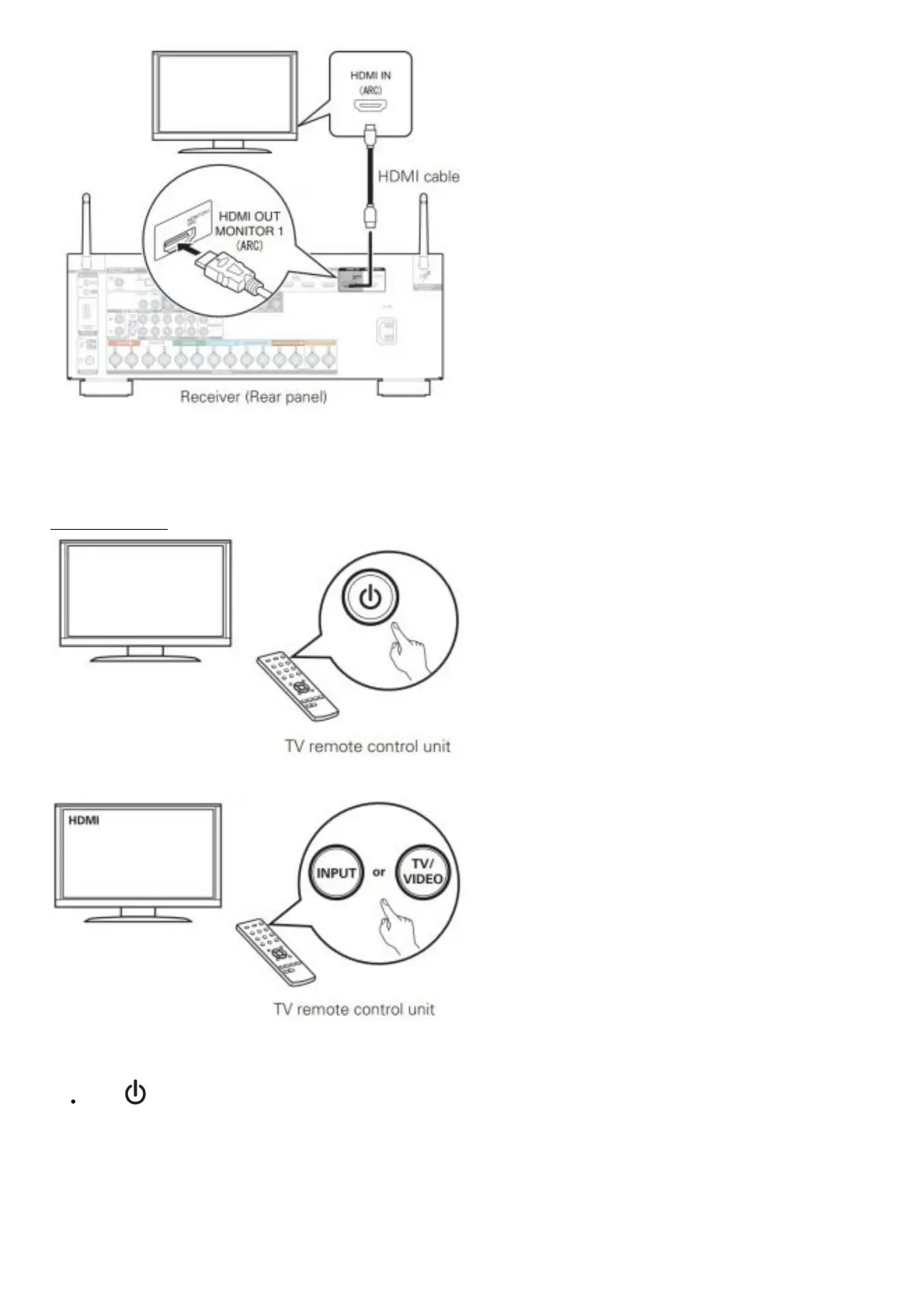

ARC (Audio Return Channel) :
If your TV supports ARC, your TV can send audio back to the AV receiver when you are using your TV’s built-in video sources (TV
tuner, Smart TV streaming services, etc…) ARC requires that you enable HDMI CEC on your TV. Please refer to your TV’s Owner’s
Manual for instructions on how to setup HDMI CEC. Note that some TV manufacturers use other names for the HDMI CEC function.
4) Turn on the TV
5) Select the appropriate HDMI input on your TV
6) Turn on the receiver
Press to turn on the receiver.

Denon AVR-X2500H Specifications

General

HDMI in	8
Composite video in	2
Ethernet LAN (RJ-45) ports	1
AirPlay	No
Display	-
Sample rate	196 kHz
HDCP version	2.2
Product color	Black
Audio decoders	DSD, DTS-HD, DTS:X, Dolby Atmos, Dolby Surround, Dolby TrueHD
Volume control	Rotary
RS-232 interface	Yes
Connectivity technology	Wired & Wireless
Receiver type	Surround
Frequency range	20 - 20000 Hz
Output impedance	8 Ω
Input sensitivity	200 mV
Audio output channels	7.1 channels
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (1KHz@6 Ohm)	185 W
Power output per channel (20-20KHz@8 Ohm)	95 W
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	500 W
Audio formats supported	AAC, ALAC, DSD, FLAC, MP3, WAV, WMA
AM band range	520 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Internet radio services supported	Deezer, Napster, Pandora, SIRIUS Internet Radio, Spotify, Tidal, TuneIn, iHeartRadio
Supported graphics resolutions	3840 x 2160

Weight and Dimensions

Depth	340.3 mm
Width	434.3 mm
Height	167.6 mm
Weight	9389 g
