J

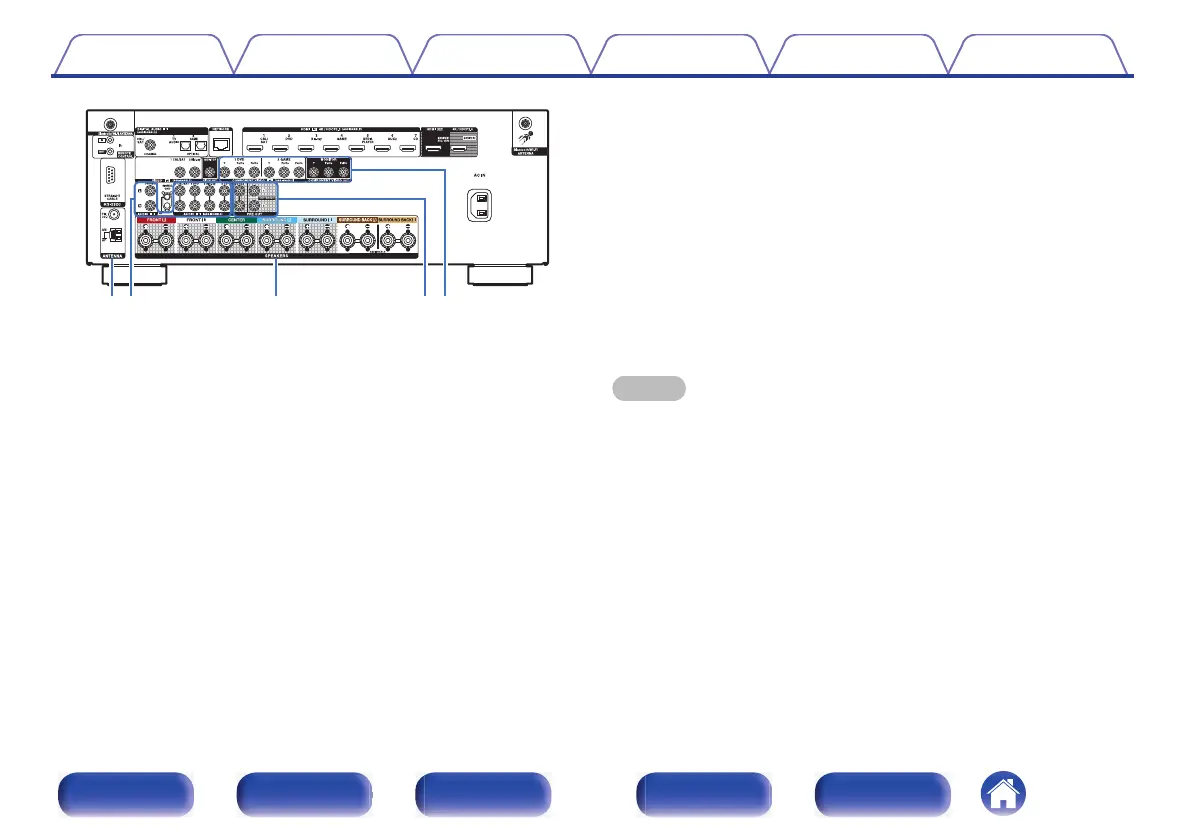

FM/AM antenna terminals (ANTENNA)
Used to connect FM antennas and AM loop antennas. (v p. 62)
K
Analog audio connectors (AUDIO)
Used to connect devices equipped with analog audio connectors.
0
“Connecting a set-top box (Satellite tuner/cable TV)” (v p. 57)
0
“Connecting a DVD player or Blu-ray Disc player” (v p. 58)
0
“Connecting a turntable” (v p. 60)
L
Speaker terminals (SPEAKERS)
Used to connect speakers. (v p. 36)
M
PRE OUT connectors
Used to connect a subwoofer with built-in amplifier or a power amplifier
for ZONE2.
0
“Connecting the subwoofer” (v p. 37)
0
“Connection 2 : Connection using an external amplifier
(ZONE2)” (v p. 140)
N
Component video connectors (COMPONENT VIDEO)
Used to connect devices equipped with component video connectors.
0
“Connection 3 : TV equipped without an HDMI
connector” (v p. 55)
0
“Connecting a set-top box (Satellite tuner/cable TV)” (v p. 57)
0
“Connecting a DVD player or Blu-ray Disc player” (v p. 58)
NOTE
0
Do not touch the inner pins of the connectors on the rear panel. Electrostatic
discharge may cause permanent damage to the unit.
