3

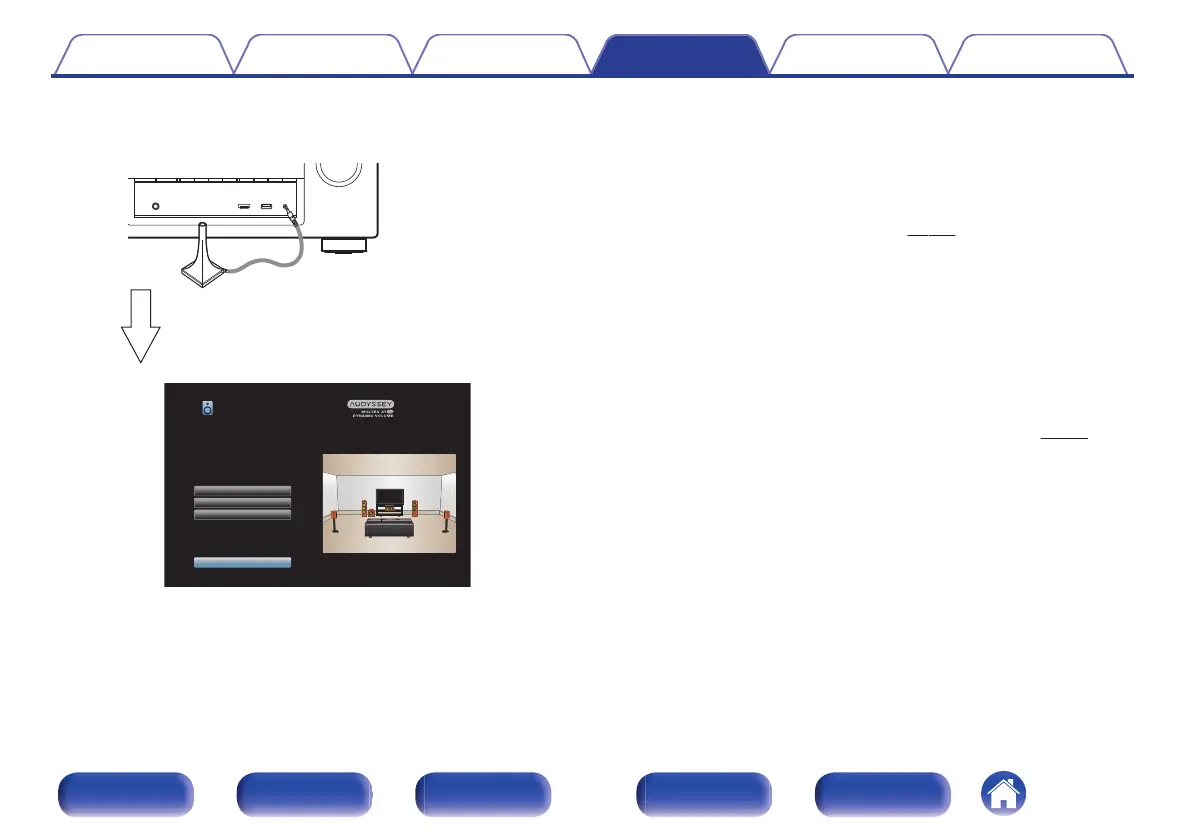

Connect the Sound calibration microphone to the
SETUP MIC jack of this unit.
.
When the Sound calibration microphone is
connected, the following screen is displayed.
.
Audyssey Setup
Dolby Speaker Setup
Channel Select
Amp Assign
Start
Your AV receiver can automatically measure the acoustics of
your room then optimize your speakers using the included
microphone and microphone stand.
Set the following items
if necessary.
4
Select “Start”, then press ENTER.
Audyssey
®
Setup can also make the following settings.
0
Amp Assign
The signals output from the SURROUND BACK speaker
terminals can be switched in accordance with your speaker
environment. (“Amp Assign” (v p. 184))
0
Channel Select
If channels that are not to be used are set in advance,
measurement for the set channels is skipped, and measuring
time can be reduced. You can also change the number of
surround back speakers and subwoofer.
0
Dolby Speaker Setup
Set the distance between the Dolby Atmos Enabled speaker and
the ceiling.
This can be set when “Assign Mode” is set to “Front Dolby” or
“Surround Dolby” in the “Amp Assign” settings. (v
p. 184)
5
Follow the instructions on the screen display and press
“Next” to proceed further.
Contents Connections Playback Settings Tips Appendix
176
Front panel Display Rear panel Remote Index
To Next Page
