Denon AVR-X3600H Quick Start Guide

3
Important: External Antennas
The removable external antennas are required for both
Bluetooth and Wireless network connectivity. Please make
sure to connect the antennas before attempting to use the
Bluetooth or Wi-Fi features of the AVR-X3600H.

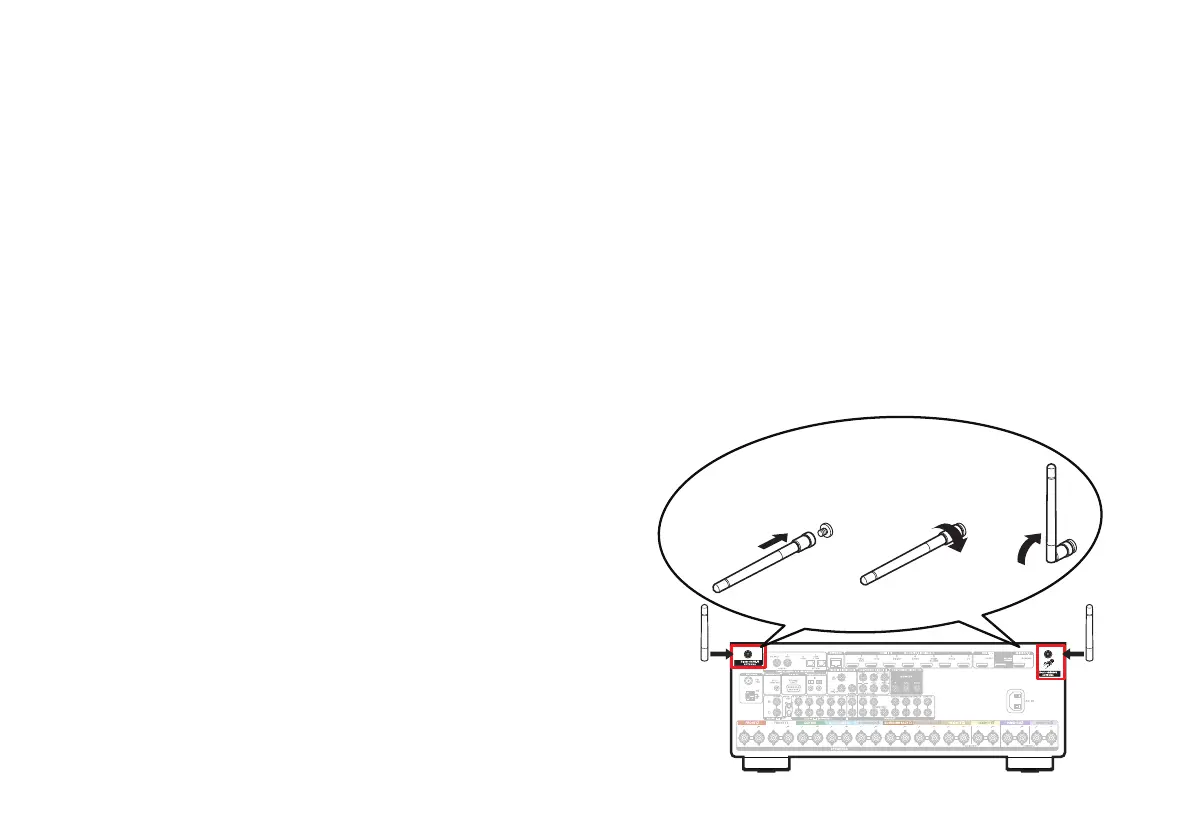

n Connecting the external antennas for
Bluetooth / Wireless connectivity
For each of the two antennas:
q Place the antenna evenly over the antenna terminal
located at the upper left or right corner of the rear panel.
w Turn the antenna clockwise until it is fully connected. Do
not over tighten.
e Rotate the antenna upwards for the best possible
reception.
q w e
1. AVR-X3600HE3_QSG_ENG_00A_190419.indd 3 2019/04/26 8:38:19
PrintingColor:Black

Denon AVR-X3600H Specifications

General

Receiver type	Surround
Frequency range	20 - 20000 Hz
Pre-out channels	11.2
Pre-out connectivity	Yes
Audio output channels	9.2 channels
Dynamic power per channel (6 Ohm)	180 W
Power output per channel (20-20KHz@8 Ohm)	105 W
Display	-
HDCP version	2.2
Apple docking	No
Product color	Black
Audio decoders	DTS-HD Master Audio, Dolby Atmos, Dolby Surround, Dolby TrueHD
Audio formats supported	AAC, ALAC, FLAC, MP3, WAV, WMA
Supported radio bands	AM, FM
Internet radio services supported	Amazon Music, Deezer, Pandora, Spotify, Tidal, TuneIn
HDMI in	8
Composite video in	3
Ethernet LAN (RJ-45) ports	1
Component video (YPbPr/YCbCr) in	2
Supported video modes	480i, 576i
Power consumption (standby)	0.1 W
Power consumption (typical)	600 W
Package weight	14600 g
Cables included	AC
Speakers connectivity type	Binding post

Weight and Dimensions

Depth	379 mm
Width	434 mm
Height	167 mm
Weight	12100 g
