o

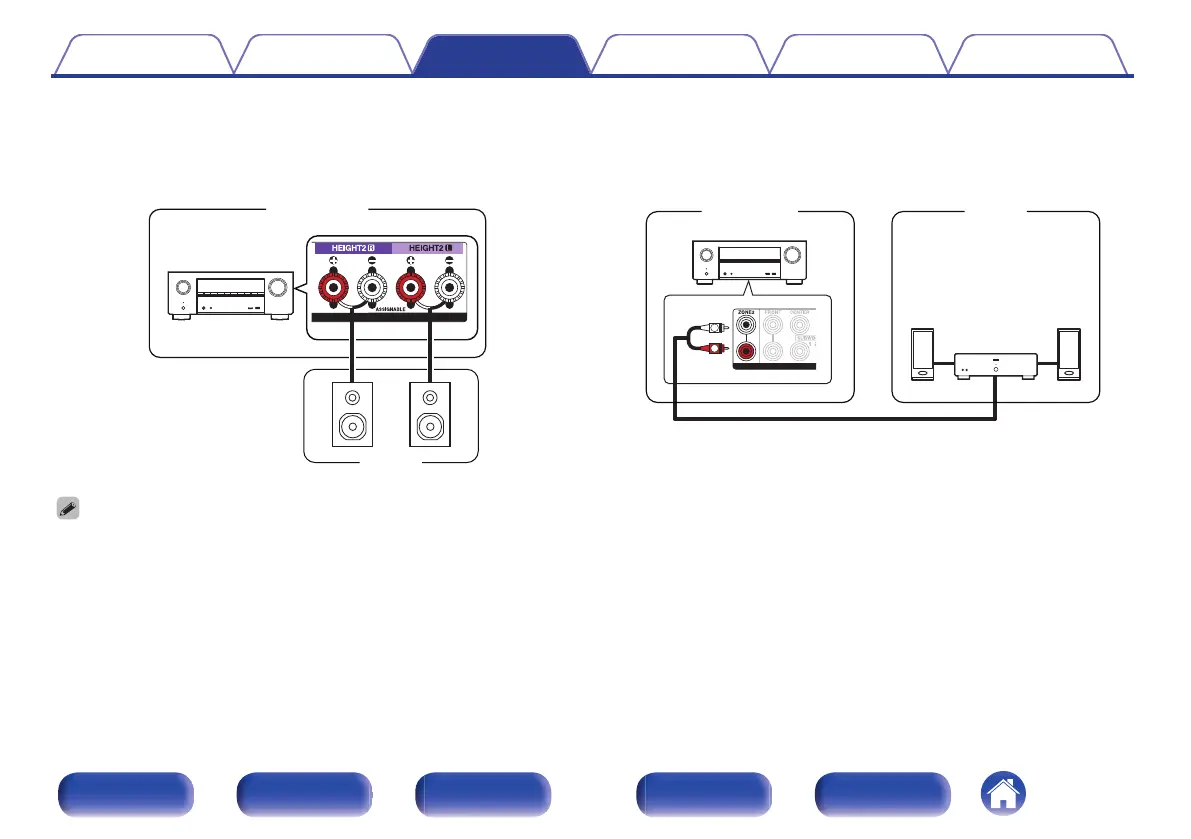

Connection 2: Connecting using a speaker
output terminal
When “Assign Mode” is set to “ZONE2” in the menu, ZONE2 audio is
output from the HEIGHT2 speaker terminal. (v p. 208)
.
MAIN ZONE
(L)
ZONE2
(R)
This unit
o
Connection 3 : Connection using an external
amplifier (ZONE2)
The audio signals of this unit’s ZONE2 audio output connectors are
output to the ZONE2 amplifiers and played on these amplifiers.
.
MAIN ZONE ZONE2
AUX IN
This unit
Power amplifier
R
L
0
If the input for ZONE2 is set to “Source”, all types of input signals can be listened to from ZONE2.
0
If the input for ZONE2 is set to a specific source (like CBL/SAT), only analog signal or 2-channel PCM signal input (from HDMI connectors or digital connectors (OPTICAL/
COAXIAL)) can be listened to from ZONE2. To playback HDMI signal other than 2-channel PCM in ZONE2, set “HDMI Audio” to “PCM”. (v p. 237)
2-channel PCM signals are output from a device connected to the input source selected for ZONE2 and can be played back in ZONE2.
In this case, the MAIN ZONE audio will also be converted to 2-channel PCM signals if the MAIN ZONE and ZONE2 are set to the same input source. However, depending on
the playback device, the playback signal may not be converted to PCM even if this setting is configured.
0
The menu screen is not output in ZONE2.
Contents Connections Playback Settings Tips Appendix
156
