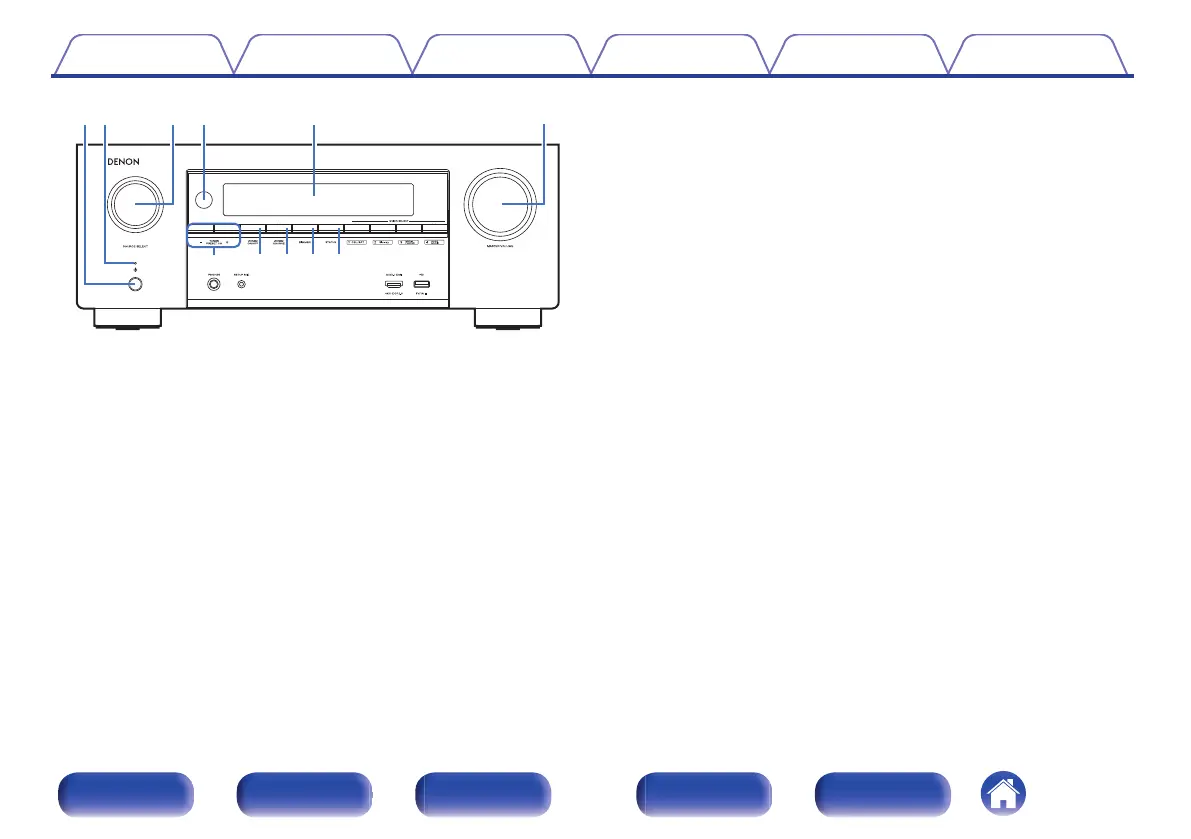

A
Power operation button (X)
Used to turn the power of the MAIN ZONE (room where this unit is
located) on/off (standby). (v p. 82)
B
Power indicator
This is lit as follows according to the power status:
0
White: Power on
0
Off: Normal standby
0
Red:
0
When “HDMI Pass Through” is set to “On” (v p. 181)
0
When “HDMI Control” is set to “On” (v p. 183)
0
When “Network Control” is set to “Always On” (v p. 229)
C
SOURCE SELECT knob
This selects the input source. (v p. 82)
D
Remote control sensor
This receives signals from the remote control unit. (v p. 9)
E
Display
This displays various pieces of information. (v p. 19)
F
MASTER VOLUME knob
This adjusts the volume level. (v p. 83)
G
Tuner preset channel buttons
(TUNER PRESET CH +, –)
These select preset broadcast stations. (v p. 96)
H
ZONE2 ON/OFF button
This turns the power of ZONE2 (another room) on/off. (v p. 157)
I
ZONE2 SOURCE button
This selects the input source for ZONE2. (v p. 157)
J
DIMMER button
Each press of this switches the brightness of the display. (v p. 239)
K
STATUS button
Each press of this switches the status information that is shown on the
display.
