Denon AVR-X6800 User Manual

o

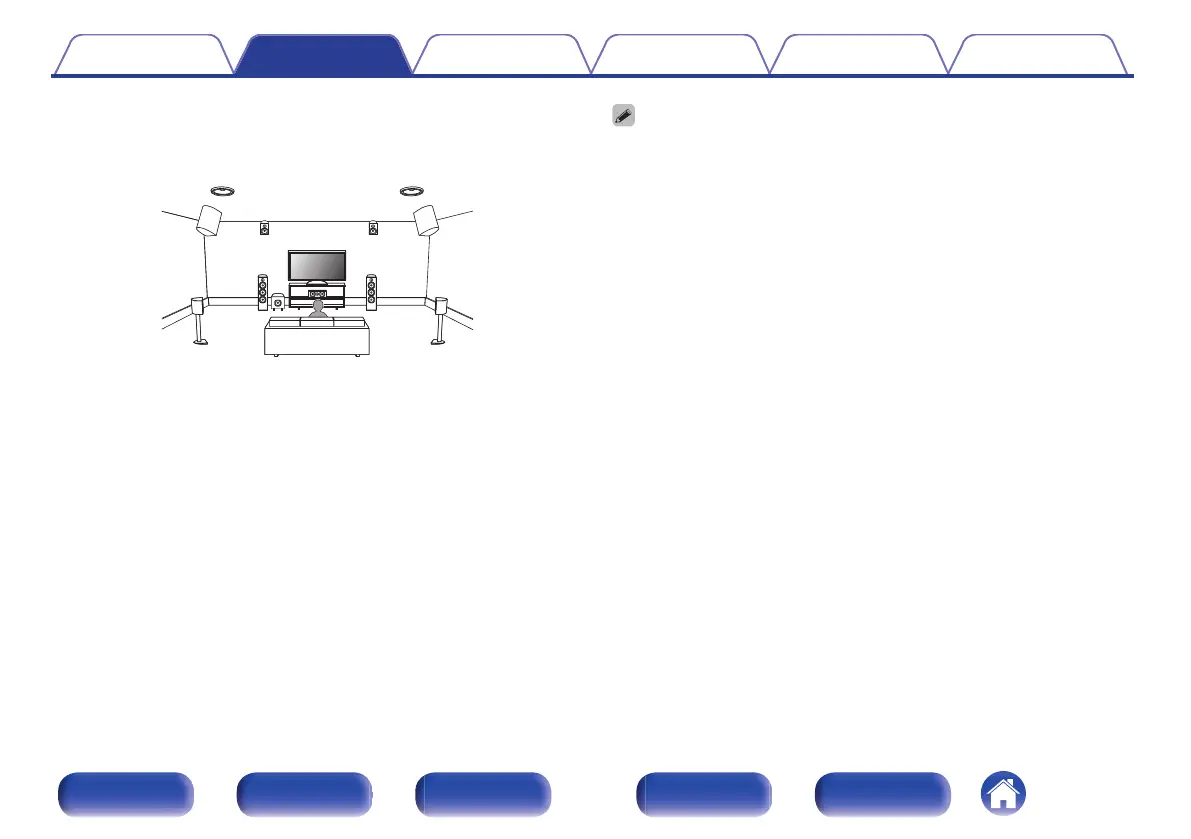

Example layout when using three sets of
height speakers
C
FL FR
SW
RSLS
TML TMR
FHL FHR
RHL RHR
For each speaker connection, refer to the following.
0
“Connecting speakers to the speaker terminals” (v p. 44)
0
“Connecting an external power amplifier” (v p. 45)
0
Set Speaker Layout in the menu as follows. (v p. 226)
1. Center: Yes
2. Surround: Yes
3. Height Speakers: 6 spkrs
4.
Front Layout: Front Heightz
5.
Middle Layout: Top Middlez
6.
Rear Layout: Rear Heightz
7. Subwoofers: 1 spkr
z
The front height speakers, top middle speakers and rear height speakers can be
changed to other height, ceiling or Dolby Atmos Enabled speakers in the
“Speaker Layout” - “Layout” settings.
