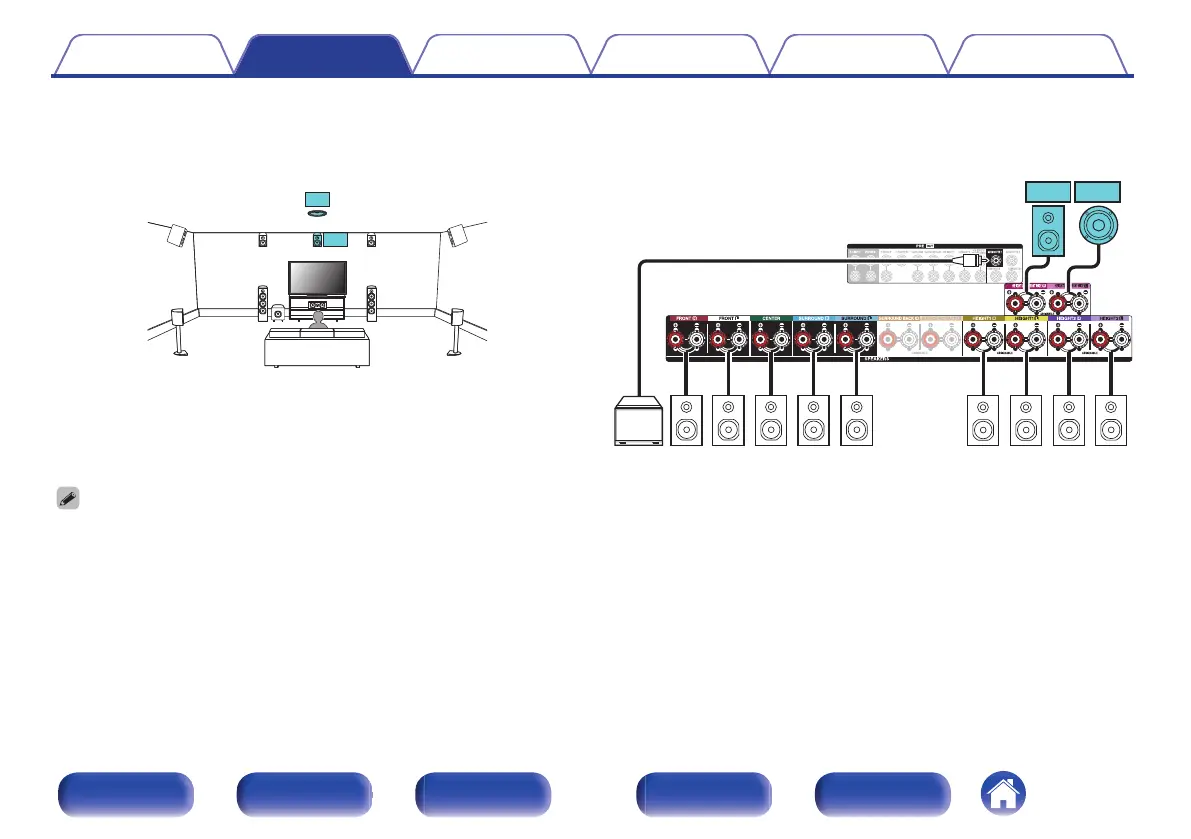

Example layout for AURO-3D 11.1 channel system
This speaker configuration is optimized for AURO-3D playback.
FL FR
SW
SRSL
C
FHL FHR
CH
SHL SHR
TS
For each speaker connection, refer to the following.
0
“Connecting speakers to the speaker terminals” (v p. 44)
0
“Connecting an external power amplifier” (v p. 45)
0
Set Speaker Layout in the menu as follows. (v p. 226)
1. Center: Yes
2. Surround: Yes
3. Height Speakers: 6 spkrs
4. Front Layout: Front Height
5. Middle Layout: Surround Height
6. Rear Layout: No
7. TS/CH: TS/CH
8. Subwoofers: 1 spkr
CSRSL
SW
FR FL
FHR FHL
SHR SHL
CH TS
