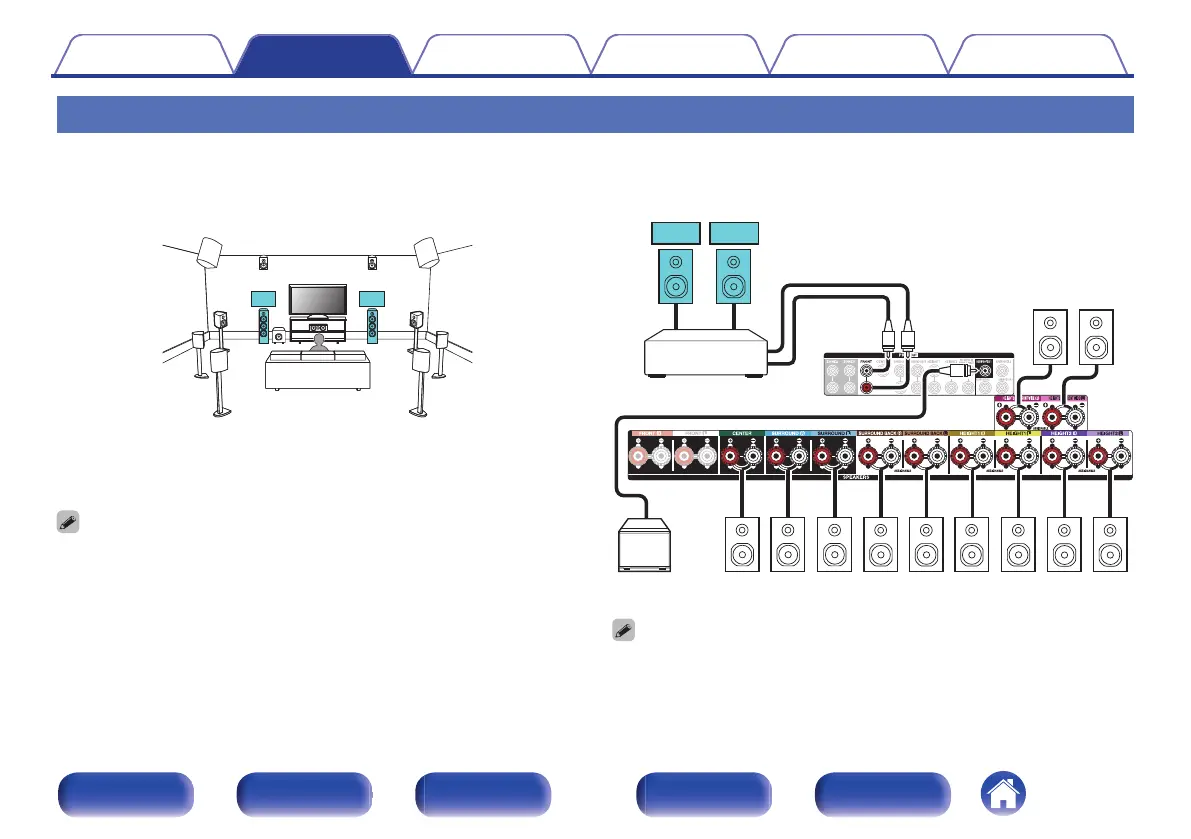

Connecting 13.1-channel speakers
This system, which is based on a 5.1-channel system, plays back up to 13.1-channels at the same time.
o
Example layout when using surround back, Front Wide and two set of height speakers
C
FL FR
SW
RSLS
FHL FHR
RHL RHR
FWL FWR
SBL
SBR
For each speaker connection, refer to the following.
0
“Connecting speakers to the speaker terminals” (v p. 44)
0
“Connecting an external power amplifier” (v p. 45)
0
Set Speaker Layout in the menu as follows. (v p. 226)
1. Center: Yes
2. Surround: Yes
3. Surround Back: 2 spkrs
4. Front Wide: Yes
5. Height Speakers: 4 spkrs
6. Front Layout: Front Height
7. Rear Layout: Rear Height
8. Subwoofers: 1 spkr
FHR FHL
FWR FWL
RHR RHL
C SR SL SBR SBL
SW
FR FL
Power amplifier
0
When connecting 13.1 channel speakers, an external amplifier needs to be
connected to the Front channel or the Front Wide channel at minimum. Set
“Connection” to “Pre-out Only” for your preferred channel. (v p. 226)
