Denon AVR-X6800 User Manual

o

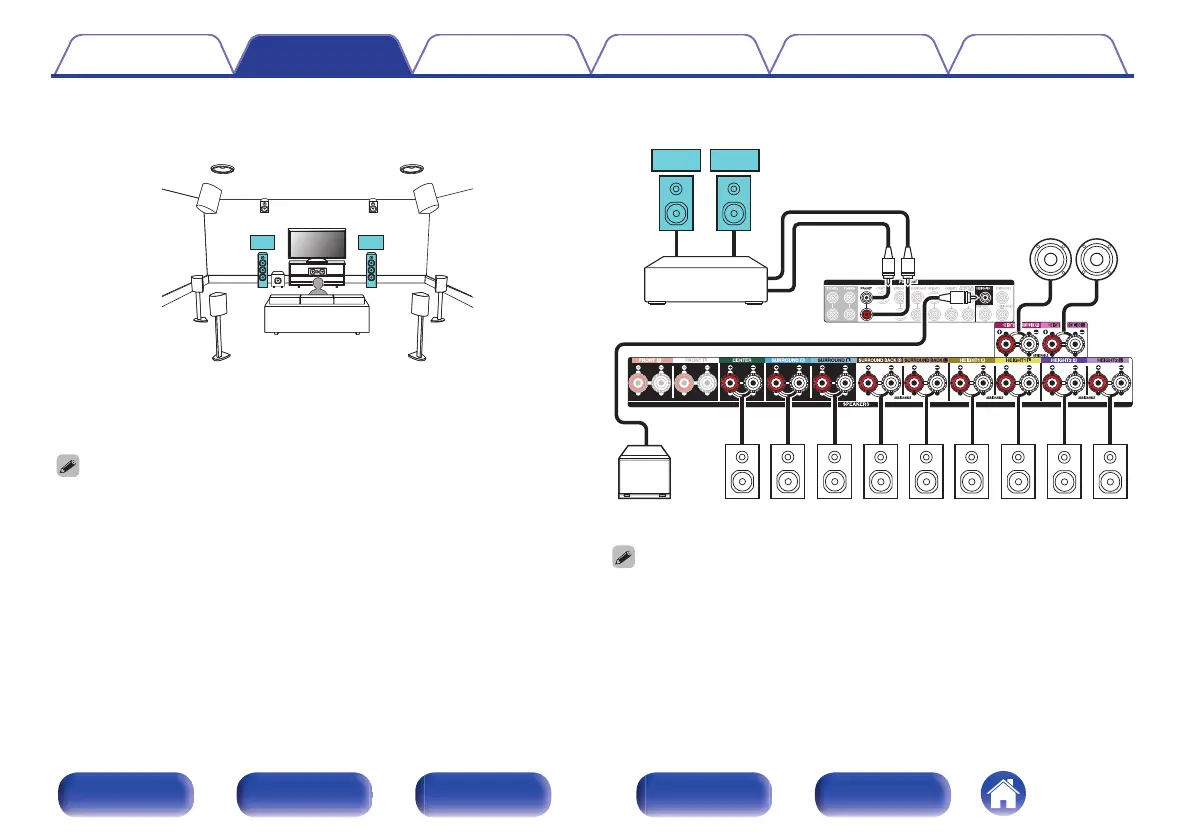

Example layout when using surround back and three sets of height speakers
C
FL FR
SBL
SBR
SW
RSLS
TML TMR
FHL FHR
RHL RHR
For each speaker connection, refer to the following.
0
“Connecting speakers to the speaker terminals” (v p. 44)
0
“Connecting an external power amplifier” (v p. 45)
0
Set Speaker Layout in the menu as follows. (v p. 226)
1. Center: Yes
2. Surround: Yes
3. Surround Back: 2 spkrs
4. Height Speakers: 6 spkrs
5. Front Layout: Front Height
6. Middle Layout: Top Middle
7. Rear Layout: Rear Height
8. Subwoofers: 1 spkr
FHR FHL
TMR TML
RHR RHL
C SR SL SBR SBL
SW
FR FL
Power amplifier
0
When connecting 13.1 channel speakers, an external amplifier needs to be
connected to the Front channel or the Front Wide channel at minimum. Set
“Connection” to “Pre-out Only” for your preferred channel. (v p. 226)
Contents Connections Playback Settings Tips Appendix
63
Front panel Display Rear panel Remote Index
