(1) Connecting the line input connector (LINE IN) – Active subwoofer (DSW-76)
Connect this to the pre-out connector for the active subwoofer on the AV surround receiver (or amplifier)
(“SUBWOOFER PREOUT”, “MONO OUT”, etc.) using the included connection cord (3-meter RCA pin-plug
cord).
CAUTION:
• If this connector is connected to the pre-out connector for the surround center channel of a stereo amplifier
or AV surround receiver (or amplifier), only the center channel’s bass sound will be produced, so the overall
bass sound will be insufficient.
CAUTION:
• Do not plug the power supply cord into an AC power outlet until all connections have been completed.
• Check the left and right channels and be sure to interconnect them properly, L (left) to L, R (right) to R.
• Plug the power supply cord in securely. An insecure connection could cause noise.
• Note that clamping pin-plug cords and power supply cords together or running pin-plug cords near the power
transformer could result in humming or noise.
• Check the polarities of the speakers and AV surround receiver (or amplifier) and be sure to interconnect
properly. Connect the red terminal on the speaker to the “+” speaker terminal on the AV surround receiver
(or amplifier), the black terminal on the speaker to the “–” speaker terminal on the AV surround receiver (or
amplifier).

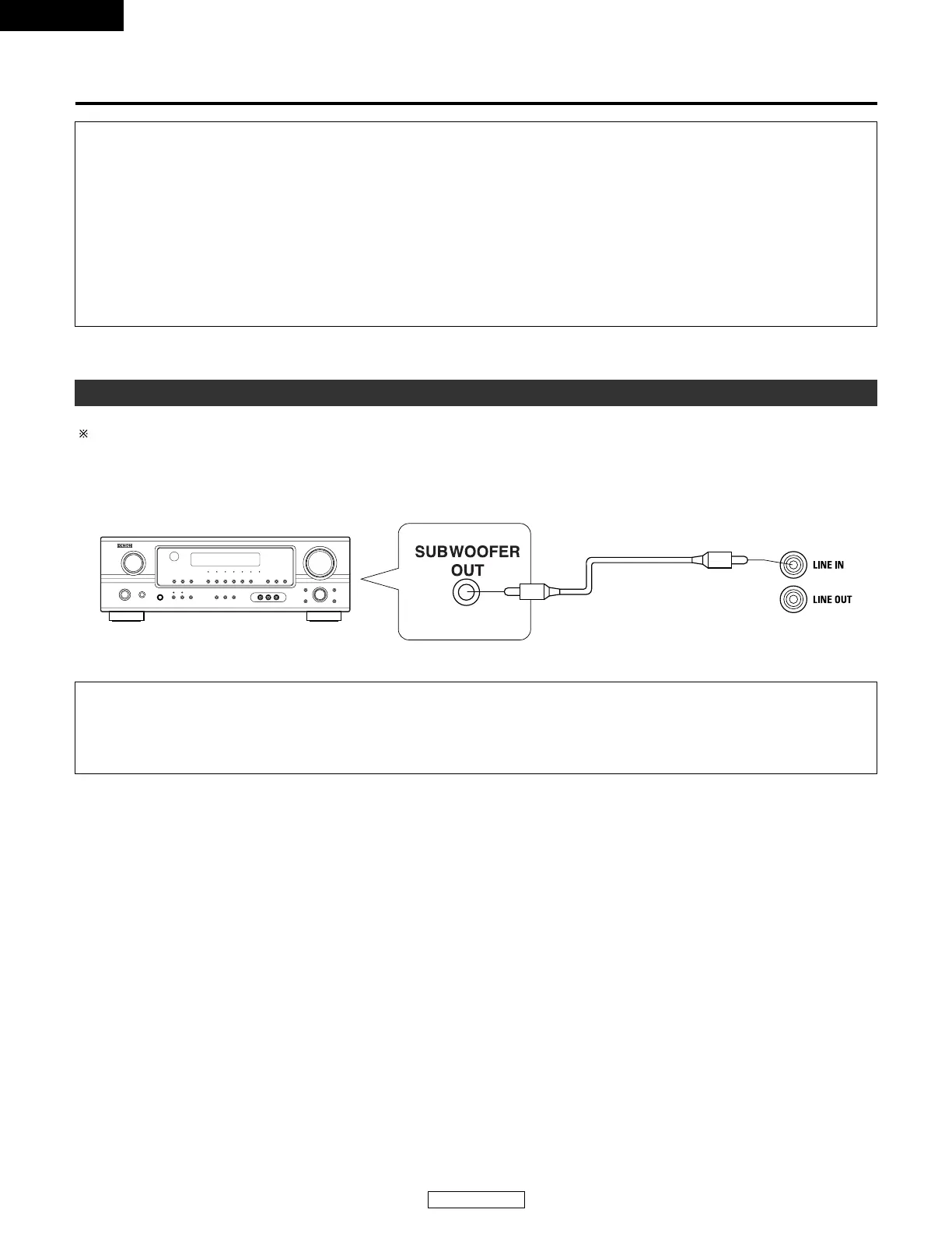

Active subwoofer (DSW-76)
Included connection cord
(3-meter RCA pin-plug cord)
CONNECTIONS
To Next Page
