CD PLAYER SECTION

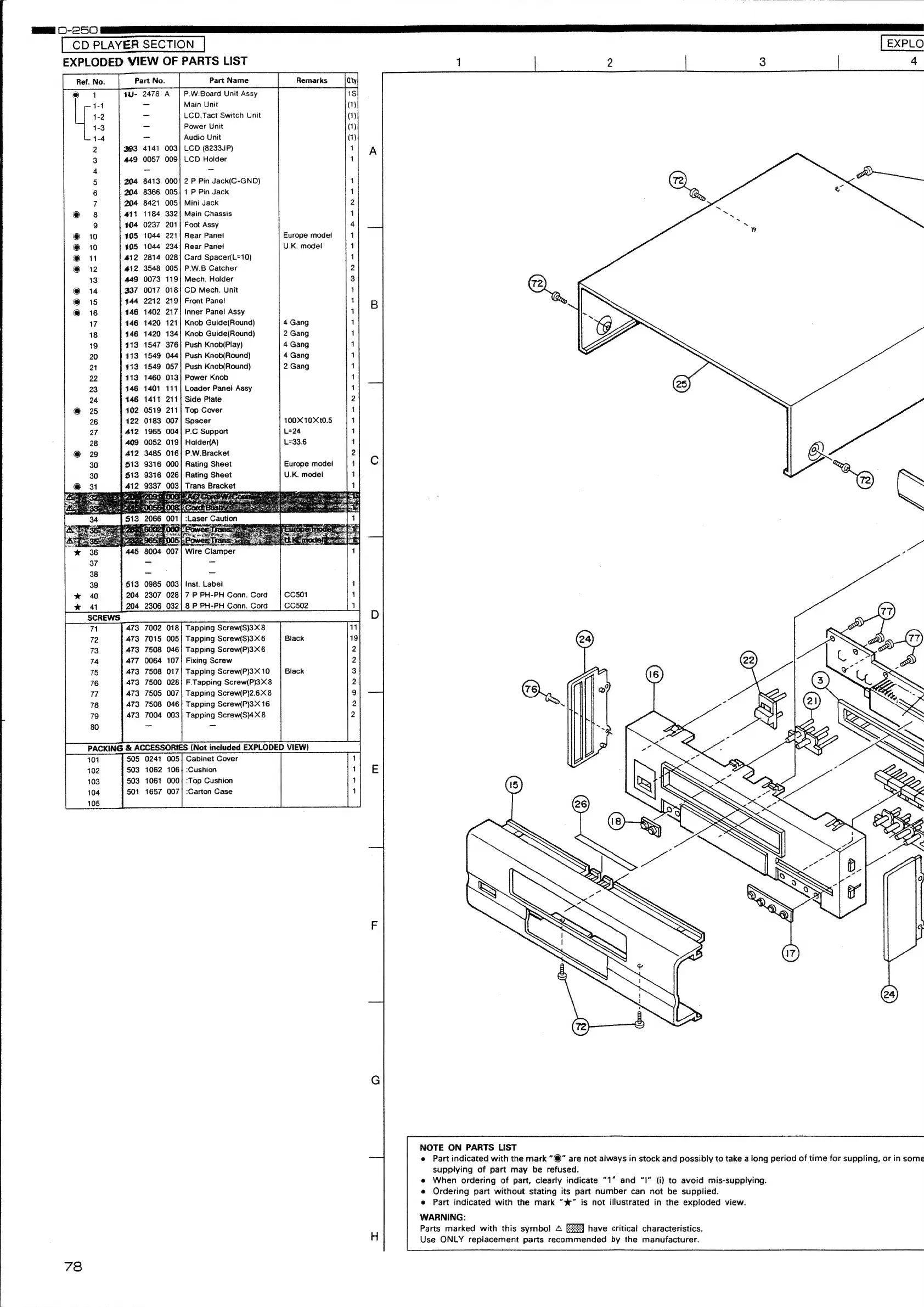

EXPLODED VIEW OF PARTS LIST
ee
ity
P.W.Board Unit Assy 1S
Main Unit
LCD,Tact Switch Unit
Power Unit
Audio Unit
LCD (8233JP)
LCD Holder
2 P Pin Jack(C-GND)
1 P Pin Jack
Mini Jack
Main Chassis
Foot Assy
Rear Panel Europe model
Rear Panel U.K. model
Card Spacer(L=10)
P.W.B Catcher
Mech. Holder
CD Mech. Unit
Front Panel
Inner Panel Assy
Knob Guide(Round)
Knob Guide(Round)
Push Knob(Play)
Push Knob(Round)
Push Knob(Round)
Power Knob
Loader Panel Assy
Side Plate
Top Cover
Spacer 100X10Xt0.5
P.C Support L=24
Holder(A) L=33.6
P.W.Bracket
Rating Sheet Europe model
Rating Sheet U.K. model
©G®©OGH ©
®©@®
513 0985 Inst. Label
| 204 2307 7 P PH-PH Conn. Cord
Tapping Screw(S)3X8
Tapping Screw(S)3X6
Tapping Screw(P)3X6
Fixing Screw
Tapping Screw(P)3X 10
F.Tapping Screw(P)3X8
Tapping Screw(P)2.6X8
Tapping Screw(P)3X 16
Tapping Screw(S)}4X8
PACKING & ACCESSORIES (Not included EXPLODED VIEW)
505 0241 005| Cabinet Cover
503 1062 106] :Cushion
503 1061 000] :Top Cushion
501 1657 007] :Carton Case
NOTE ON PARTS LIST
Part indicated with the mark “®” are not always in stock and possibly to take a long period of time for suppling, or in some
supplying of part may be refused.
When ordering of part, clearly indicate “1° and “I” (i) to avoid mis-supplying.
Ordering part without stating its part number can not be supplied.
Part indicated with the mark “*” is not illustrated in the exploded view.
WARNING:
Parts marked with this symbol A have critical characteristics.
Use ONLY replacement parts recommended by the manufacturer.
