This manual contains installation, operation, care,
repair instructions and user service information
for the RAMVAC® Osprey™ Dental Compressor.
The Osprey compressors are designed to provide
trouble-free service when installed, operated
and cared for according to the procedures set
forth in this manual. They are NFPA 99C Level 3
dental compressors. Two versions of Osprey are
available: basic and smart models.
To ensure proper installation, carefully read
all the instructions contained in this manual
prior to installing, operating, and servicing.
For safety, pay close attention to all warnings,
cautions, notices and notes.
Section I Introduction
Before starting installation procedures, review
the illustration to become familiar with the
components of the basic and smart compressor
models (Figure 1).
After the compressor is installed, review the
features, operation procedures, and care
guidelines with the doctor’s sta .
Leave this manual in the doctor’s o ice.
Product Overview
• Installation by an authorized RAMVAC
dealer service technician is recommended.
• For any questions about an order, please
contact a RAMVAC customer service
representative at 866-DTE-INFO.
NOTICE

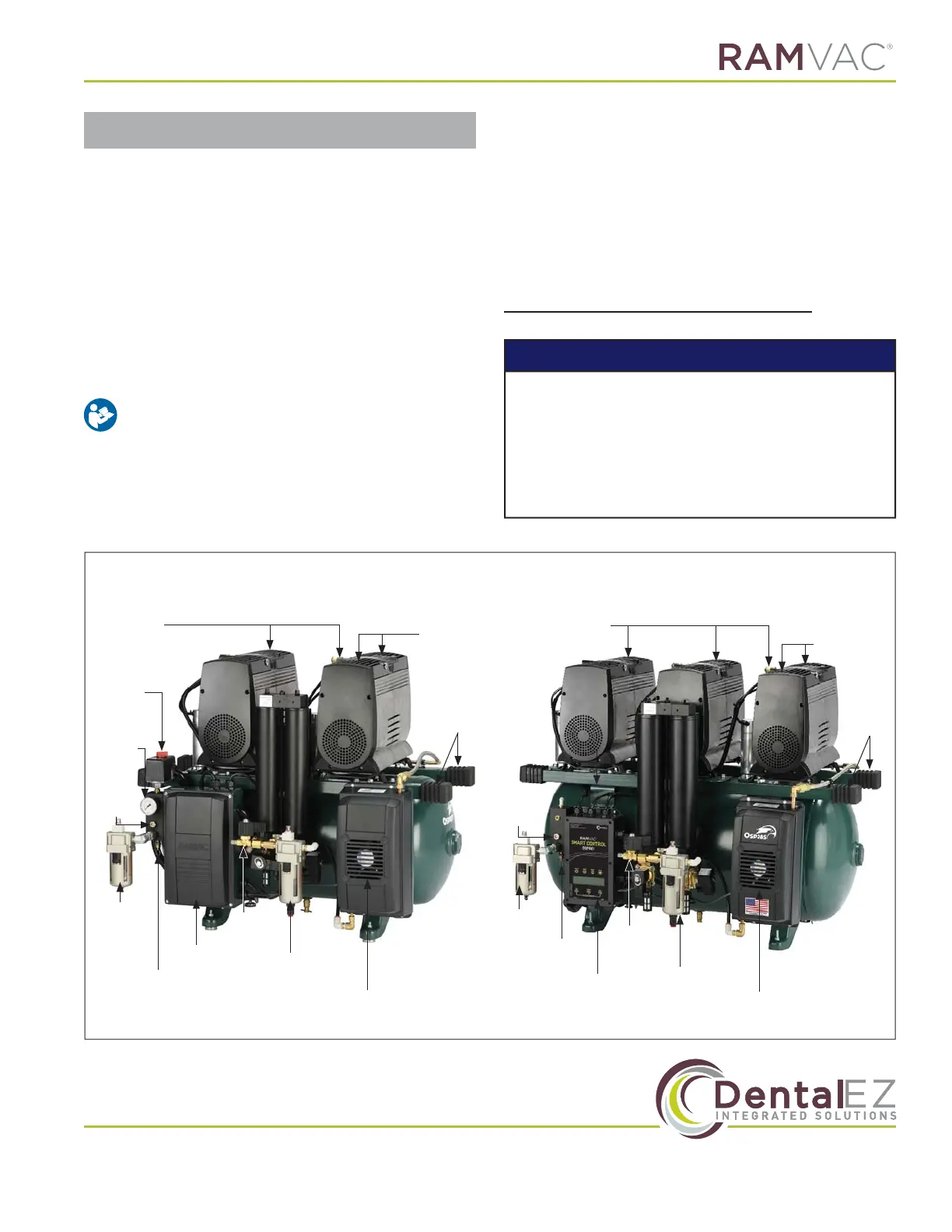

Figure 1. Main components of the Osprey compressor (basic and smart models)
Mechanical
Pressure
Switch
OSP25B Compressor (Basic Model)
Pressure
Gauge
Moisture
Indicator
Particulate
Filter
Electrical
Box
Unloader
Valve
Coalescing
Filter
Moisture
Indicator
Particulate
Filter
Unloader
Valve
Coalescing
Filter
Heat Exchanger
& Fan
Rubber
Hand
Grips
Safety
Valve
Intake Filters
(2 per head)
Compressor
Heads
OSP28S Compressor (Smart Model)
Safety
Valve
C2
Smart Control
Heat Exchanger
& Fan
Rubber
Hand
Grips
Intake Filters
(2 per head)
Compressor
Heads
To Next Page
