WIRING UP YOUR RADIO
***IMPORTANT*** Please make sure the yellow wire is connected to the permanent live feed
(+12V) of the vehicle battery for the preset memory's Disconnect negative battery terminal
from battery before starting installation. Consult the vehicle owner's manual for proper
instructions.
1.Install the Radio using the Din-Front Mount or
Din-Rear Mount Method.
2.The Radio is equipped with ISO connector. ISO
connector is the universal connector for the
connection of car radio.
3.Make sure that you have a good chassis ground.
Good ground connections will eliminate most
electrical noise problems.
4.Please seek professional advice if you are in
experienced installing this type of product.

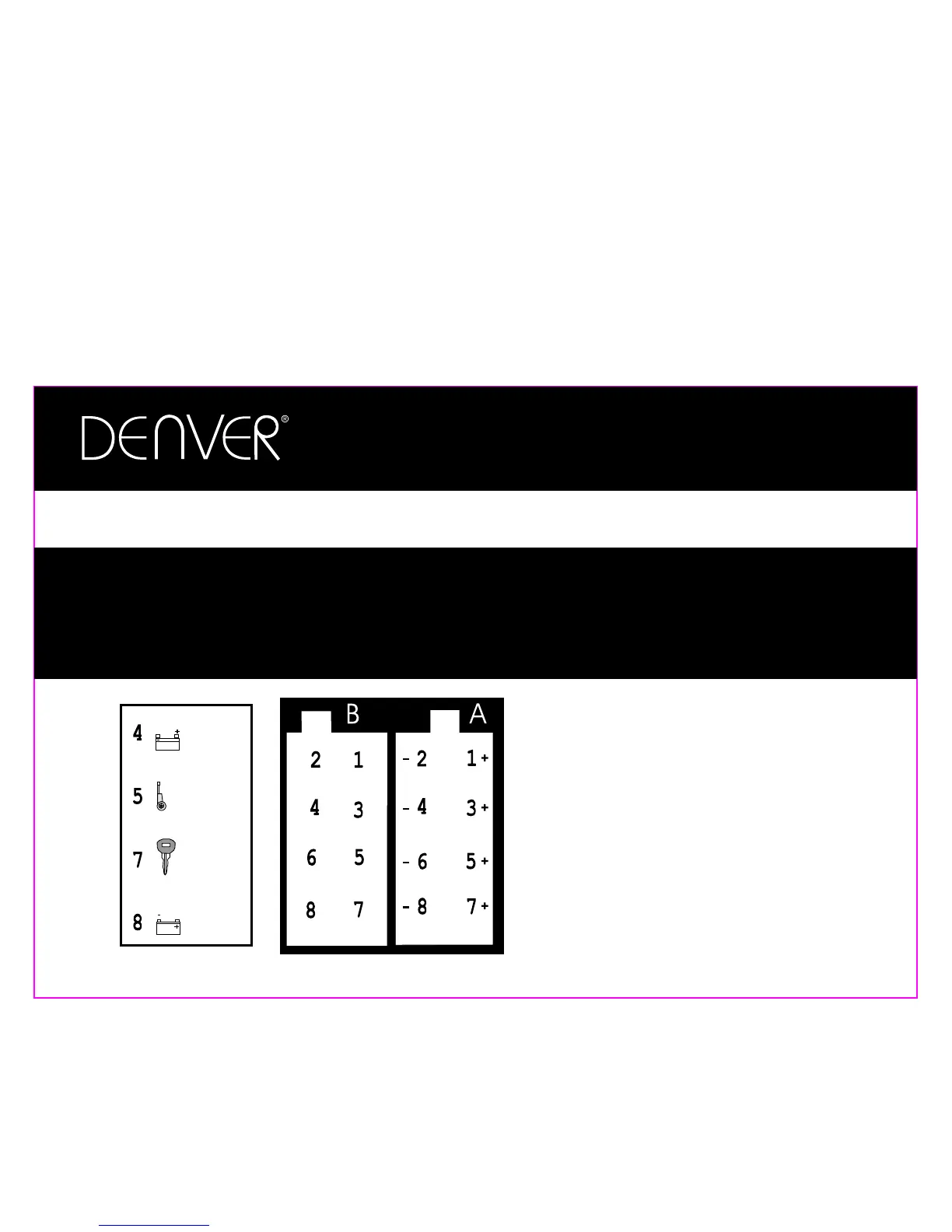

YELLOW
Connect to
the B+12V
BLUE/WHITE
Connect to
Auto Antenna
RED
Connect to
ignition Key
BLACK
Ground
Rear Right
Front Right
Front Left
Rear Left
Permanent
+12V Fused
Auto
Antenna
GND
Fused
Ignition
Key +12V
