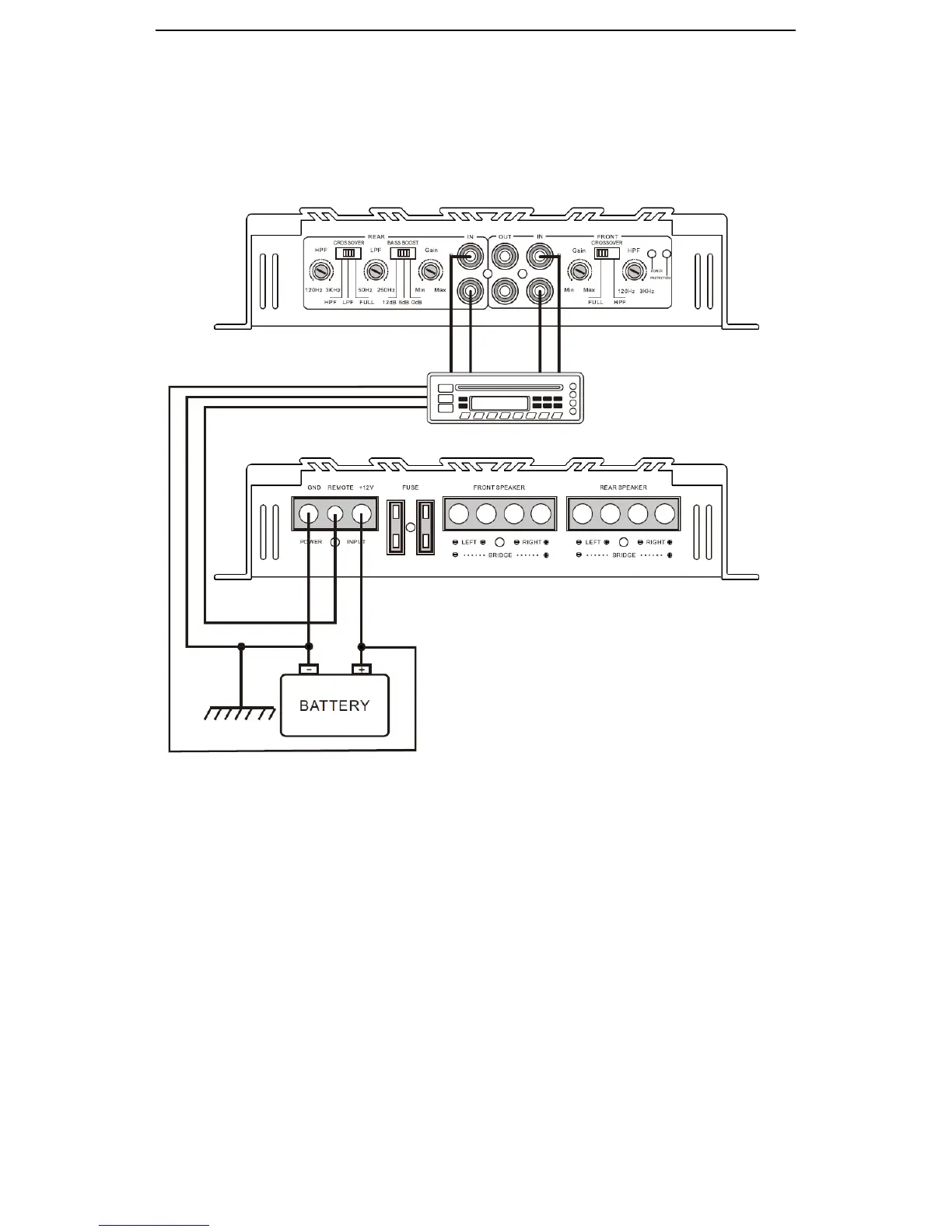

Power Connection Leads
Notes on the power supply
Connect the + 12V power input lead only after all other leads have been connected.
Be sure to connect the ground wire of the unit securely to a metal part of the car.
A lose connection may cause a malfunction of the amplifier.
REMOTE: The unit is turned on by applying + 12Volts to this terminal This terminal dose
not draw heavy current like the two power terminal so a thinner connecting wire is
acceptable. Standard 18 GAUGE is fine and the standard colour is yellow. If the radio is
equipped with a power antenna control wire, it can drive this terminal. If the power
antenna wire is already in use, you can still splice into it. With this method, the unit will
turn on automatically with the radio. Use the power supply lead with a fuse attached
whose value is the same as original fuse.
Place the fuse in the power supply lead as close as possible to the car battery.
During a full power operation, Maximum current will run through the system. Therefore,
Make sure that the leads to be connected to the + 12v and GND terminals of the unit
respectively must be larger than 10-Gauge (AWG. 10).
