EX, SGX VIBRATOR MOTORS
Bearing Removal (Cont’d)

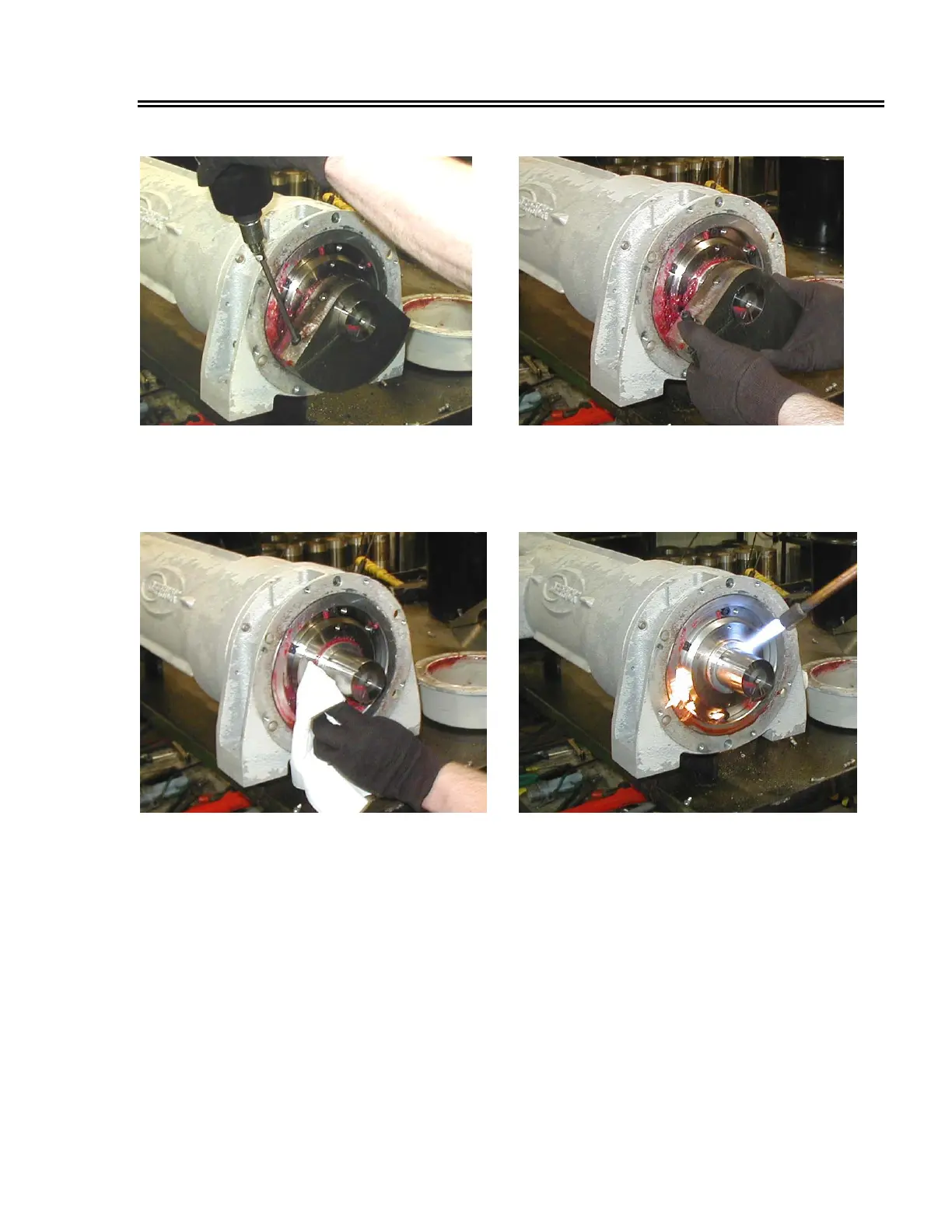

3 - Using a 6mm hex wrench, loosen socket
head set screw securing outboard eccentric
weight(s) to motor shaft. Note that more
than one eccentric weight may be installed
in this position.
4 - Remove outboard eccentric weight(s)
from motor shaft.
5 - Using a soft absorbent cloth, remove
excess lubricant from components. Do not
use compressed air for cleaning as this may
drive contaminants into motor.
6 - Using a torch with a diffused flame, gently
heat spacer for no more than 10 seconds to
approximately 200°-230°F (93°-110°C) to
facilitate removal.
01 May 09 21
