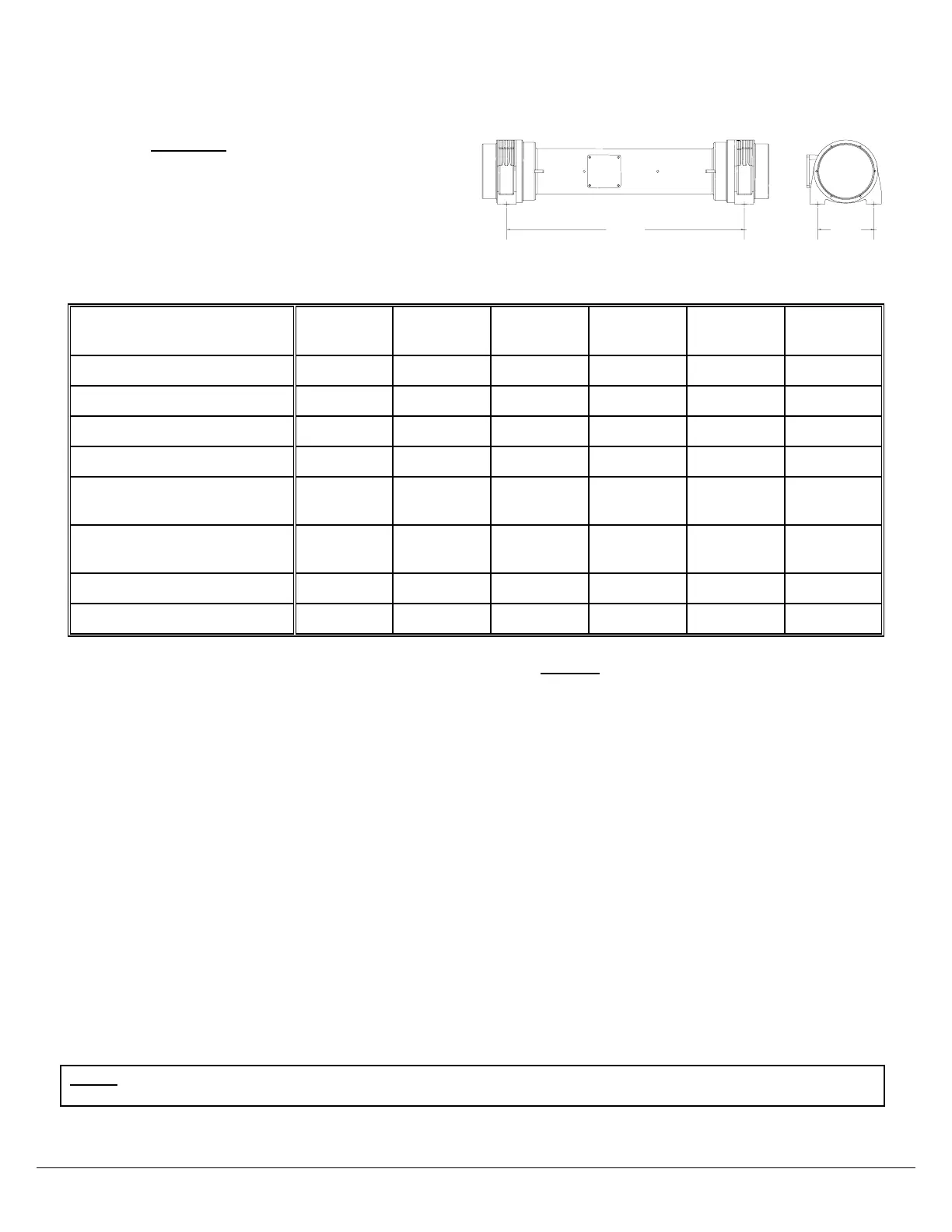

DERRICK
®
CORP. - MOTOR DATA SHEET
JFS M:\Motor Docs\Pe-s-250.doc (Maintenance)
U:\Motor PDFs\Pe-s-250.pdf (view/print)
DOC# PE-S-250-03
Wire Code
Power Black, White & Red
Ground Green
Thermal Switch Orange & Blue
1500 RPM
MODEL: SGX VIBRATOR - 50 HZ - (EXPLOSION PROOF TERMINAL BLOCK STYLE)
Vibrator Model SGX-
215/220-50
SGX-
230/240-50
SGX-
380/400-50
SGX-
415-50
SGX-
440-50
SGX-
690-50
Voltage [Volts] 215/220 230/240 380/400 415 440 690
Phase / Frequency [Hz] 3/50 3/50 3/50 3/50 3/50 3/50
Speed [RPM] 1500 1500 1500 1500 1500 1500
Rated Horsepower [HP] 2.5 2.5 2.5 2.5 2.5 2.5
Current @ Idle / Full Load
[Amps]
3.6 / 7.1 3.3 / 6.5 2.1 / 4.0 1.9 / 3.8 1.8 / 3.6 1.1 / 2.3
Locked Rotor Current [Amps] /
Locked Rotor Code
28.4 / D 26.0 / D 15.6 / D 15.1 / D 14.2 / D 9.1 / D
Fuse - Non Delay [Amps] 20 20 12 10 10 7.5
Overload protection [Amps] 8 7 5 4 4 3.5
Data below is common to all model SGX-50 vibrators.
Insulation class F
Ambient temperature 55º C
Operating temperature code T3C
Maximum temperature rise 46º C by resistance
Duty CONTINUOUS
Thermal switch rating Pilot Duty 720VA, 110 – 600VAC
Thermal switch type Normally Closed
Thermal switch temperature Opens @ 145º C / Closes @ 140º C
Power factor - operations 99.13
Efficiency - running 98%
Service Factor 1.0
NEMA design TENV
Ingress Protection IP 56
Weight 415 lbs.-(189 kg) STEEL / 290 lbs.-(132 kg) ALUMINUM
Hazardous location (listed as) CLASS 1 GROUPS C, D / CLASS 2 GROUPS E, F, G
Listing agency UL
Hazardous location (listed as) EExd IIB T3
Listing agency DEMKO
NOTE:
Derrick
®
vibrators are fixed load devices with no means of altering the loading or power consumption.
Power factor correction capacitors are not recommended for this motor.
03/24/05 – Rev. 3 Page 1 of 1
