Desa M36B - Product Specifications

www.desatech.com
108795-01V6
PRODUCT SPECIFICATIONS
GAS RATING - NATURAL
M36(B,H),VM36(B,H) M42(B,H),VM42(B,H)
Max. Input Rating: 40,000 Btu/Hr 45,000 Btu/Hr
Manifold Pressure: 3.5" WC (.87 kPa) 3.5" WC (.87 kPa)
Minimum Supply Pressure: 4.5" WC (1.12 kPa) 4.5" WC (1.12 kPa)
Maximum Supply Pressure: 10.5" WC (2.66 kPa) 10.5" WC (2.66 kPa)
Orice Size: # 30 # 29
GAS RATING - PROPANE/LP
M36P(B,H),VM36P(B,H) M42P(B,H),VM42P(B,H)
Max. Input Rating: 40,000 Btu/Hr 45,000 Btu/Hr
Manifold Pressure: 10" WC (2.49 kPa) 10" WC (2.49 kPa)
Minimum Supply Pressure: 11" WC (2.74 kPa) 11" WC (2.74 kPa)
Maximum Supply Pressure: 13" WC (3.23 kPa) 13" WC (3.23 kPa)
Orice Size: # 52 # 51
S
T
P
Q
R
X
Outside Air
Kit Location
(Optional)
K
7"
J
I
M
L
V
13.5"
1.5"
Glass Door
(Optional)
W
O
N
Alternate Gas
Supply Inlet
7"
G
H
F
A
Stand Off
Collar
For Use With
6"Ø Type B-1
Ve nt Pipe Only
B
E
D
C

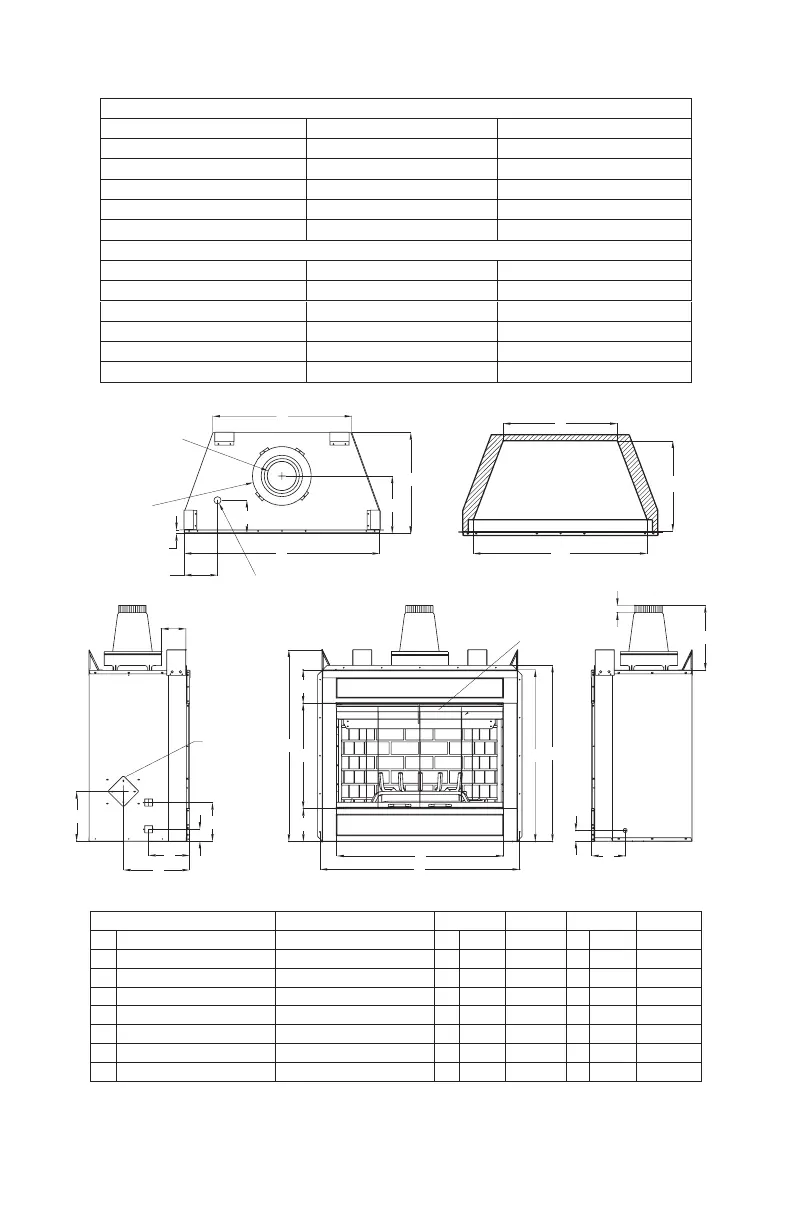

DIMENSIONS
HEARTH AREA
7"
Figure 2 - Appliance Dimensions
Model 36 Model 42 Model 36 Model 42 Model 36 Model 42
A 29" 36" I 40
1
/
4
" 44
1
/
4
" Q 13
7
/
8
" 14"
B 5/8" 5/8" J 21" 24" R 10
1
/
2
" 12
1
/
2
"
C 41" 48" K 8" 9" S 2
1
/
2
" 2
1
/
2
"
D 12" 14" L 34
3
/
4
" 42" T 8
1
/
8
" 8
1
/
8
"
E 21
1
/
4
" 23" M 42" 49" U 11" 12
3
/
4
"
F 22
1
/
4
" (24" w/o Brick) 29
1
/
4
" (31" w/o Brick) N 36" 40" V 7" 7"
G 32
5
/
8
" (34" w/o Brick) 39
1
/
2
" (41
1
/
4
" w/o Brick) O 37" 41" W 2
1
/
4
" 2
1
/
4
"
H 15
3
/
4
" (16
3
/
4
" w/o Brick) 17
3
/
4
" (18
3
/
4
" w/o Brick) P 8
5
/
8
" 10
1
/
2
" X 5" 4
1
/
2
"
