112126-01B
For more information, visit www.desatech.com
For more information, visit www.desatech.com
33
33

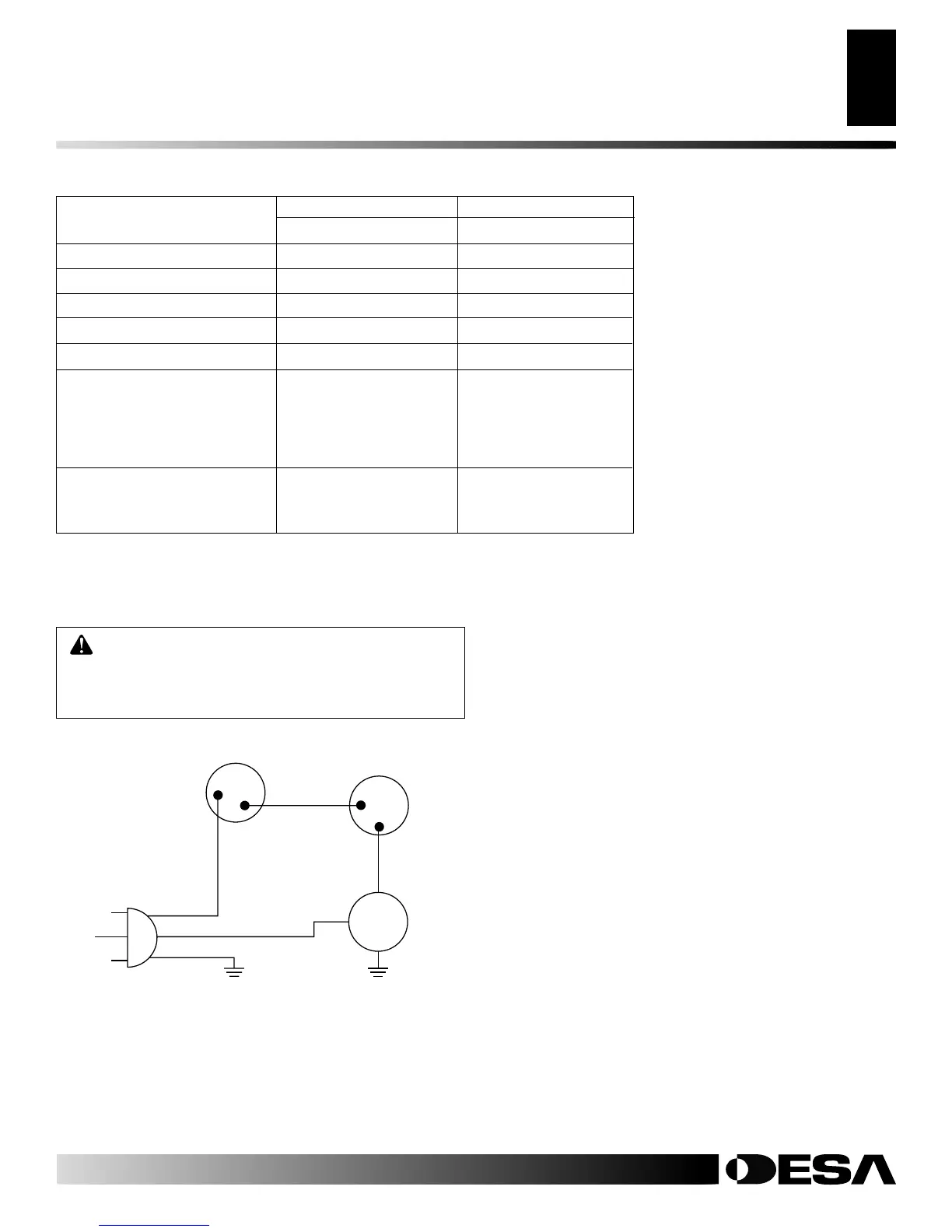

Figure 65 - Blower Wiring Diagram for Thermostat-Controlled
Models
WIRING DIAGRAM
CAUTION: Label all wires prior to disconnection
when servicing controls. Wiring errors can cause
improper and dangerous operation. Verify proper
operation after servicing.
SPECIFICATIONS
WIRING DIAGRAM
REPLACEMENT PARTS
SPECIFICATIONS
SDVBND SDVBPD
21,000-30,000 Btu/h 20,000-28,000 Btu/h
Gas Type Natural Propane/LP
Ignition Piezo Piezo
Manifold Pressure 3.5" w.c. 10.0" w.c.
Minimum Inlet Supply Pressure 5.0" w.c. 11.0" w.c.
Thermal Efficiency 70% 70%
Dimension, Inches/mm (HxWxD)
Stove and Burner System* 27" x 21
1
/2" x 18" 27" x 21
1
/2" x 18"
68.6 x 54.6 x 45.7 cm 68.6 x 54.6 x 45.7 cm
Carton 23
3
/4" x 33
1
/2" x 23
1
/2" 23
3
/4" x 33
1
/2" x 23
1
/2"
60.3 x 85.1 x 59.7 cm 60.3 x 85.1 x 59.7 cm
Weight, lbs/kg
Burner System 70 lbs/31.8 kg 70 lbs/31.8 kg
Shipping 75 lbs/34 kg 75 lbs/34 kg
* When installed in a model SCIVF/PSCIVF series cast iron stove body.
REPLACEMENT PARTS
Note:
Use only original replacement parts. This will protect your
warranty coverage for parts replaced under warranty.
PARTS UNDER WARRANTY
Contact authorized dealers of this product. If they can not supply
original replacement part(s), call DESA’s Technical Service De-
partment at 1-866-672-6040.
When calling DESA, have ready
• your name
• your address
• model and serial numbers of your burner system and stove
• how burner system or stove was malfunctioning
• type of gas used (propane/LP or natural gas)
• purchase date
Usually, we will ask you to return the part to the factory.
PARTS NOT UNDER WARRANTY
Contact authorized dealers of this product. If they can not supply
original replacement part(s), call DESA at 1-866-672-6040 for
referral information.
When calling DESA, have ready
• model number of your burner system and stove
• the replacement part number
Blue
Variable
Fan Switch
Fan Switch
(N.O.)
Green
White
On
110/115
V.A.C.
Blower
Motor
Black
Off
1
2
Black
To Next Page
