www.desatech.com
111986-01F 25
-
This brick liner kit is optional. You may pur-
chase brick liner from your local retailer or see
Accessories, page 36.
CAUTION: Always handle
1. Remove top and bottom louvers to allow
access to door latches.
2. Remove screen, unlock door latches and
open glass door. See Removing/Replac-
ing Glass Door, steps 1 and 2, page 24.
3. If installing brick liner in new replace,
go to step 4. If installing brick liner in an
existing replace, carefully remove logs,
lava rock, and ember material.
4. Remove three screws from deflector
shield on the inside top of rebox. Set
shield and screws aside.
5. Install rear brick panel rst. Rest bottom
edge of panel on back edge of grate (see
Figure 42).
6. Install left side brick panel by sliding it
between grate and side of rebox (see
Figure 43).
FIREPLACE
INSTALLATION
Continued

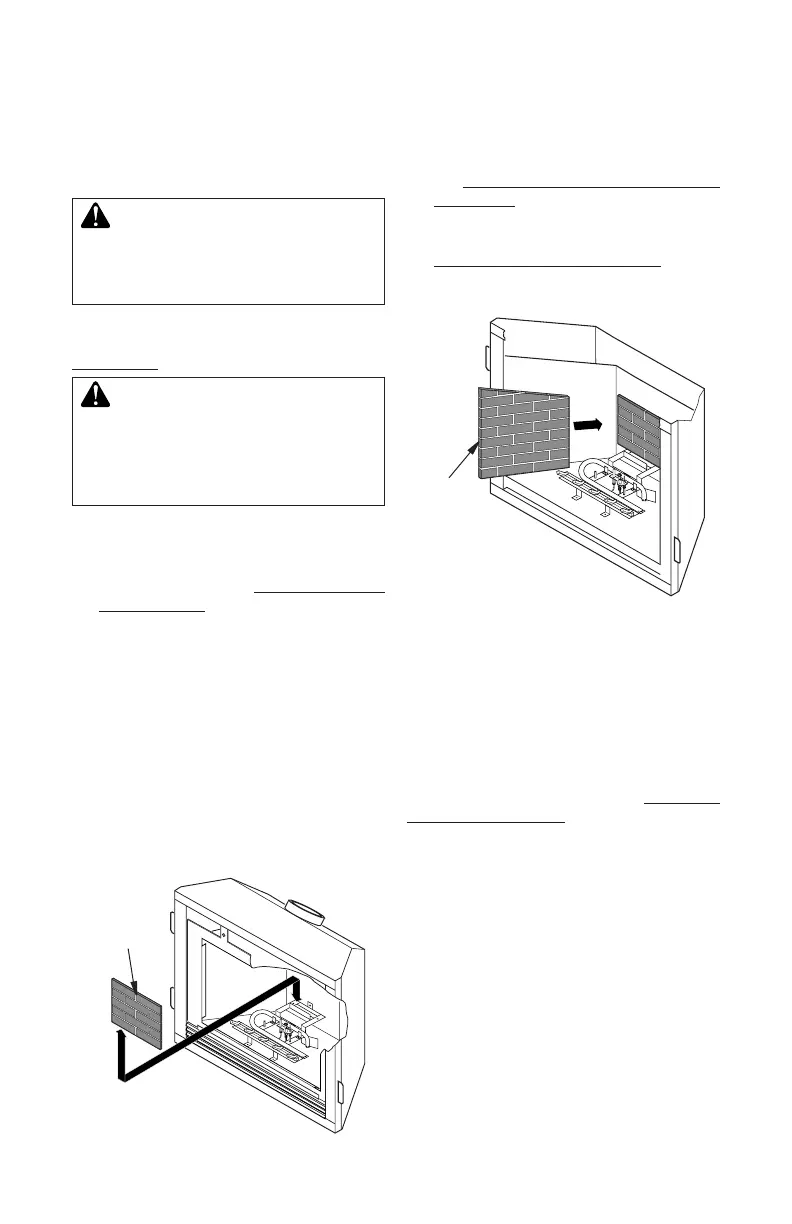

Figure 42 - Installing Rear Brick Panel
Rear Brick
Panel
Figure 43 - Installing Side Brick Panels
Left Side
Brick Panel
7. Install the right brick panel using the same
method described
8. Replace deector shield using screws
removed in step 4.
9. Install logs, lava rock, and ember material
see Installing Logs, Lava Rock and Glow-
ing Embers.
10. Close glass door, lock latches on top and
bottom of door and replace screen (see
Removing/Replacing Glass Door, steps 5
and 6, page 24).
11. Close top and bottom louvers.
Each log is marked with a number. These
numbers will help you identify the log when
installing. It is very important to install these
logs exactly as instructed. Do not modify logs.
Only use logs supplied with replace.
Open louvers, remove screen, unlock door
latches, and open glass door. See Removing/
Replacing Glass Door, steps 1 and 2, page
24. Install logs according to instructions for
replace model numbers.
1. Place log #1 (rear log) on top of grate.
Make sure notches in bottom of log t
over grate (see Figure 44, page 26).
2. Rest log #2 (front log) on pins on front part
of grate (see Figure 45, page 26).
3. Place log #3 (crossover log) onto rear and
front logs. Make sure it is seated properly
on smooth surface of front log and pin on
back log as shown in Figure 46, page 26.
4.
Place log #4 (right log) onto pin on right side of
front log as shown in Figure 47, page 26.
5. Place log #5 (base log) onto front left part of
grate making sure notches t over prongs
of grate. See Figure 48, page 26.
