Features and Components
B

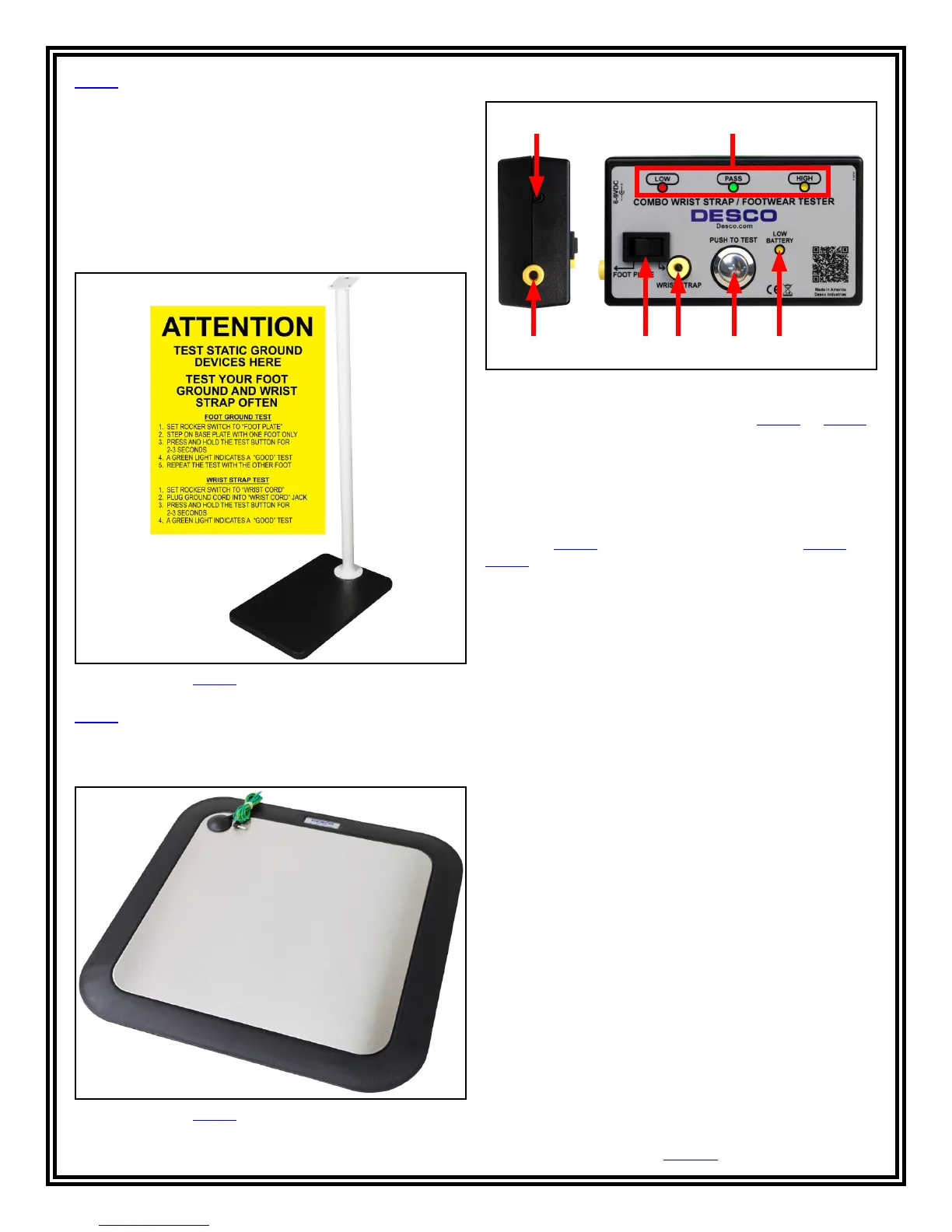

Figure 7. Combo Tester features and components
A
C
D E F G
A. 6-9VDC Power Jack: Connect the 98256 or 98257
power adapter (sold separately) here to power the
Combo Tester.
B. Test Result LEDs: Displays the test results.
C. Foot Plate Jack: Connect the banana plug terminal
of the foot plate cord here and the other end to the
pedestal (19282) or stainless steel foot plate (19283,
98273).
D. Rocker Switch: Toggle to the left when performing
a footwear test. Toggle to the right when performing a
wrist strap test.
E. Single-Wire Wrist Strap Jack: Insert your
single-wire wrist cord here to test your wrist strap.
F. Test Switch: Push down and hold your finger here
to perform a test.
G. Low Battery LED: Illuminates when the battery
power is low and needs to be replaced.
98254 STAND AND FOOT PLATE
1 Foot Plate
1 Pedestal
1 Foot Plate Cord, 5 inches
3 Button Head Screws, 1/4-20 x 3/4”
1 Allen Wrench, 5/32”
1 Flat Head Screw, 8-32 x 5/8”
1 Knurled Nut, 8-32
1 Black Cap
1 Poster
Figure 5. Desco 98254 Stand and Foot Plate
98273 STAINLESS STEEL FOOT PLATE
1 Stainless Steel Foot Plate
1 Foot Plate Cord, 6 feet
Figure 6. Desco 98273 Stainless Steel Foot Plate
