Pause July 2010

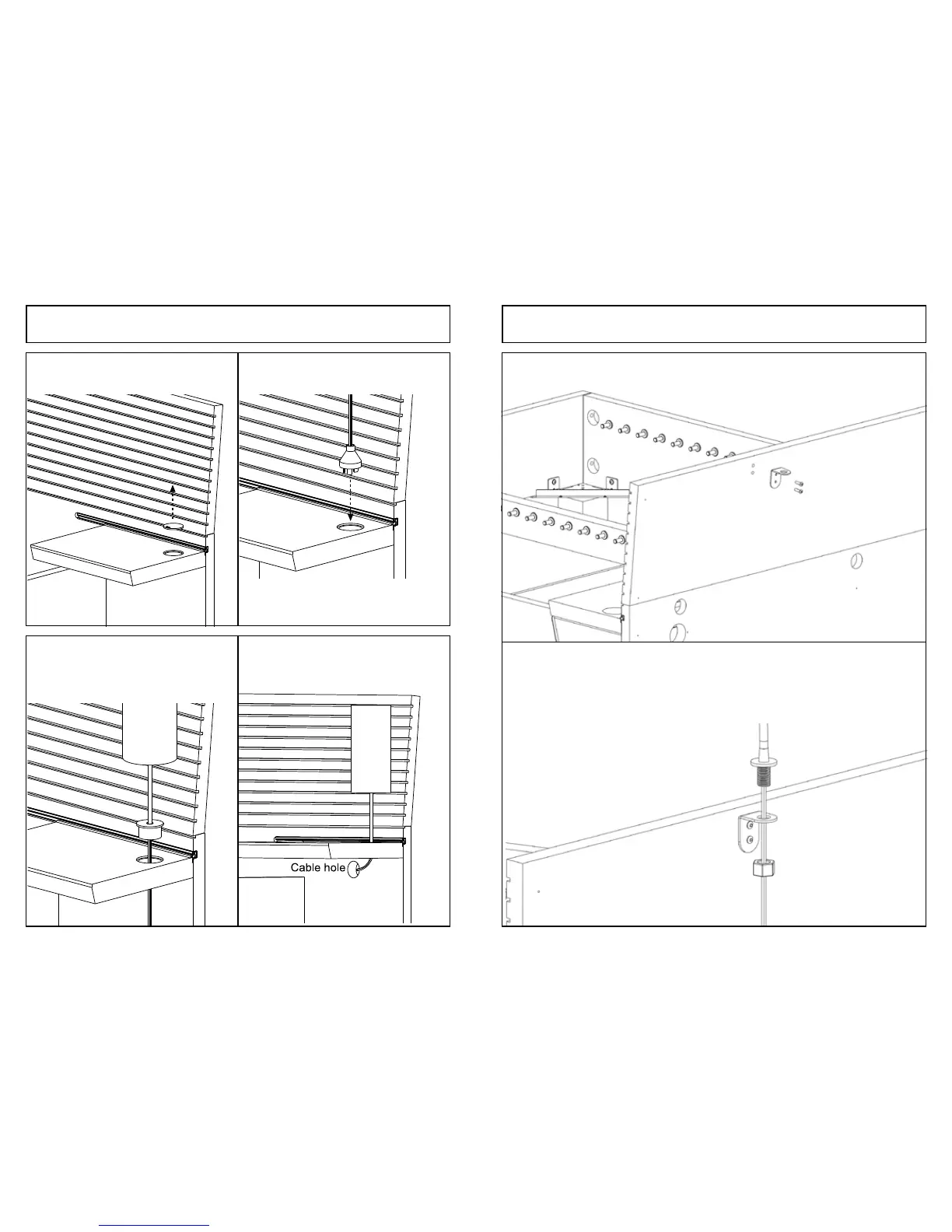

Side Lamp Installation
NOTE: If installing side lamp onto shelf
with drawer option, open drawer fully to
enable easy feeding of cables.
Task Lamp installation
1
2
Align holes on task lamp bracket with holes on the back face of the
headboard as shown. Fasten using M6 bolts and tighten with allen key.
Detach task lamp cable form the transformer box and remove the task lamp
nut. Feed the task lamp cable through the lamp bracket hole as shown.
Thread the lamp cord through the lamp bracket hole and place the task lamp
base inside the lamp bracket hole. Thread the nut onto the base and tighten
with a spanner. Plug the cable back into the transformer and plug into mains
power (240V).
3
1 2
Remove aluminium lamp hole cap
from shelf.
Feed the lamp plug through the
hole in the shelf.
Pull the cable through while
lowering the lamp into place.
Press the lamp base into the
shelf firmly to ensure a secure fit.
4
Feed the lamp plug and cable
through the cable hole in the
headboard rail.
