Warning: Before obtaining access to terminals, all supply circuits must be disconnected.

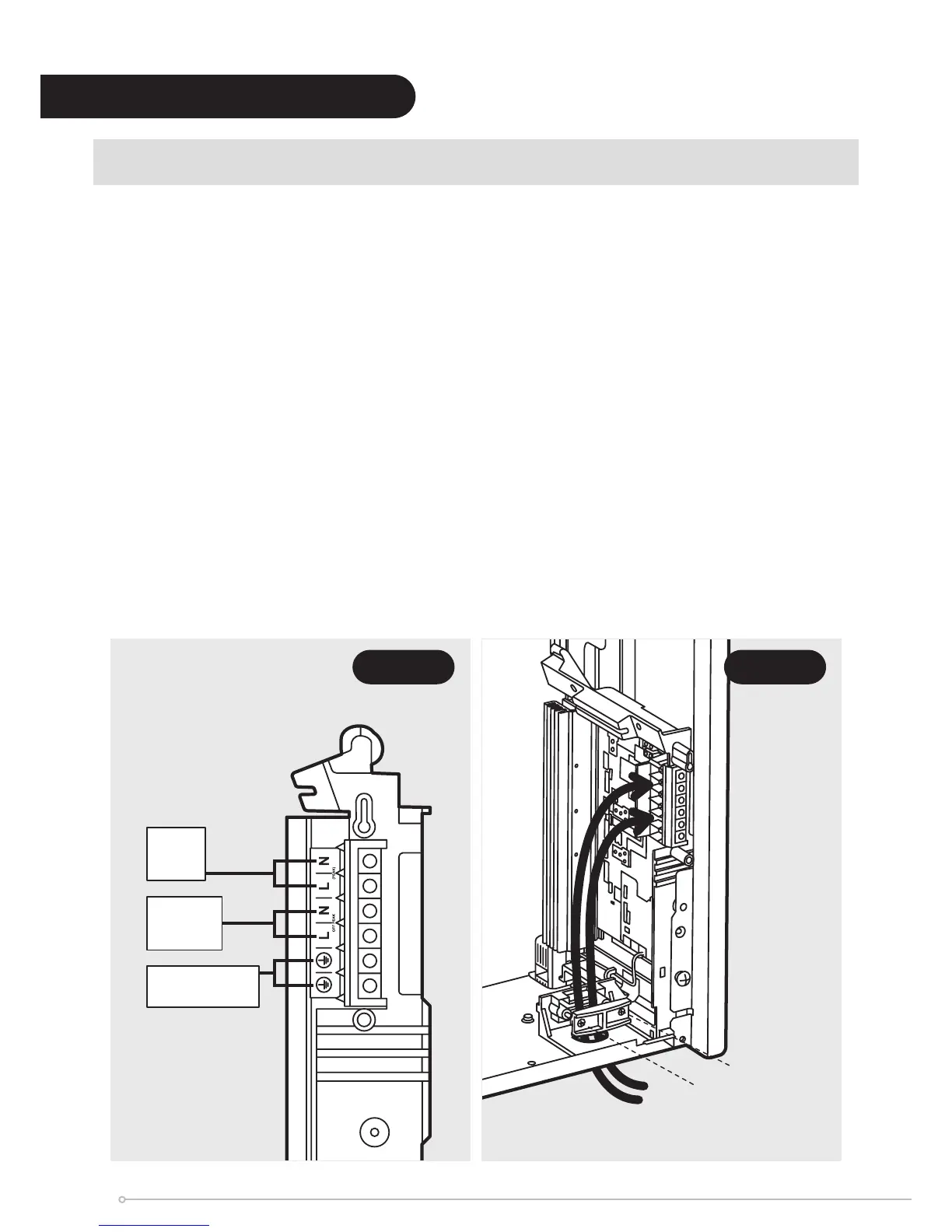

7. The heater leaves the factory congured to operate with two mains supplies, a 24 hour peak
supply and an off peak switched supply. (Fig. 7)
Not suitable for use on single supply.
Storage / Fan circuit
Fan Circuit = PEAK L
Storage Circuit = OFF-PEAK L
Fan Circuit = PEAK N
Storage Circuit = OFF-PEAK N
The earth wire should be connected into the earth terminal block marked E
WARNING - Terminal block maximum torque 0.5 Nm
Neutral
Live
(Off-Peak)
Neutral
Live
(Peak)
Earth
(Both Supplies)
Switched
Supply
Terminal Block
Mains
Cable
Tighten Screws
Electrical Connections
Fig. 8Fig. 7
10
