Designa DESE050 - Mounting and Spacing Guidelines

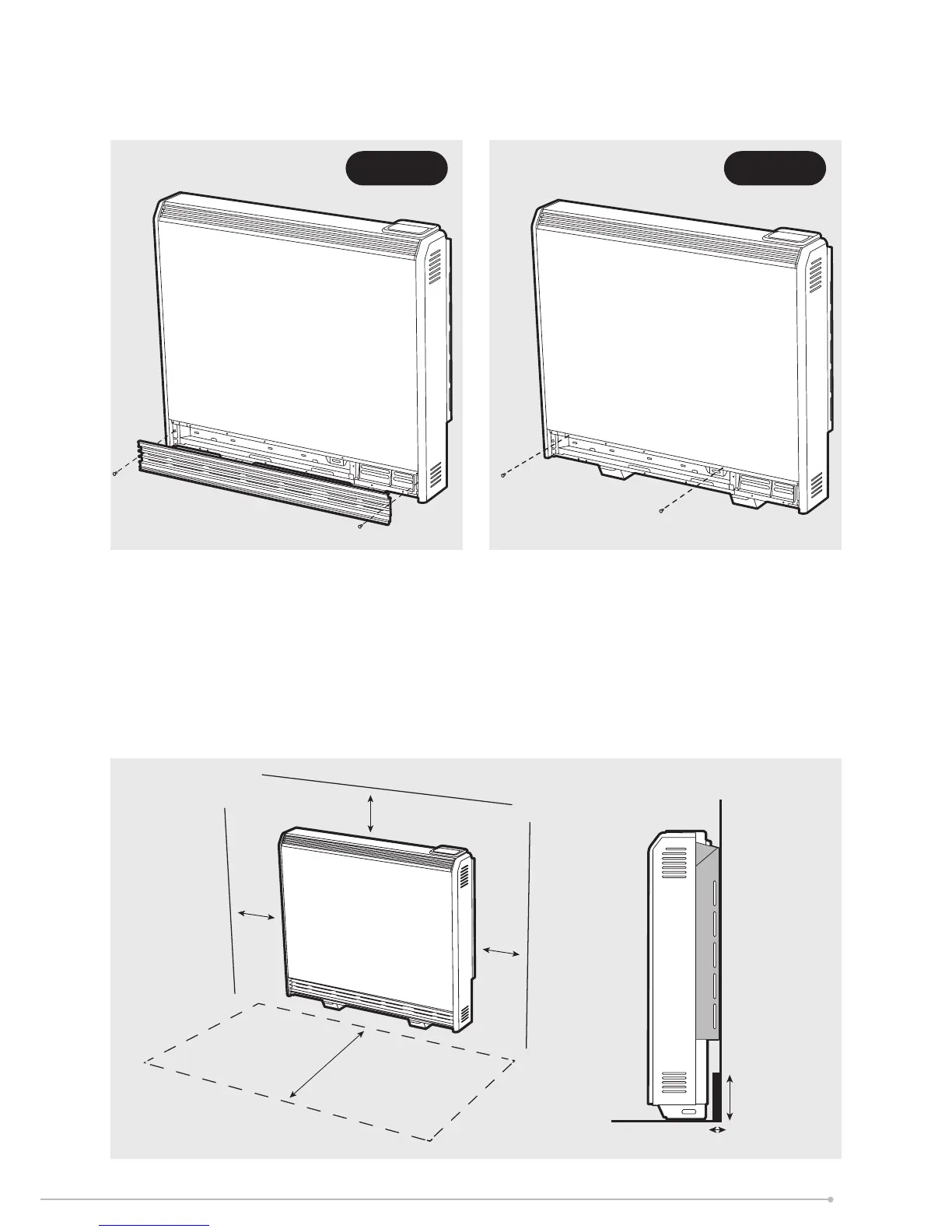

Do not place objects within 300mm of the front of the heater
and 150mm (min. 75mm) either side.
250 mm
300 mm
150 mm
Ensure the back of the heater is ush against the wall. If the skirting board is taller than
120mm and deeper than 15mm it should be cut to accommodate safe installation of the
heater.
120 mm
15 mm
150 mm
Fig. 2 Fig. 3
